Vimar Elvox System 4+1 intercom kit for single-family K62K0.01
VIW K62K0.01
8013406304605
Vimar Elvox Sound System intercom kit, a complete solution for 4+1 wire single-family systems.
The kit consists of:
-
1 wall-mounted panel with 1 button, in aluminum (code 8101/19)
-
1 audio electronic unit (cod. 930G)
-
1 wall-mounted intercom with two buttons, which cannot be combined with the monitor (cod. 62K0/2)
-
1 power supply unit for Sound System intercom (cod. 40102)
€77.43
Out of stock
Incoming
Vimar Elvox complete kit for single-family systems
The Vimar Elvox Intercom Kit is a ready-to-use solution for single-family intercom systems on 4+1 wire analog technology. Ideal for single homes, cottages and small studios, it guarantees clear communication, reliability over time and simple installation thanks to the components already included in the kit.
Kit components
Aluminum 1-button audio wall plate
The light gray audio wall plate is designed to be used as a control element in Vimar Elvox intercom systems. Equipped with a single button, it allows calling or controlling essential intercom functions.
Technical Specifications Audio wall plate
| Parameter | Value |
|---|---|
| Group | Communication technology |
| Class | Mounting element for intercom |
| Material | Aluminum |
| Color | Light gray |
| Mounting type | Wall-mounted |
| Number of buttons | 1 |

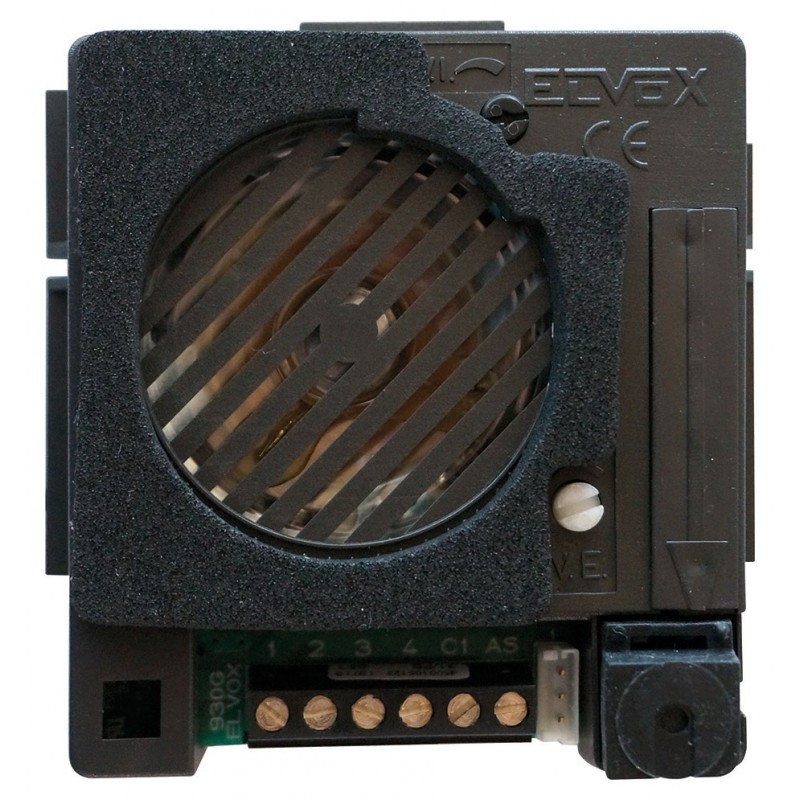

Sound System audio unit
The Vimar Elvox Sound System audio unit is designed for operation in 4+n electric doorman systems without conversation secrecy. It is an essential functional component to ensure clear and stable two-way communication between the external push-button panel and the internal intercom.
Technical Specifications Electronic audio unit
| Parameter | Value |
|---|---|
| System type | 4+n wires (without conversation secrecy) |
| Device type | Electronic audio unit |
| Group | Communication technology |
| Class | Intercom function module |
| Power supply | 12V AC (with M832 transformer) |
| Main function | Talking / Sounding |
| Amplifier | Dual |
| Call generator | Electronic |
| Microphone | Cabinet with extension cord |
| Color | Gray |
Wall-mounted intercom with two buttons, cannot be combined with the monitor
This white wall-mounted intercom, designed to work in Sound System audio intercom systems, is a simple and functional solution for single-family homes, duplexes, or condominium installations. Perfect for upgrading existing systems or new installations on 4+n multi-wire technology.
Technical Specifications Wall Mounted Intercom
| Parameter | Value |
|---|---|
| Compatibility | Vimar Elvox Sound System - 4+n wires |
| Features | Talk / listen / door opening |
| Communication | Full duplex |
| Function buttons | 2 (white) |
| Mounting type | Wall/desktop |
| Installation technique | Multi-wire system |
| Color | White |
| Group | Communication technology |
| Class | Intercom |
| Single call function | Yes |
| Group call function | Yes |
Power supply unit for Sound System intercom.
The power supply for Sound System is an essential component in Vimar Elvox analog intercom systems. With an output voltage of 12V AC, it ensures a stable and reliable supply of power for all connected devices, such as intercoms, pushbuttons, and audio units.
Technical Specifications Sound System intercom power supply unit
| Parameter | Value |
|---|---|
| Input voltage | 120/230V AC (50/60 Hz) |
| Output voltage | 12V AC |
| System technology | Multi-wire system |
| Installation | DIN rail |
| Occupied modules | 3 x 17.5 mm modules |
| Degree of protection | IP20 |
| Color | Gray |
| Application | Powering intercom devices |
| Class | Power supply for intercom/video system |
| Group | Communication technologies and systems |
Prodotto completo in tutto. Ottimo rapporto qualità/prezzo.
Citofono molto valido, economico ma con elettronica efficiente ed affidabile
Il prodotto, già acquistato in precedenza ha un ottimo rapporto qualità/prezzo, Il servizio di distribuzione offerto da Elettronew è eccellente.
Prodotto di ottima qualità perfettamente funzionante.
Materiale come da foto e mi è arrivato dopo solo 30 ore dal pagamento. Bravi
Data sheet
- KIT: Intercom Kits
- Model: Single-family house
- System: 5-Wire
