Elvox Sound System two-family intercom kit for 4+1 systems K62K0.02
VIW K62K0.02
8013406306739
Vimar Elvox Sound System intercom kit for two-family system consisting of:
-
1 wall-mounted push-button panel with 2 buttons, silver color, aluminum (code 8102)
-
1 audio electronic unit (code 930G)
-
2 Petrarca series wall-mounted intercoms, white color, with two white function buttons, cannot be combined with separate monitors (code 62K0)
-
1 Sound System intercom power supply unit (code 40102)
€116.30
Items Available: 24
: 20
Elvox Sound System Two-Family Intercom Kit
The Elvox Sound System 62K0+930G Kit is designed to create a simple and reliable duplex intercom system. It includes all the main components necessary for installation: external plate, electronic unit, two indoor stations and transformer, facilitating the work of the installer and ensuring full compatibility between the elements.
Specifications of individual kit components
Aluminum 2-button wall-mounted push-button panel
This 2-button wall-mounted audio plaque is designed for residential and condominium intercom applications, even in outdoor environments. It consists of a polycarbonate frame with rain protection and a painted aluminum protective plate, materials chosen to ensure weather resistance and durability.
Technical Specifications Pushbutton Panel
General Features
| Group | Communication Technologies / Intercom Systems |
| Class | Intercom mounting element |
| Type | Audio plate with 2 buttons |
| Color | Silver |
| Mounting | Wall-mounted |
Materials and Construction
| Plaque Material | Painted aluminum |
| Frame | Polycarbonate with rain protection |
| Buttons | 2, with stainless steel cap |
| Name tag access | From the rear |
Lighting and Power Supply
| Name tags | Backlit with LEDs |
| LED power supply | 12-15 V AC / 15 V DC (max 40 mW per LED) |

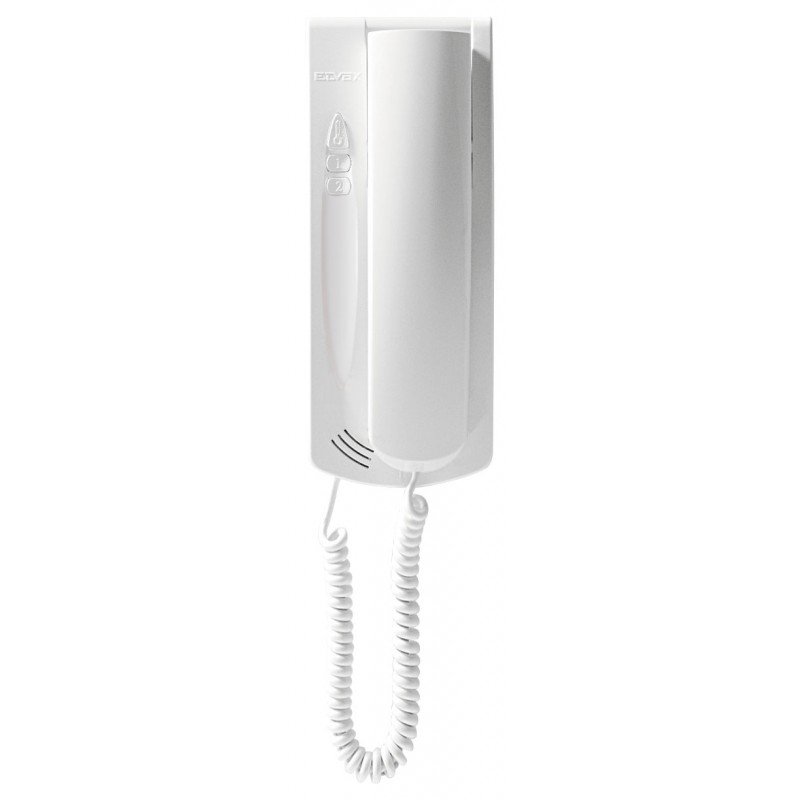

Petrarch series wall-mounted intercom two-button functions
This wall-mounted intercom is designed for Sound System-based audio systems, using multi-wire system technology. Full duplex communication enables simultaneous conversation in both directions, ensuring clarity and naturalness of dialogue.
Equipped with 2 white function keys, the device enables easy and intuitive handling of single and group calls. The structure is dedicated to audio, so it is not compatible with video monitor modules.
Technical Specifications Wall-mounted intercom
Technical Specifications.
| Compatible system | Sound System |
| Technology | Multi-wire system |
| Communication type | Full duplex |
| Number of keys | 2 |
| Key functions | Single call, Group call |
| General call | Not available |
Installation and Compatibility
| Mounting | Wall/desktop |
| Video compatibility | Cannot be combined with monitor |
| Color | White |

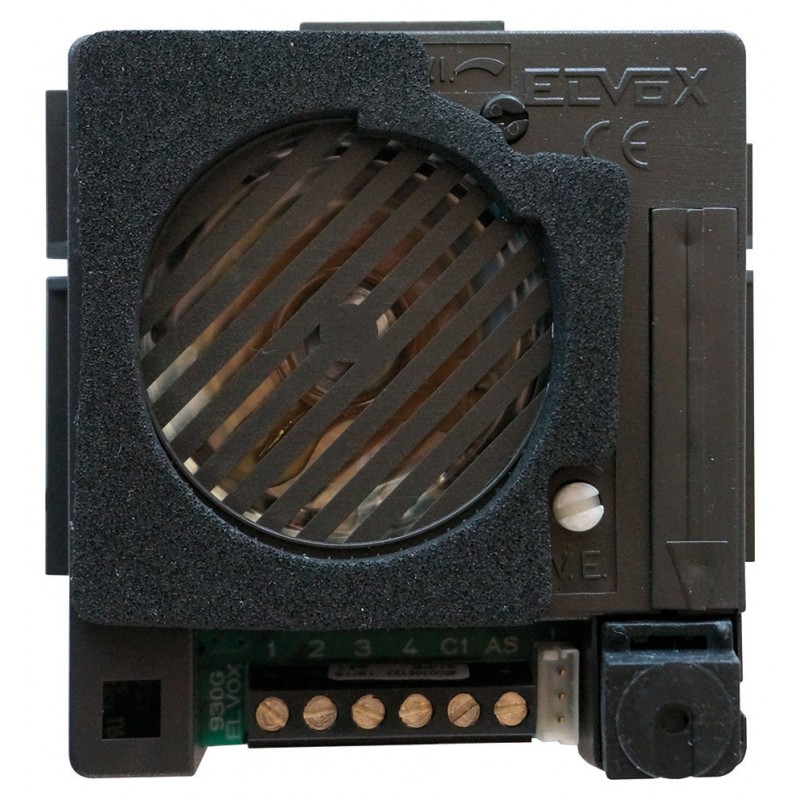

Sound Electronic Unit
This Sound System electronic unit is designed for traditional 4+n intercom systems (four common wires plus one per call), providing operation without conversation secrecy. It is a simple, reliable solution compatible with existing or new systems in residential or condominium settings.
Technical Specifications Audio Unit
General Features
| Compatible System | Sound System |
| System Type | 4+n (without conversation secrecy) |
| Installation technique | Other (not traditional multi-wire) |
| Functions | Talking / Ringing |
| Amplification | Dual audio amplifier |
| Call generator | Electronic |
| Microphone | Mobile with extension cord (electret) |
| Power supply | 12V~ (via M832 transformer) |
| Number of call buttons | 0 (modular interface) |
| Day/night function | No |
| Adjustable camera / PTZ / Teleloop | Not present |
| Color | Grey |

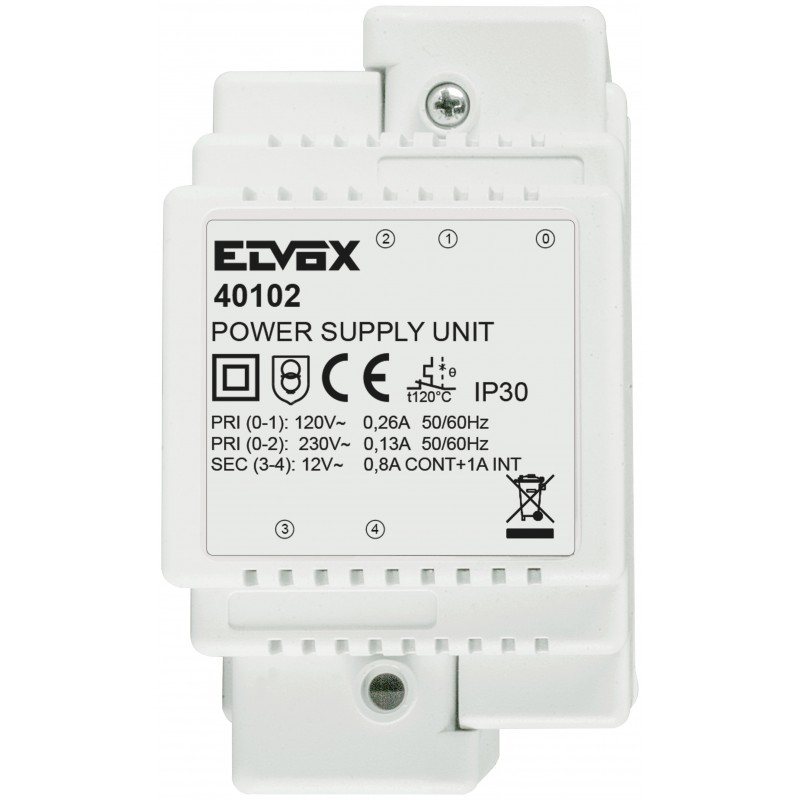

Sound System intercom power supply unit
This intercom power supply is specifically designed for Sound System systems, providing a stable and safe 12V output voltage that is essential for the proper operation of intercoms, electronic units, and audio buttons.
Technical Specifications Power Supply
General Characteristics
| Compatible System | Sound System |
| Group | Communication technologies/components |
| Class | Power supply for video/intercom system |
| Input voltage | 120/230 V~ - 50/60 Hz |
| Output voltage | 12 V~ |
| Output current | n.a. (consult data sheet) |
| System technology | Multiwire |
| Mounting | DIN rail (EN 60715 TH35) |
| Overall dimensions | 3 DIN modules (17.5 mm each) |
| Degree of protection | IP20 |
| Integrated door opener circuit | No |
| Command/analysis function | No |
| Service indicators | No |
| Programming lock | No |
come mi aspettavo , prodotto economico ma efficiente
consigliato
O produto era o que o que eu pretendia
Data sheet
- KIT: Intercom Kits
- Model: Two-family house
- System: 5-Wire
