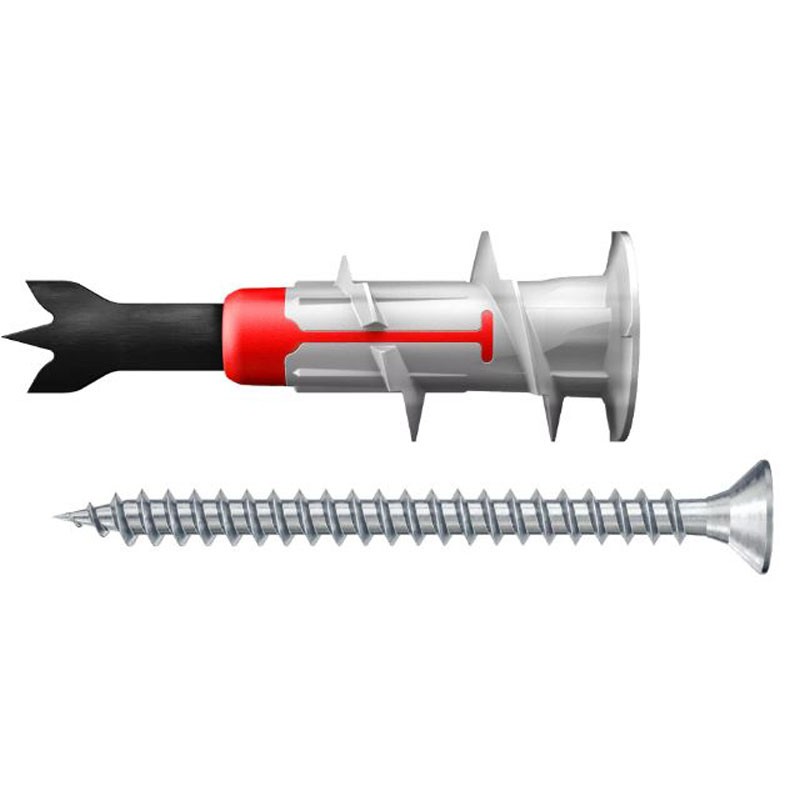

Fischer DUOBLADE S plasterboard anchors with screws 00545678
FIS 00545678
4048962323733
Fischer DUOBLADE S plasterboard anchors with screws:

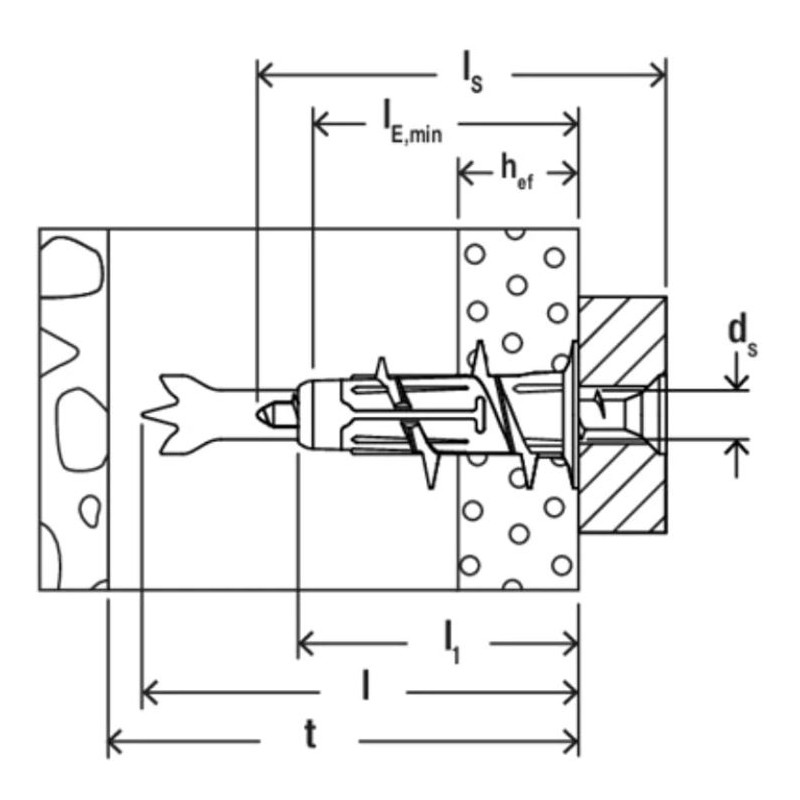

- Hole diameter (d0) 8 mm
- Anchor length (l) 44 mm
- Anchor length without drill bit (l1) 29 mm
- Wood and chipboard screws (ds) 4.5 x 40 mm
- Anchorage depth (hef) 9.5 - 25 mm
- Min. hole depth (h1) 50 mm
- Supporting materials: Plasterboard in sheet (single) and double sheet - Gypsum fibre - Lightweight concrete slabs
The self-drilling dowel for quick and easy installation on plasterboard panels and plasterboards.
The selling price is per piece, minimum quantity sold: box of 20 pieces
€0.57
€0.57
The minimum purchase order quantity for the product is 20.
Items Available: 760
€0.57
The minimum purchase order quantity for the product is 20.
Buy it within and receive it from Monday, 22 December
Advantages:
- The plug is ready to use: the metal tip is pre-installed and can be applied directly
- The tip is self-drilling and centring, enabling even rigid materials to be drilled through
- Reinforced helix ensures deep sheet perforation
- Anti-rotation blades ensure that the dowel is locked during screw installation
- PZ2 footprint is the same on the dowel as on the screw for shorter application time, making installation on the substrate faster
Applications:
Smoke detectors
Mirrors
Electrical installations
Lamps
Panels
Fixing accessories
Lighting
Mounting:

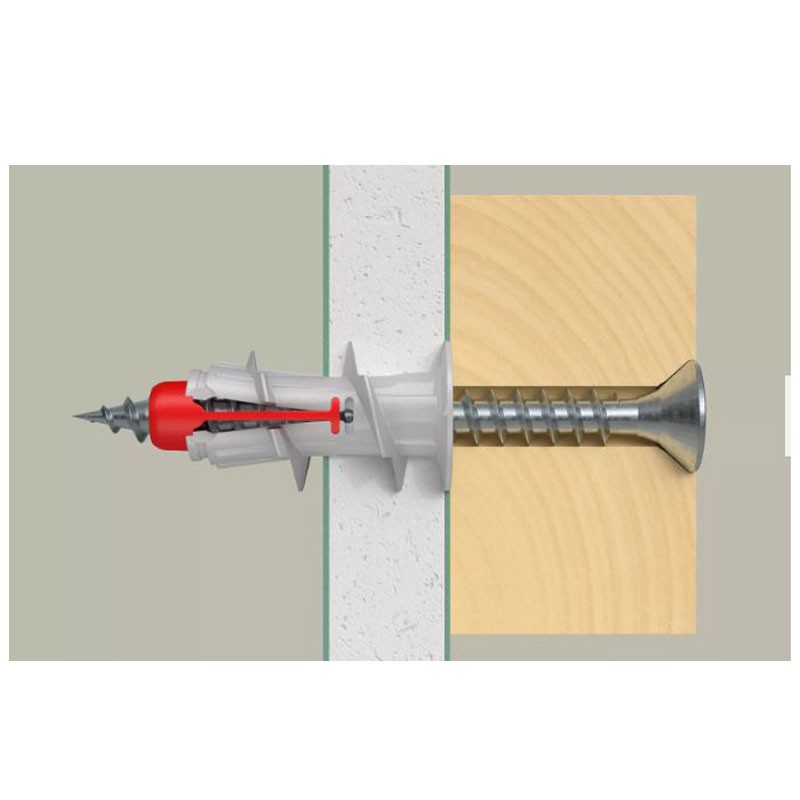

- DuoBlade is suitable for non-through installations
- Bi-material combination; the combination of nylon and fibreglass generates additional expansion and thus greater holding power
- Can be combined with wood, self-tapping or chipboard screws from 4.0 mm to 5.0 mm
- When inserting the screw, the drill bit is ejected by falling into the void behind it
- Drilling with an 8 mm drill bit when using chalk-fibre
Data sheet
- Type: Dowels
- Installation: Plasterboard
