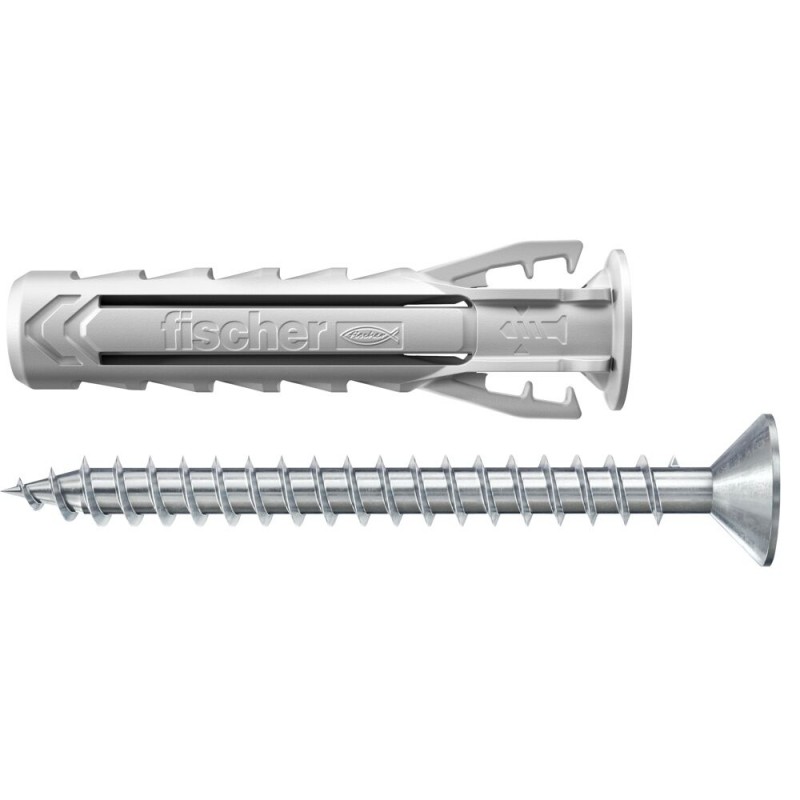

The fischer SX Plus nylon dowel, with its 4-sector expansion, ensures optimum force distribution in the building material and offers high loads. The geometry of the dowel ensures perception of the torque applied, clearly communicating when the screwing is complete. The side fins, once the dowel is inserted into the hole, close to hold the screw and the object from the first insertion, making it the ideal solution for ceiling fixings.



Strengths:

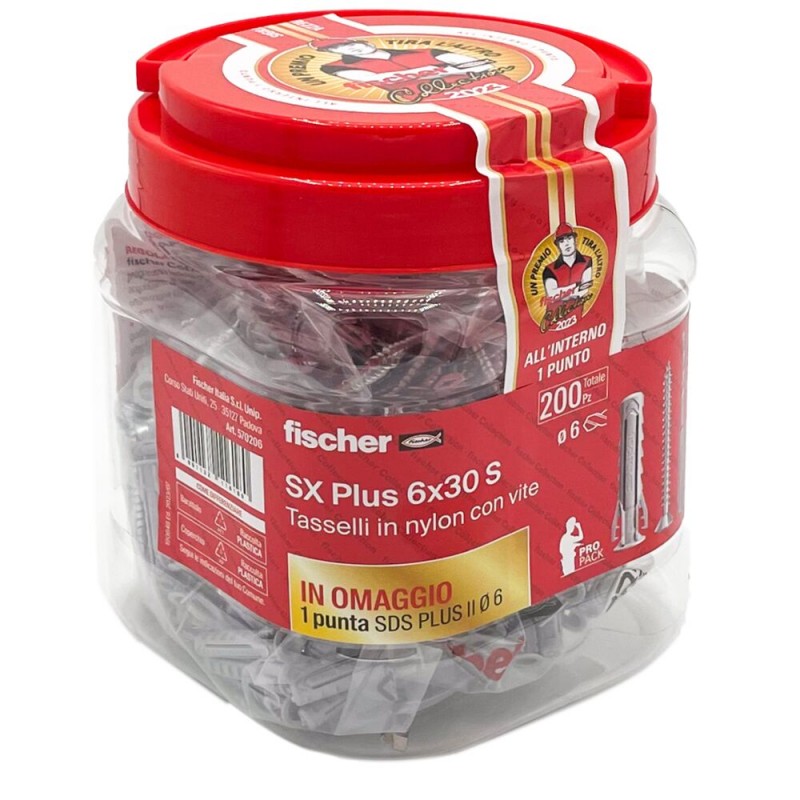

• Practical reusable plastic ProPack with screw-on cap that is easy to transport
• 4-sector expansion for high loads on all masonry.
• Optimized design for quick installation.
• New side tabs for easy ceiling fixings.
• Maximum torque control on each bracket.


Advantages:

• 4-sector expansion provides optimum force distribution in the material and offers high loads, especially on solid materials.
• The lugs close in the hole holding the screw and the object to be fastened. The user can have both hands free during installation: ideal for ceiling fixings.
• The under-head part of the dowel does not expand and transfer thrust to the substrate when tightening the screw: this helps prevent damage to tile and plaster
• The geometry of the tip ensures perception of the torque applied, clearly communicating when the screwing is complete.
• The collar prevents the dowel from slipping into the hole, allowing quick installation.



Applications:

• Chandeliers
• Furniture and wall units
• Shelves and shelves
• TV stand brackets
• Letterboxes
• Panels
• Radiators
• Bathroom mirrors and fixtures
• Electrical panels
• Collars and piping
• Alarm sensors
• Cable ducts
• Pipe fastener clips



Supporting materials:

• Concrete
• Solid brick
• Solid calcium silicate brick
• Semi-full brick (vertically perforated) made of brick
• Semi-full (vertically perforated) calcium silicate brick
• Autoclaved aerated concrete (cellular concrete)
• Lightweight concrete hollow block
• Concrete slab
• Natural stone
• Solid gypsum board




Installation:

• SX Plus is suitable for through and nonthrough installations.
• The innovative dowel design facilitates insertion into the hole with just a few hammer blows.
• Anti-rotation ribs prevent the dowel from twisting in the hole and ensure a secure grip on the substrate.
• When the dowel is inserted into the hole, the side flaps close inward. Slight pressure of the screw inside the dowel is enough for it to hold the object in place without dropping it.
• Suitable for wood and chipboard screws, as well as double-threaded screws

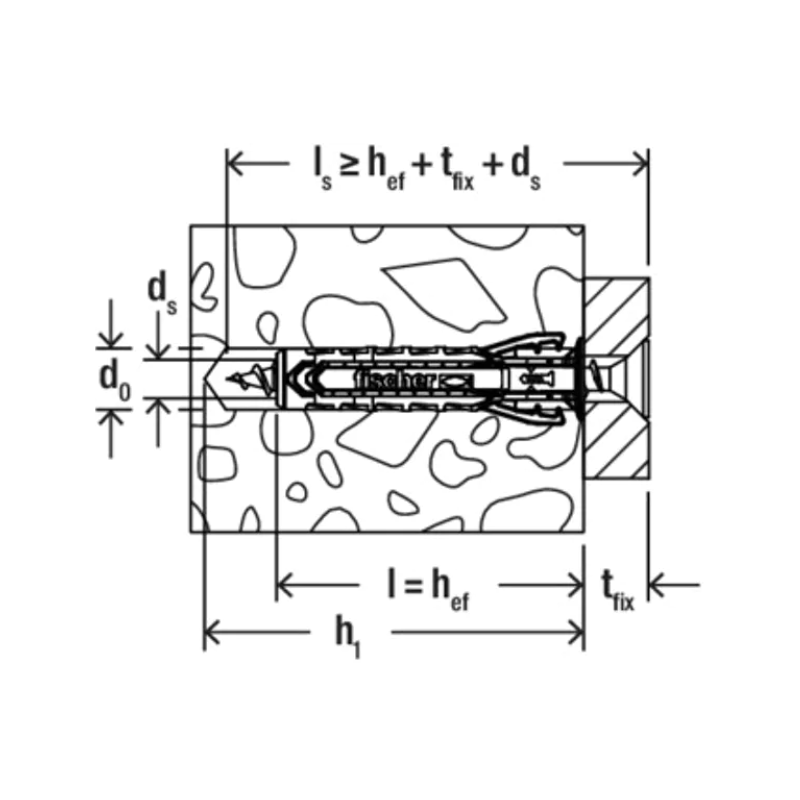

• For proper installation, the length of the screw should be at least equal to: length of the dowel + thickness of the object to be fastened + diameter of the screw
• On semi-flat brick substrates, it is recommended to drill only by rotation
