Fischer SXRL extended anchor with countersunk screw PZ3 50pcs 00540214
FIS 00540214
4048962277647
Fischer SXRL 8x80 WZ ls anchor with PZ3 countersunk screw, double expansion for solid and half-filled materials. Ideal for secure through installations, with the following features:
-

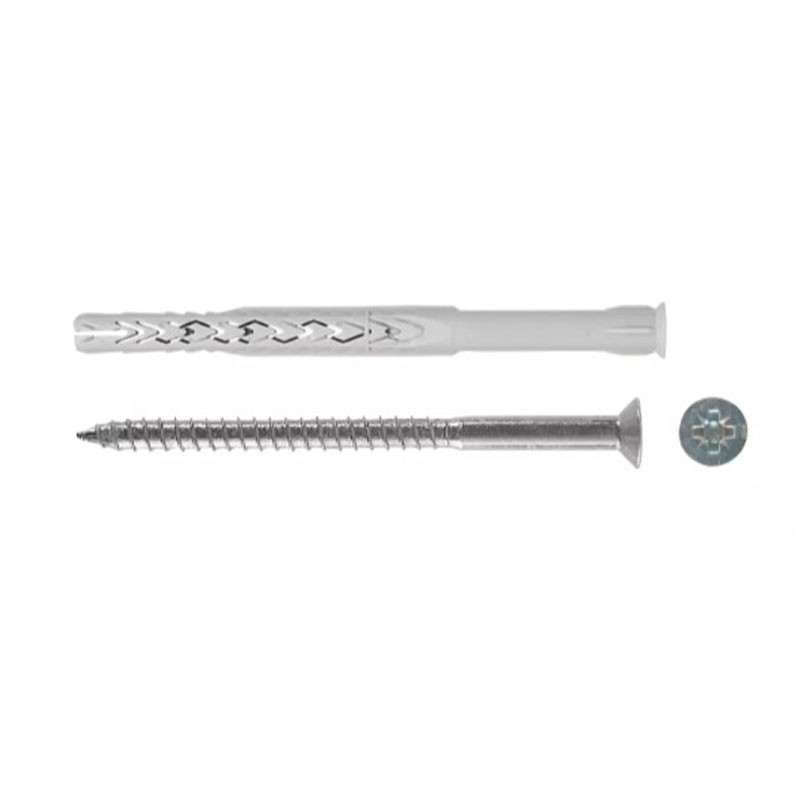

Nylon extended anchor with PZ3 galvanized screw included
-
Double expansion for solid, semi-filled and cellular concrete materials
-
Anti-rotation lugs for stable fastening
-
Broad compatibility with concrete, brick, stone and gypsum board
-
ETA-certified fixing for maximum safety
-
Ideal for facades, furniture, window frames, wall units and more
Sale price is per single piece.
€0.42
Items Available: 131
: 50
Fischer universal anchor for strong and secure installations
High-performance extended anchor designed for through-hole installations on a wide range of building materials. Galvanized screw with Pozidrive countersunk head (PZ3) included ensures stable and durable fastening, even under high load conditions.
Dual expansion stage: maximum versatility

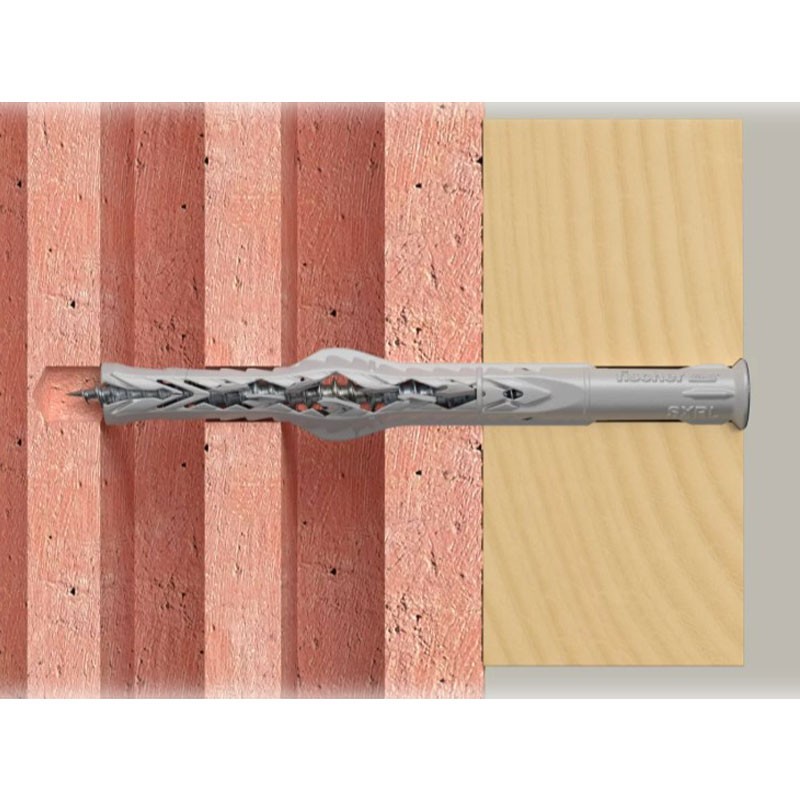

Thanks to its special geometry, the SXRL anchor features a dual-stage expansion system that is suitable for both solid materials such as brick bricks and concrete and semi-full or cellular materials such as lightened blocks and aerated concrete. Anchoring forces are evenly distributed along the walls of the hole, ensuring an exceptional hold.
Secure and rotation-free fixing
The anchor has four anti-rotation fins at the base and two extended fins along the expanding body, which prevent any movement during screwing. This system ensures simple, fast and reliable installation.
Wide applications and materials supported
The Fischer SXRL 8x80 WZ ls is ideal for installing:
-
Wood or metal facades and substructures
-
Hanging furniture, wardrobes and kitchen cabinets
-
Window frames, doors and gates
-
Consoles and TV stands
Can be used on: concrete (≥ C12/15), solid and half-filled brick or calcium silicate bricks, concrete blocks, compacted natural stone, and gypsum board.
Technical Specifications Dowel with countersunk head screw
| Hole diameter (d₀) | 8 mm |
|---|---|
| Dowel length | 80 mm |
| Max fixable thickness (t_fix) | 10 mm |
| Tool attachment | PZ3 (Pozidrive) |
| Dowel material | Nylon |
| Screw material | Galvanized steel |
| Screw type | Flat countersunk head with PZ impression |
| Certification | ETA for use on various materials |
Data sheet
- Type: Dowels
