Heat shrinkable tubing Cellpack low thickness of the wall in the bar 127192
CEL 457282
4010311200569

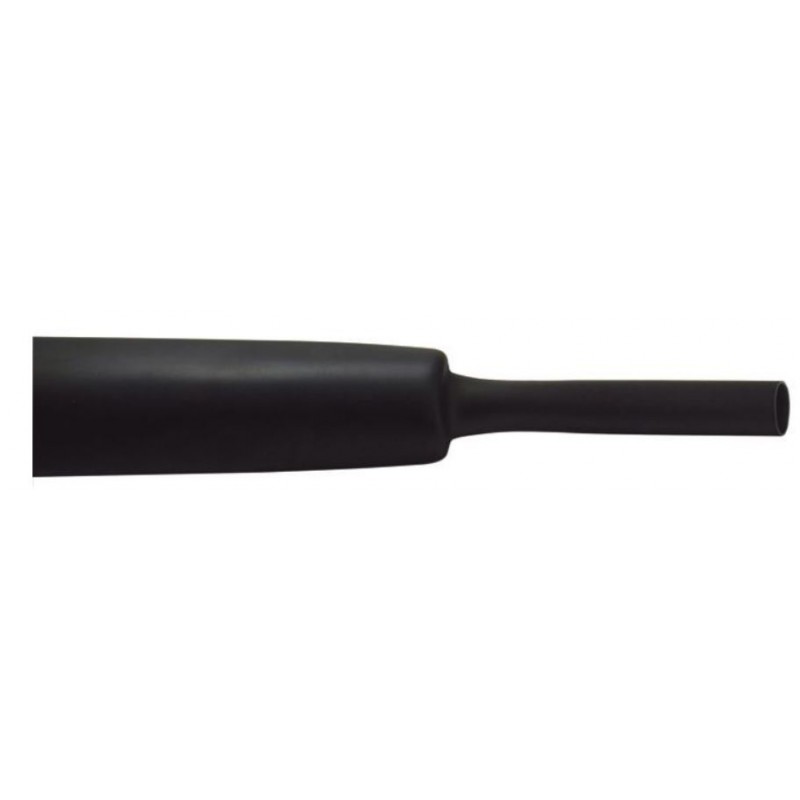

Cellpack Heat Shrinkable Tubing Type SR1F 12.7-6.4 low wall thickness, shrink ratio 2 : 1 without adhesive:
- Test standards UL E172094, MIL-I-23053/5 Class 1
- Material Cross-linked polyolefin, Lead- and cadmium-free
- Length 1 metre
- Colour black
- Inner diameter before shrinkage (inch) 1/2
- Inner diameter before shrinkage (mm) 12.7 mm
- Inner diameter after shrinkage (mm) 6.4 mm
- Recovered wall thickness 0.64 mm
- Elongation at break 350
- Elongation at break (associated standard) ASTM D638
- Tensile strength at break 13 MPa
- Tensile strength at break (associated standard) ASTM D638
€2.93
Items Available: 142
: 22
Heat shrinkable tubing type SR1F is thin-walled, without thermoplastic adhesive, with a shrink ratio of 2:1. Typical applications are protection of cables against chemical influences and good mechanical protection.
Properties:
- Thin-walled
- Without thermoplastic adhesive
- Labelable
- Resistant to chemicals
- UV-stabilised
- Non-corrosive
- Free of substances that inhibit paint wetting
- Melt-resistant
- High tensile strength
- Excellent electrical properties
- High tensile strength
- Resistant to cold flow (heat stable)
- High flexibility, Self-extinguishing (except transparent model)
Applications:
- Insulation
- Grouping
- Labelling
- Corrosion protection
- Mechanical protection
Other technical characteristics:
- Longitudinal shrinkage +/- 10%.
- Longitudinal shrinkage (associated standard) ASTM D2671
- Shrinkage ratio 2:1
- Shrinkage ratio (associated standard) IEC 811-1-1
- Operating temperature range min -55°C
- Operating temperature range max 135 °C
- Operating temperature range (associated standard) IEC 216
- Shrinkage temperature > 90°C
- Self-extinguishing combustion behaviour
- Burning behaviour (associated standard) UL224
- Low temperature flexibility -55°C
- Low temperature flexibility (associated standard) ASTM D2671
- Specific volume resistivity 10¹⁴Ω cm
- Specific volume resistivity (associated standard) ASTM D257
- Dielectric Strength 20 kV/mm
- Dielectric Strength (associated standard) ASTM D2671
- Corrosion None - corrosion (associated standard) ASTM D2671
- Resistance to fungi and decay No growth
- Resistance to fungi and decay (associated standard) AMS-DTL-7444
There are no reviews
Data sheet
- Diameter: 12,7/6,4 mm
- Type: Heat-shrink tubing
- Length: 1.2 meters
