Other technical features:

• Hole diameter: 12mm
• Minimum hole depth: h0 ≥ 65
• Anchor length: 56mm
• Anchor depth: 45mm
• Molded-in eyelet: M8
• Tightening torque: 20Nm

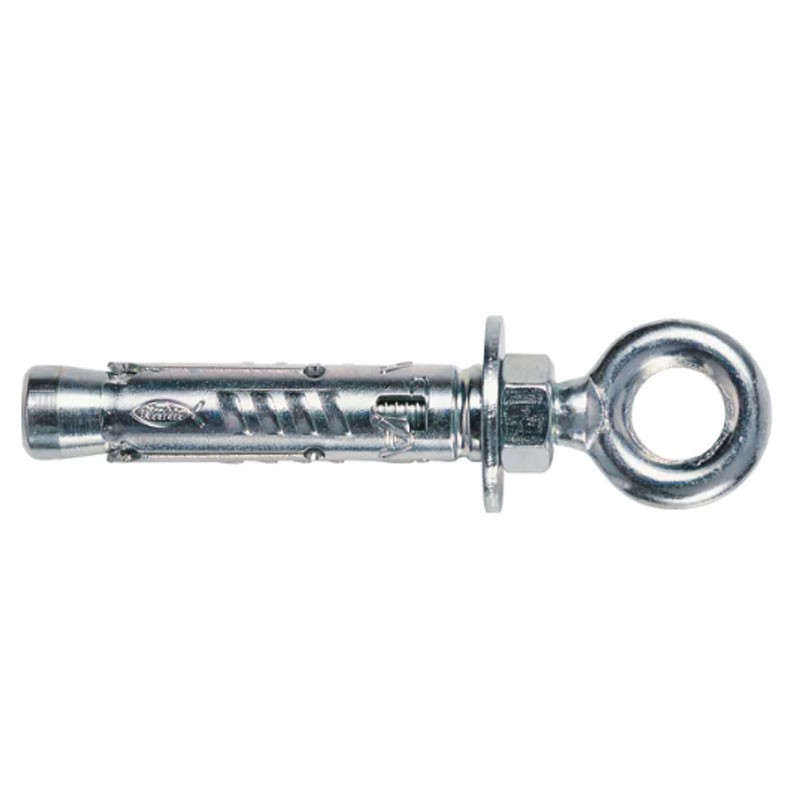

Fischer TA M is designed so that it can be used in so many types of installations, from metal constructions to machinery, from cable gangways to facades, fall protection devices, gates and stairs. Due to its small size, it reduces the effort for installation and allows it to be used even in tight spaces.

Fischer TA M is perfect for non-pass-through installations and allows quick and easy installation in virtually any type of application. During installation, the cone expands the dowel body against the hole wall.

Advantages:

• Certified for installations with concrete from class C20/25 up to C50/60
• Can also be used on compacted natural stone
• Optimized geometry to reduce installation effort and allow fixing even on narrower spaces
• Numerous possible applications: fall protection devices, gates, stairs, facades, metal constructions, cable trays, etc...
• Internally threaded
• Easy to install
• For fastenings in non-cracked concrete
• The optimized geometry minimizes the effort for installation and allows it to be used in extremely tight spaces. This allows easy installation for the user
• Internal metric threading allows the use of standard screws and threaded rods for an ideal fit to the application
• The three-sector expanding body causes even load distribution, resulting in reduced spacing and edge distances. This makes the TA M extremely flexible



Applications: Cable catwalks - Spaced installations

Approved for: C20/25 to C50/60 concrete, non-cracked

Also suitable for: C12/15 concrete - Natural stone with compacted structure

Installation:

• TA M is suitable for non-through installation
• When torque is applied, the cone is drawn into the anchor body, which expands against the hole wall
• For proper installation, the eyelet must be countered with washer and nut
• To determine the length of the screw ls: Screw length ls =Length of fastener+ Thickness of object to be fastened tfix+ Thickness of washer
