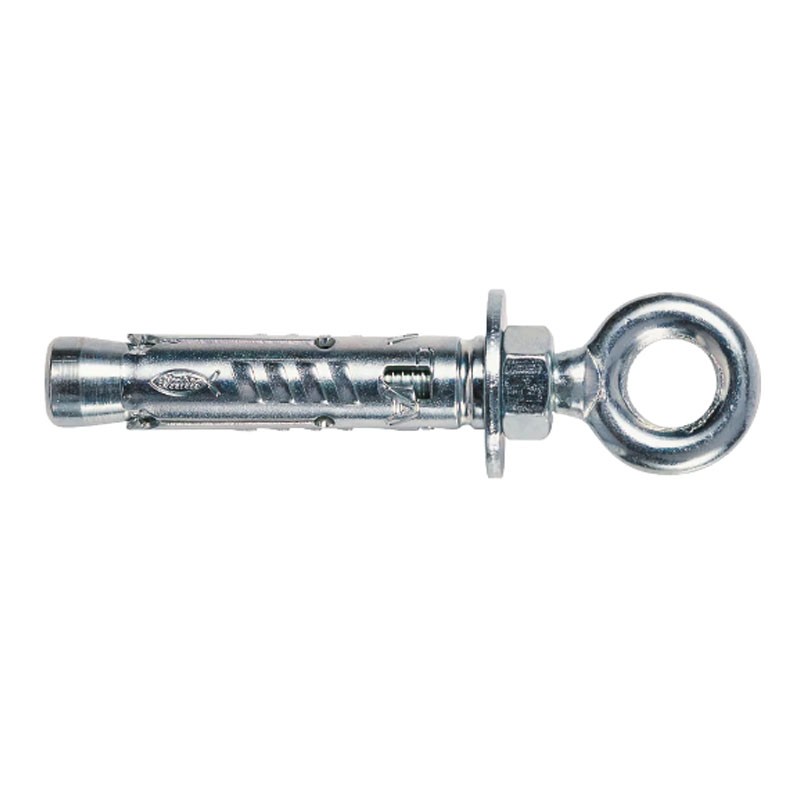

It is an anchor for non-cracked concrete with Closed Eyelet. Fischer TA M is designed so that it can be used in so many types of installations, from metal constructions to machinery, from cable gangways to facades, fall protection devices, gates and stairs. Due to its small size, it reduces the effort for installation and allows it to be used even in tight spaces. Fischer TA M is perfect for non-pass-through installations and allows quick and easy installation in virtually any type of application. During installation, the cone expands the dowel body against the hole wall.




Advantages:

• Optimized geometry minimizes installation effort and allows use in extremely tight spaces. This allows for easy installation for the user
• The three-sector expanding body causes uniform load distribution and thus reduced spacing and edge distances. This makes the TA M extremely flexible
• Internal metric threading allows the use of standard screws and threaded rods for an ideal fit to the application
• Red plastic cap protects the thread from drilling dust, thus ensuring proper function
• Applications: cable trays, spaced installations
• Approved for: concrete C20/25 to C50/60, non-cracked
• Also suitable for: concrete C12/15, natural stone with compacted structure




Installation:

• TA M is suitable for non-through installation
• When torque is applied, the cone is drawn into the anchor body, which expands against the hole wall
• For proper installation, the eyebolt must be countered with washer and nut
• To determine the length of the screw ls: Screw length ls =Length of fastener+ Thickness of object to be fastened tfix+ Thickness of washer
