Fischer brass female dowel with metric internal thread 8X30 POM8 00501445
FIS 00501445
8001132014455

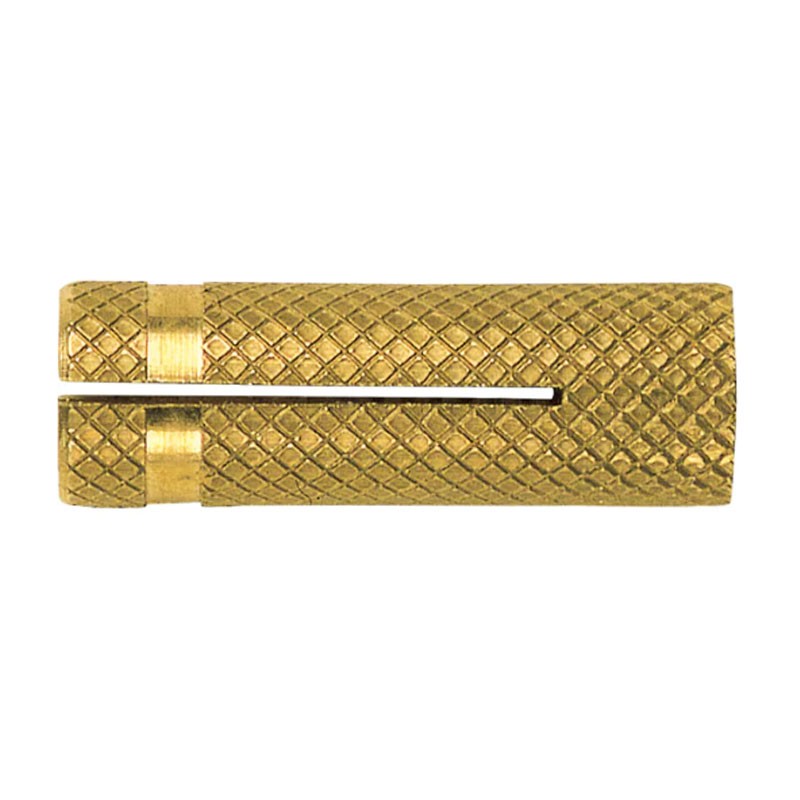

Fischer PO M 8 female brass plug with metric internal thread, hole diameter 10 mm, fixing length 30 mm, M8 internal thread.
The sale price refers to the purchase of a single piece.
Pack of 100 pieces.
€0.40
Items Available: 8491
: 800
Advantages:
- Compact design of brass fastener reduces drilling depth, this ensures fast installation
- The knurled structure of the surface of the OP prevents the fastener from rotating in the hole. This increases the safety of the installation
- Internal metric threading allows the use of metric threaded screws or threaded rods, for flush surface removal and reuse of the fastener point. This provides great flexibility

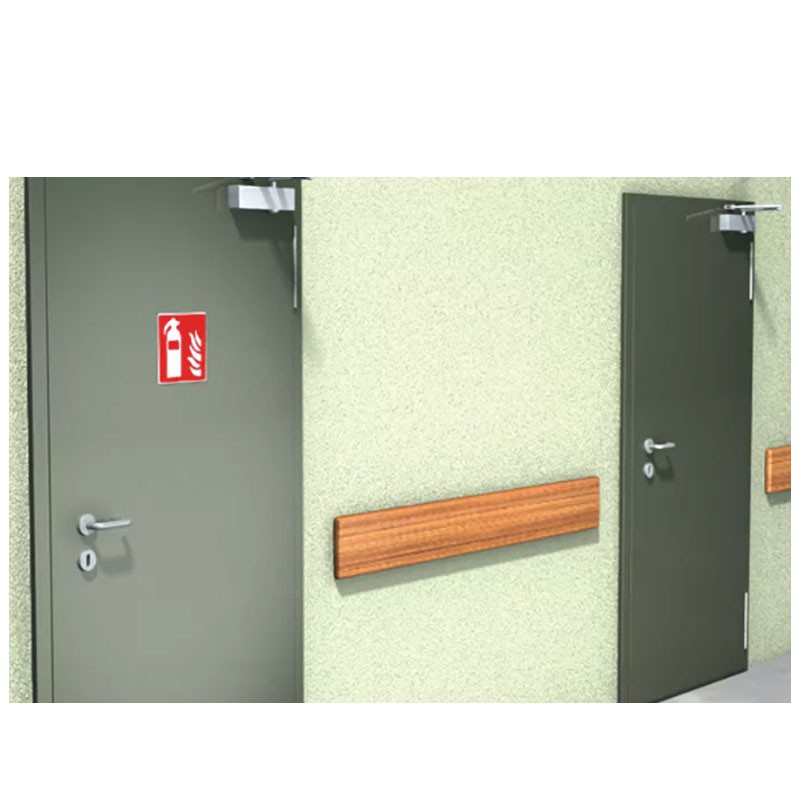

Applications:
- Basement shelves
- Lightweight wood or metal substructures
- Control boxes
- Curtain rails
Supporting materials:
- Concrete
- Solid brick
- Solid calcium silicate brick
- Natural stone with compact structure

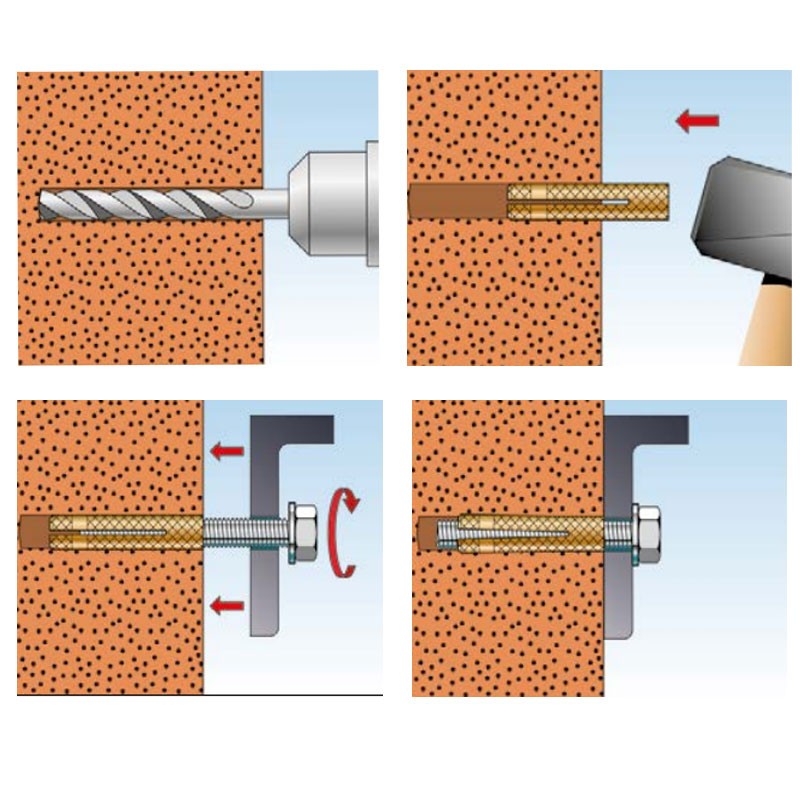

Installation:
- PO is suitable for non-pass-through installations
- Screwing in the metric screw causes the brass fastener to expand, anchoring it securely in the substrate
- Calculate life length for a flush surface installation: length of fastener plus thickness of object to be fastened = minimum screw length
- Suitable for metric screws and threaded rods
- Screw the screw into the brass fastener to make it expand slightly before installation
There are no reviews
Data sheet
- Type: Dowels
