Fischer brass female dowel with metric internal thread 10X35 POM10 00501448
FIS 00501448
8001132014486

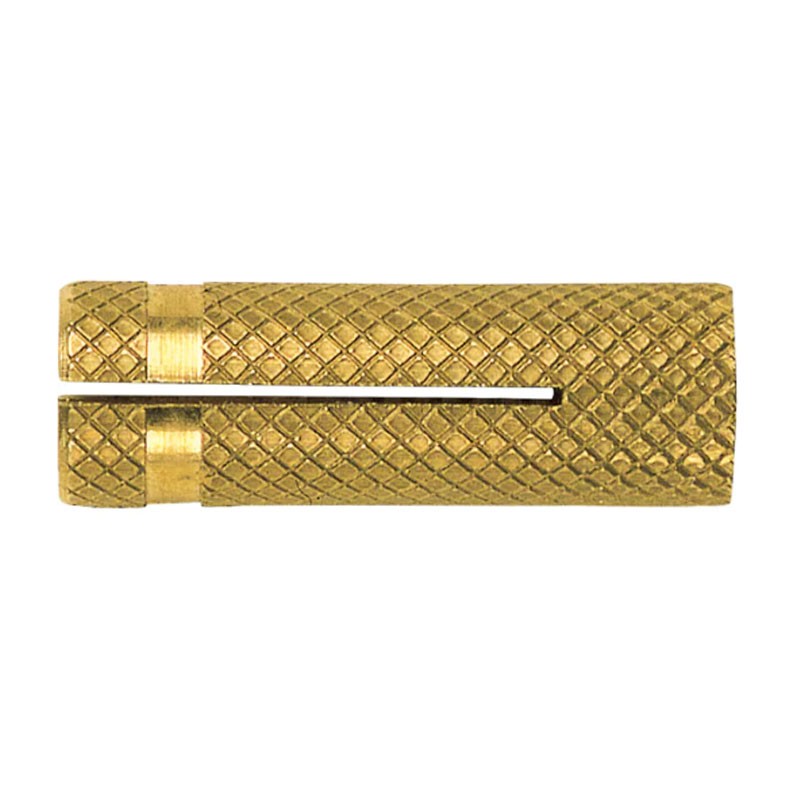

Fischer PO M 10 brass female anchor with metric internal thread, hole diameter 12mm, fixing length 35mm, minimum hole depth 45mm, M10 internal thread, minimum screwing depth 35mm.
Pack of 100 pieces.
€0.74
Items Available: 3536
: 500
Advantages:
- Compact design of brass fastener reduces drilling depth, this ensures fast installation.
- The knurled structure of the surface of the OP prevents the fastener from rotating in the hole. This increases the safety of the installation.
- Internal metric threading allows the use of metric threaded screws or threaded rods, for flush surface removal and reuse of the fastener point. This provides great flexibility.
Applications:
- Basement shelves
- Lightweight wood or metal substructures
- Control boxes
- Curtain rails
Supporting materials:
- Concrete
- Solid brick
- Calcium silicate solid brick
- Natural stone with compact structure
Installation:
- PO is suitable for non-pass-through installations
- Screwing in the metric screw causes the brass fastener to expand, anchoring it securely in the substrate
- Calculate life length for a flush surface installation: length of fastener plus thickness of object to be fastened = minimum screw length
- Suitable for metric screws and threaded rods
- Screw the screw into the brass fastener to make it expand slightly before installation
There are no reviews
Data sheet
- Type: Dowels
