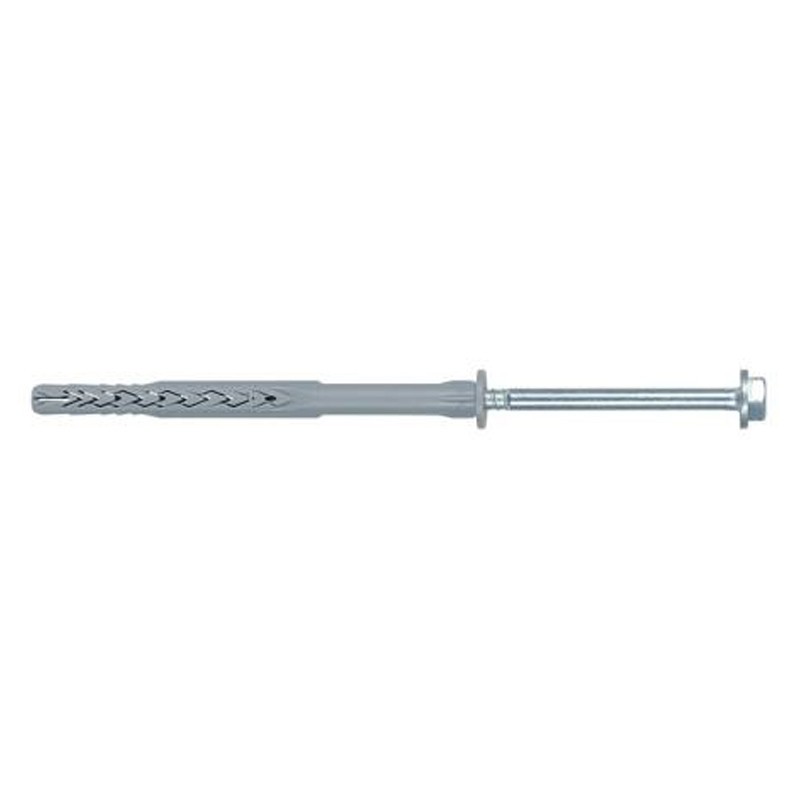

Fischer SXRL 10x80 mm extended anchor with TX40 flange screw 00522719
FIS 00522719
4048962180947
Fischer SXRL extended anchor with TX40 flanged screw for metal structures. Approved for cellular concrete, bricks and hollow blocks, with the following characteristics:
-
Hole diameter: 10 mm
-
Plug length: 80 mm
-
Screw type: Flanged, hexagonal head, TX40 footprint
-
Plug material: High-strength nylon
-
Fixing: Through-hole
-
Installation depth: 50-70-90 mm
Selling price is per single piece.
€0.79
Items Available: 100
: 90
Universal and Certified Anchor for Professional Fasteners
High-performance extended anchor designed for fastening metal structures to a wide range of building materials. With CE marking and ETA certification, it ensures reliable and durable anchorage even on difficult substrates such as aerated concrete or hollow blocks.
Flanged Screw and Evolved Expansion System
The anchor has a galvanized flanged screw with a hex head (SW13) and Torx TX40 imprint, pre-mounted for easy installation. The double-expansion system evenly distributes forces across the material, improving the seal and reducing the risk of damage to the substrate.
Triple Laying Depth for Maximum Flexibility
One of the distinguishing features of this dowel is the choice of three laying depths (50, 70 and 90 mm), adapting perfectly to the amount of load and type of material. This makes it extremely versatile for a wide range of applications.
Total Anti-rotation: Safe and Precise Assembly
With fins on the collar and additional fins on the expanding body, the dowel completely prevents rotation during screwing, making installation easier, faster and safer, even on porous or uneven materials.
Ideal Applications
-
Facades and roof substructures
-
False ceilings and metal frames
-
Kitchen cabinets, wardrobes and hanging furniture
-
Doors, gates, window frames
-
Wooden frames and TV consoles
Certified Supporting Materials
-
Concrete ≥ C12/15
-
Aerated concrete
-
Solid and semi-filled brick (brick and calcium silicate)
-
Hollow blocks made of normal or lightweight concrete
-
Blocks with thermal insulation
Also suitable for:
-
Compact natural stone
-
Solid gypsum panels
There are no reviews
Data sheet
- Type: Dowels
