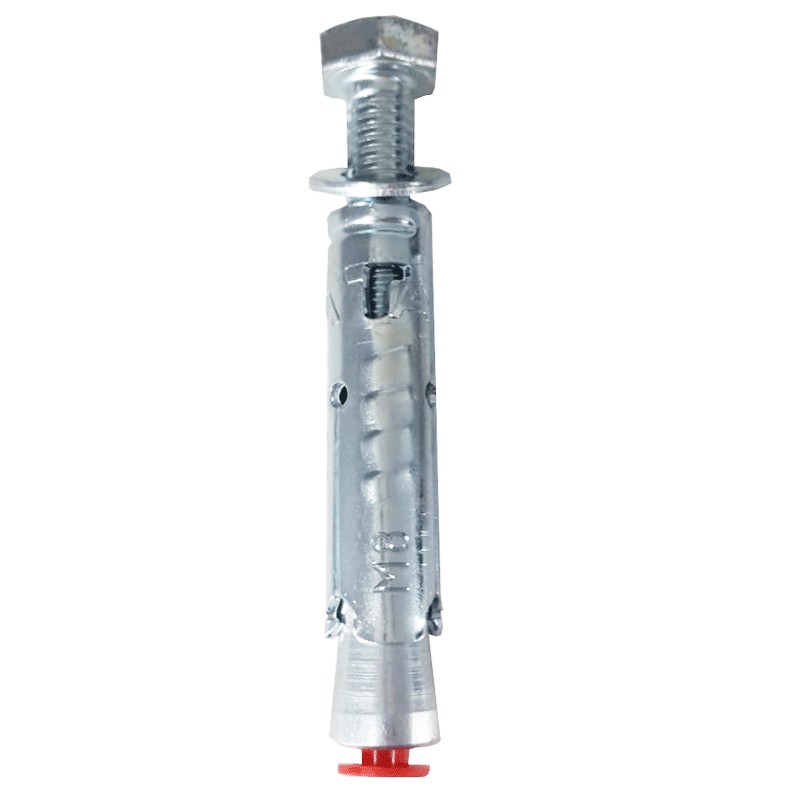

Characteristics:

• Fixable thickness max - t fix - [mm] 10
• Drilling depth min - h1 - [mm]: 70
• Tightening key - SW - [mm]: 13
• Screw - Ø x Length - : M 8 x 65
• Washer (outer diameter x thickness): 16 x 1.6
• Hole diameter - d0 - [mm]: 12
• Fixing length - l - [mm]: 56



Approved for:

Concrete C20/25 to C50/60, non-cracked

Also suitable for:

• Concrete C12/15
• Natural stone with compact structure



Advantages:

• The optimized geometry minimizes the effort for installation and allows its use in extremely confined spaces. This allows easy installation for the user.
• The body with three expanding sectors causes an even distribution of the load and thus reduced centre distances and edge distances. This makes the TAM extremely flexible.
• The internal metric thread allows the use of standard screws and threaded rods for an ideal fit to the application.
• The red plastic cap protects the thread from drilling dust, thus ensuring proper functioning.
• The TAM (anchor only or with screw) is also available in A2 stainless steel (not certified).



Applications:

• Metal constructions
• Handrail
• Console
• Steps
• Walkways for cables
• Machinery
• Stairs
• Gates
• Facades
• Spaced installations



Operation:

• The TAM is suitable for non-through installation.
• When torque is applied, the cone is drawn into the anchor body, which expands against the wall of the hole.
• For correct installation, the TA M non-through-hole anchor must rest on the element to be fastened.

To determine the length of the screw ls:

• Screw length ls =
• Fixing length
• + Thickness of fastener tfix
• + Washer thickness
