Best seller

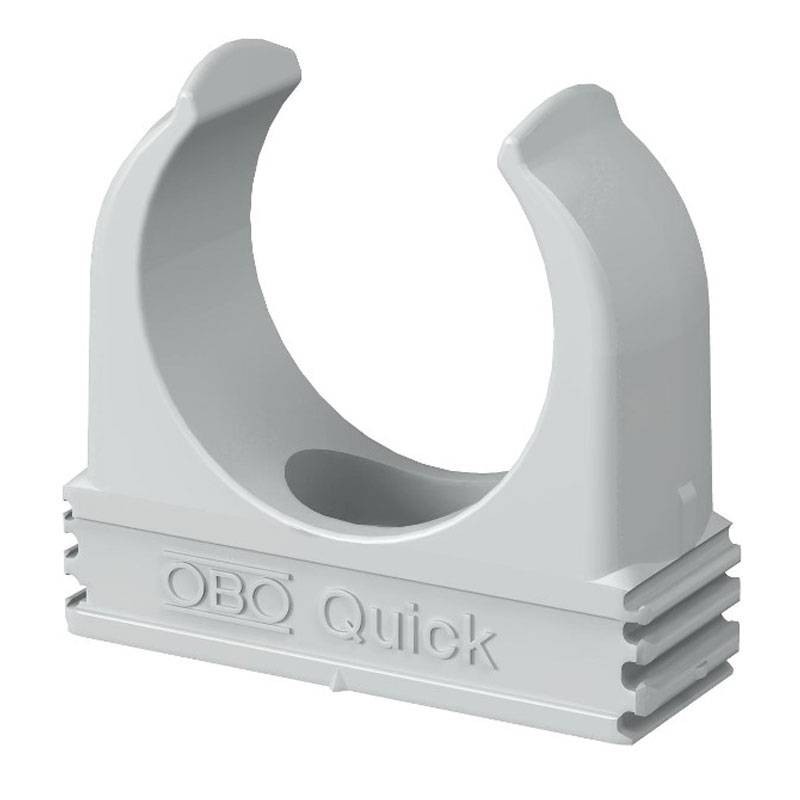

Obo Bettermann QUICK M25 snap clips for D 25mm pipes grey 2149016
OBO 2149016
4012195583998
Obo Bettermann QUICK M25 snap-on brace for steel and plastic pipes, 25 mm diameter, with quick snap-on mounting. Suitable for indoor, wall or ceiling installation, with the following features:
-
Nominal size: M25, 16 mm diameter
-
Compatible: Steel, plastic, light/heavy insulation pipes
-
Attachment: Quick without tools, on M6 thread (M16 to M32)
-
Material: Light gray polypropylene
-
Tensile strength: 75 N Flameproof 650 °C according to VDE 0471/DIN 695
-
Selling price per piece, only sellable by 100-piece package
€0.18
Items Available: 4400
: 2200
Obo snap-on clips for safe and easy fixings
The Obo Bettermann QUICK gaffet is a snap-on clip designed for safe and quick fastening of pipes in electrical and distribution systems. It is distinguished by its push-fit design, which allows the pipe to be inserted without the need for tools.
Versatile applications for indoor installations
Made of durable polypropylene, this clip is ideal for civil and industrial electrical installations, suitable for wall or ceiling mounting in protected environments. It is compatible with metric metal pipes (M25) and light and heavy insulating plastic pipes.
Functional and modular design
Thanks to the serious shape and elongated hole, the clips can be mounted in a row on smooth or uneven surfaces, including in combination with Multi-Quick or StarQuick OBO. The M6 threaded insert allows stable attachment with screws or expansion plugs.

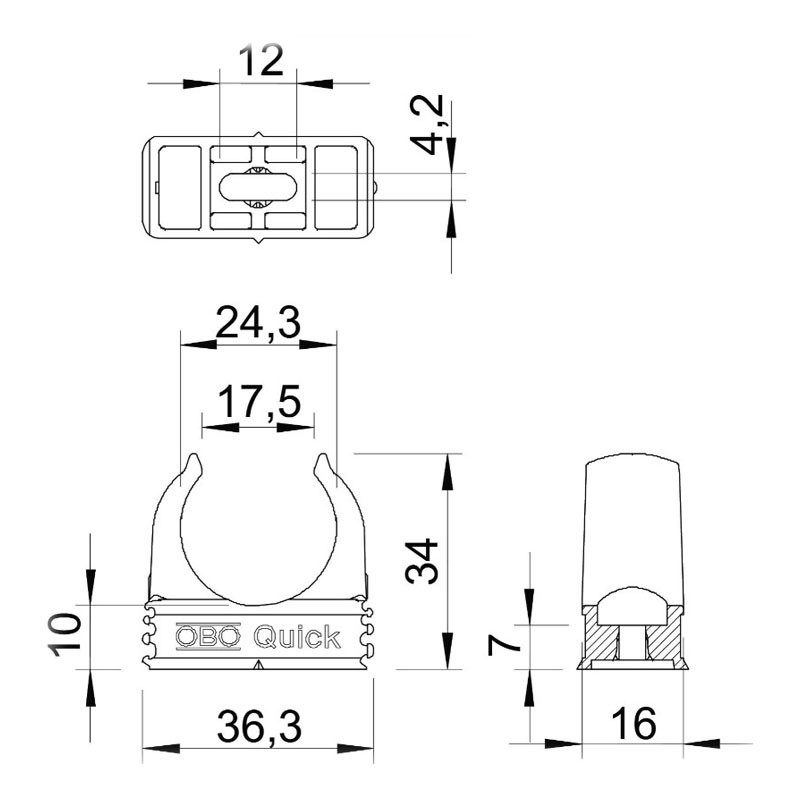

Technical Specifications Obo Clips
| Parameter | Value |
|---|---|
| Nominal size | M25 |
| Diameter supported | 25 mm |
| Color | Light gray (RAL 7035) |
| Material | Polypropylene (PP), halogen-free |
| Breaking load | 0.08 kN (≈ 80 N) |
| Pull-out force | 65-75 N |
| Flame-retardant temperature | 650 °C (according to VDE 0471) |
| Fixing hole | For M6 screw or dowel |
| Fixing | Threaded hole / screwable |
| Mounting | Wall or ceiling (interior) |
| Pipe compatibility | Steel, plastic, metric insulation |
| Recommended installation distance | 50-60 cm |
| Serious clips | Yes |
| Suitable for outdoor environments | Protected only (no UV) |
Buona qualità, prezzo conveniente in base alla quantità.
Buoni e funzionali. Conveniente il prezzo di acquisto
très bien délais de livraison un peu long mais sinon tout est correct
Perfetto. Spedizioni veloci. Consigliatissimo
Data sheet
- Diameter: 25mm
- Type: Fixing clips
- Material: Polypropylene
