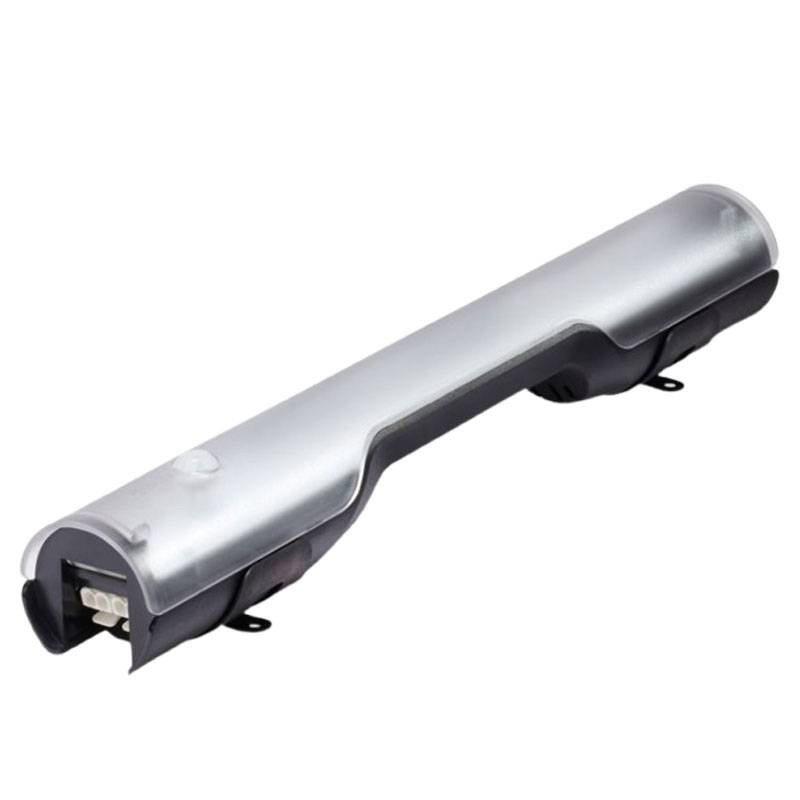

Finder Led Panel Light 230V AC/DC 600lm 7L4302301100
FIN 7L4302301100
8012823429229
Finder Led Light for Electrical Panels ensures optimal lighting for electrical panels with 600 lumens of intensity. Easy to install, it can be connected in series up to 7 ceiling lights, ensuring maximum versatility and convenience, with the following features:
-
Power supply: 230V AC/DC
-
Rated power: 9W
-
Brightness: 600 lumens
-
Connections: push-in terminals for single connection
-
Ignition: ON/OFF button
-
Mounting: direct magnetic or with fixing clip
-
Dimensions: 310.6×47.5×46 mm
€37.51
Items Available: 6
: 2
Finder Panelboard Light: Efficient Lighting and Series Connection
The Finder light is designed to provide perfect lighting inside switchboards, thanks to its 600 lumens of brightness and low-power LED technology.
Possibility of series connection
This Led lamp can be connected in series with up to 7 ceiling lights, using the included connector. Ideal for large electrical panels or installations that require uniform lighting.
Easy Installation and Maximum Efficiency in Any Condition
With direct magnetic or clip-on mounting, this lamp is easy to install without the need for additional tools. In addition, the Push-in connection system enables quick and safe wiring.
Efficiency and reliability under all conditions
The lamp operates with a rated voltage of 230V AC/DC, ensuring maximum compatibility. It withstands operating temperatures from -30 to +55 degrees, ensuring optimal performance even in harsh environments.
Features of the Finder Panel Light
| Feature | Value |
|---|---|
| Power rating | 9 W |
| Brightness | 600 lumens |
| Supply voltage | 230V AC/DC |
| Operating range | AC: 9.6V to 52.8V - DC: 88V to 264V |
| Power on | ON/OFF button |
| Connections | Push-in terminals |
| Mounting | Direct magnetic or on mounting clip |
| Operating temperature range | -30/+55 degrees |
Dimensions
| Feature | Value |
|---|---|
| Dimensions (W x D x H) | 310.6 × 47.5 × 46 mm |
There are no reviews
Data sheet
- Type: Picture lights
