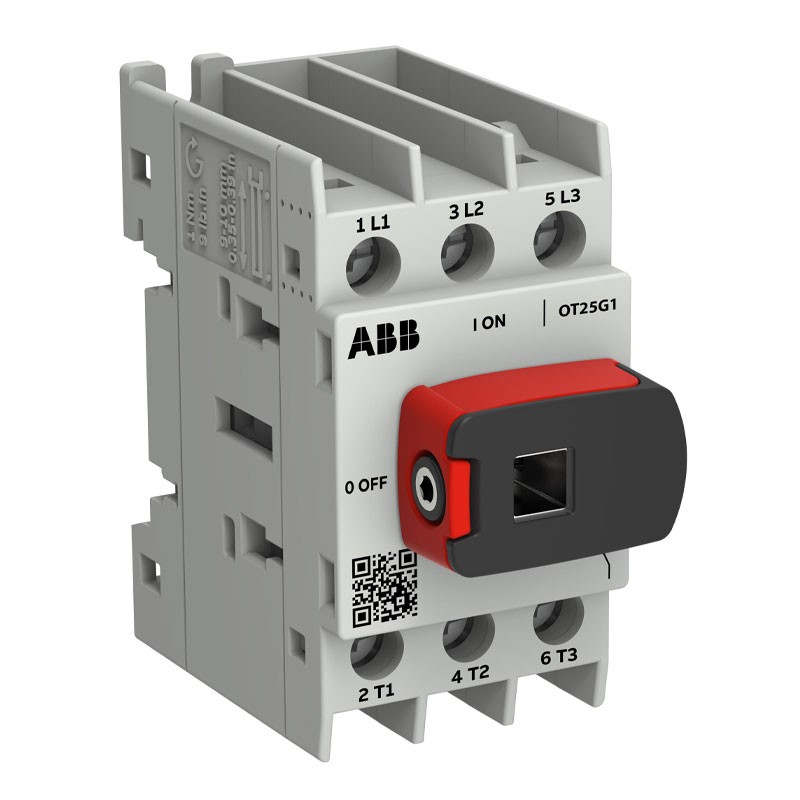

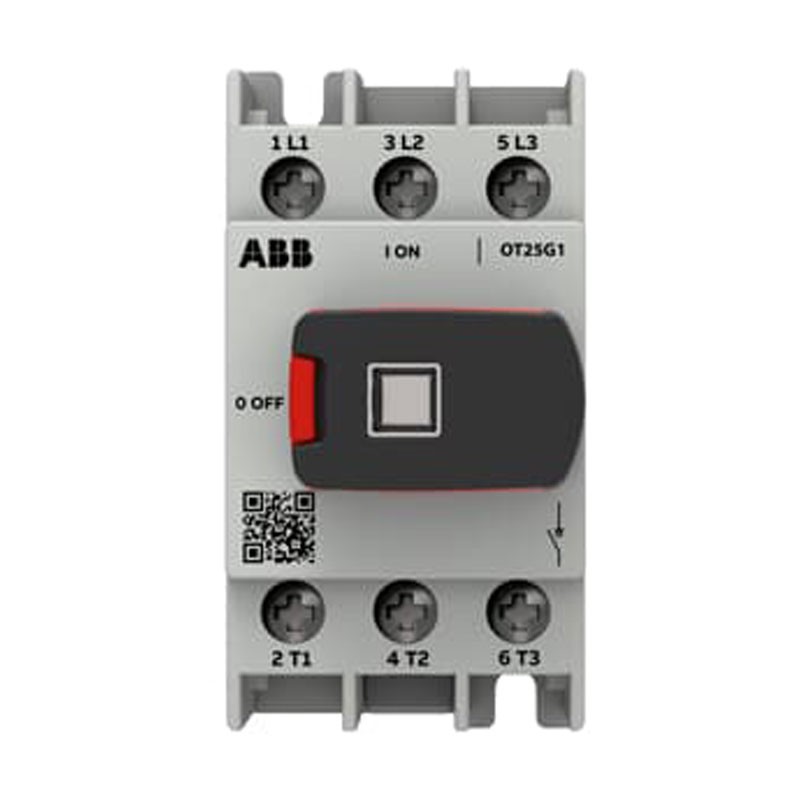

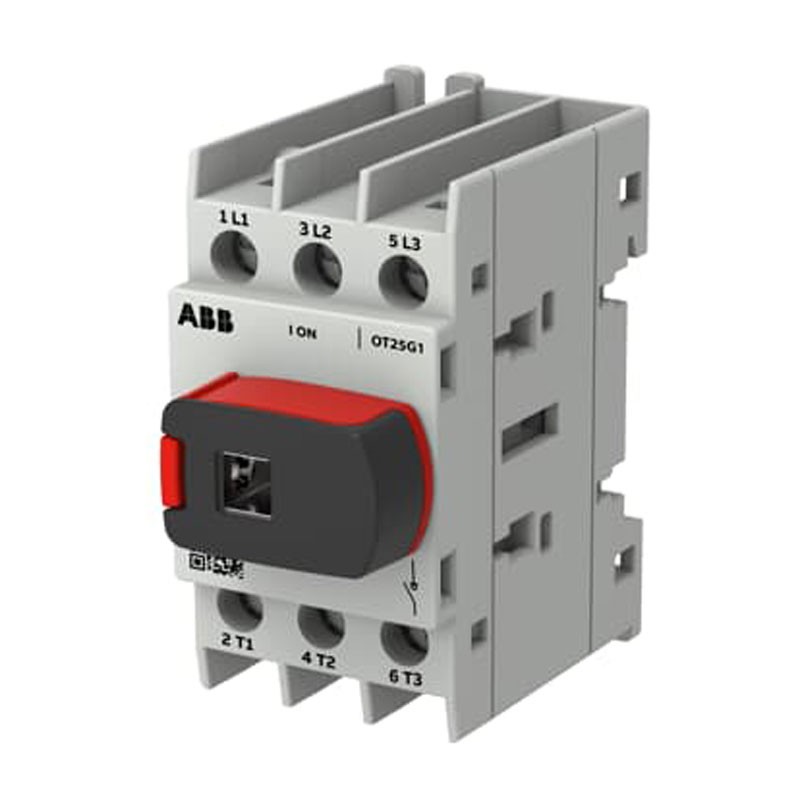

Abb Switch OT25G1-3BS 25A 3 Poles IEC frame G1 OT25G1-3BS

Abb
Abb
ABB OT25G1-3BS 6417019931043

ABB OT25G1-3BS is a three-pole OT Plus disconnector rated at 25A (frame G1) for DIN rail or plate: front operation, screw terminals, and padlockable knob handle. Ideal for disconnection and safety in electrical panels.

  • 3-pole (3P) disconnector 25A: safe isolation of lines and loads

  • ABB OT Plus series with front operation for direct control in panel

  • Mounting on DIN rail or back plate (flexible installation)

  • Integrated screw terminals: robust and reliable wiring

  • Padlockable knob handle (external handle and shaft not included)

  • Expandable with auxiliary contacts: up to 4 NO + 4 NC

Do you have questions about this product or did you not find what you were looking for? Ask us!
Abb Switch OT25G1-3BS 25A 3 Poles IEC frame G1 OT25G1-3BS
€22.89
€22.89

€22.89
Tax included
Calculate shipping cost
Items Available: 8
Further availability of the manufacturer
€22.89

Buy it within and receive it from Tuesday, 20 January
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

ABB Disconnector OT25G1-3BS: control and safety for industrial and tertiary panels

The ABB disconnector OT25G1-3BS is designed for manual disconnection and securing of electrical circuits in distribution and automation panels. In practice, it allows for visible and reliable isolation of a line, load, or branch of a system, making maintenance operations and technical interventions safer. It is a typical solution in service panels, small machine panels, auxiliary lines, and sections of a system that need to be quickly de-energized.

The OT Plus family is appreciated for its robust construction and modularity, ideal when you want to keep the panel tidy and easily expandable.

3 poles and 25A: perfect for three-phase lines and dedicated loads

With a 3P configuration and conventional thermal current of 25A, the OT25G1-3BS is suitable for controlling and disconnecting three-phase lines and typical loads in the tertiary and light industrial sectors. It is a balanced choice when a compact but reliable disconnector is needed, capable of handling common nominal currents in secondary panels and sub-distributions.

DIN rail or plate mounting: versatile installation

The disconnector can be installed on a back plate or DIN rail, facilitating integration in both new panels and retrofits. This also simplifies standardization in stock: the same device can be used in different layouts, adapting to the panel's needs and available spaces.

Front operation and lockable handle: immediate control and safety

The front operation allows for immediate maneuvering from the front of the panel, useful in environments where quick and clear control is needed. The knob handle is lockable, an important element for safety procedures (lockout/tagout) and to prevent unauthorized reactivations during maintenance interventions. Practical note: external handle and operating shaft are not included, so they must be provided if using external control.

Data for panel use: operating mode and connections

The disconnector operates with front operation mode and provides line terminals with an arrangement that allows wiring from top to bottom (or vice versa, depending on the layout), facilitating conductor order in the duct. Pollution degree 3 places it in typical industrial/tertiary contexts where dust or more challenging environmental conditions than residential may be present.

ELECTRICAL DATA
Conventional thermal current (Ith / Ithe) 25 A
Number of poles 3P
Rated insulation voltage (Ui) 800 V (IEC 60947-1)
Impulse withstand voltage (Uimp) 8 kV
Rated operational voltage 800 V
Rated current AC-21A 25 A (415 V / 690 V)
Rated current AC-22A 25 A (415 V / 690 V)
Rated current AC-23A 25 A (415 V / 690 V)
Rated power AC-23A 11 kW (415 V) · 22 kW (690 V)
Short-circuit making capacity (Icm) 1.76 kA (690 V)
Short-time withstand current (Icw) 0.8 kA (1 s) · 1.25 kA (0.2 s)
CONNECTIONS
Flexible copper cable section 0.75…16 mm²
Rigid copper cable section 0.75…6 mm²
Type of terminals Screw
Stripping length 9–10 mm
Tightening torque 1 N·m (IEC 60947-1) / 1 lbf·in (UL)
Recommended screwdriver Pozidriv 2
MECHANICAL CHARACTERISTICS
Mounting type Base / DIN rail
Operating mode Front
Type of control Mechanism on the top
Type of handle Knob (black) – length 28.5 mm
Type of lock Padlock
Max auxiliary contacts 4 NO + 4 NC
Mechanical durability 100,000 operations
Front protection degree IP20
Pollution degree 3
Power loss per pole 0.4 W
UL / CSA DATA
Max voltage UL/CSA 600 V
Current UL/CSA 30 A
Single-phase motor power 1.5 HP (110–120 V) · 3 HP (240 V) · 7.5 HP (440–480 V) · 10 HP (550–600 V)
Three-phase motor power 7.5 HP (240 V) · 15 HP (440–480 V) · 20 HP (550–600 V)
UL cable section 1× 18–6 AWG · 2× 16–10 AWG
DIMENSIONS AND WEIGHT
Width 35 mm
Height 68 mm
Depth 62 mm
Net weight 0.116 kg

There are no reviews

Data sheet

Voltage:
800VAC
Poles:
3P
Degree of protection:
IP20
Amps:
25A
Circuit Protections:
Disconnectors
