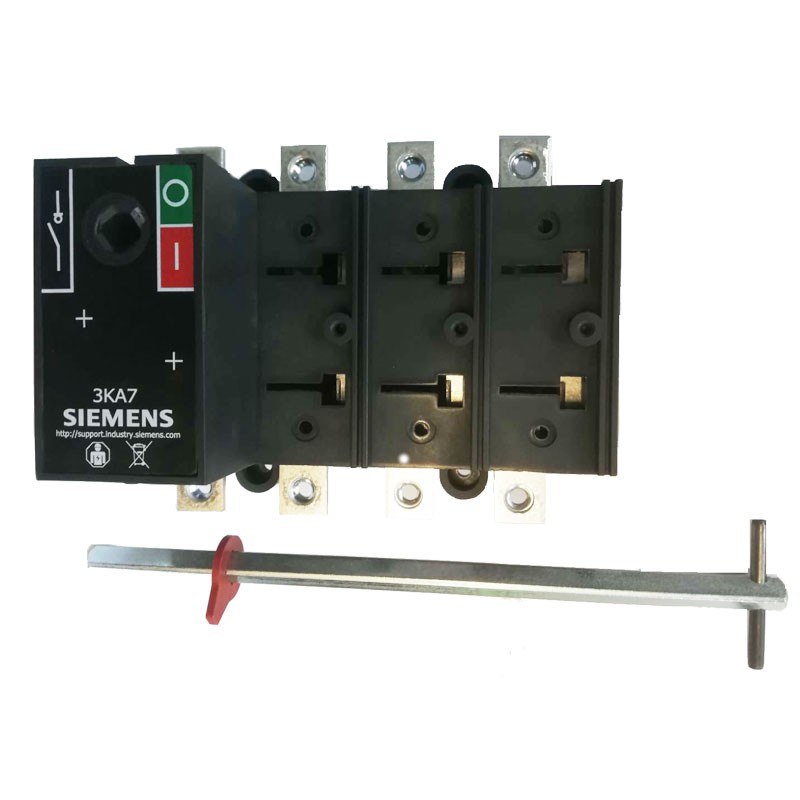

Siemens 4X1250A disconnect switch without control 3KA71534AA00


SIE 3KA71534AA00 4047624047284

Siemens disconnector:

  • Four-pole switch disconnector
  • Nominal current : 1250A
  • Supplied without control
  • Construction size : 5
  • Without control module.
Request info about this product

Siemens 4X1250A disconnect switch without control 3KA71534AA00

€853.15
€853.15

Siemens 4X1250A disconnect switch without control 3KA71534AA00

€853.15
Tax included
klarna Pay in installments with Klarna
qty

Siemens 4X1250A disconnect switch without control 3KA71534AA00

€853.15

Buy it within and receive it from Wednesday, 29 May
Two-year warranty
Secure Payment
Easy return within 14 days

Features:

  • Number of poles 4
  • Design of the fixed recessed luminaire
  • Mechanical service life (switching cycles) / typ. 7 000
  • Operating voltage / at DC / nominal value 440 V
  • Degree of protection IP00
  • Operating current: at AC / nominal value 1 250 A - at AC-21 / nominal value 1 250 A
  • Suitable for use EMERGENCY OFF switch - safety switch S
  • Electrical connection design Busbar connections for main circuit flat terminal
  • Dimensions: height 306 mm - width 356 mm - depth 147 mm
  • Type of fixing base fixing
  • Ambient temperature / during operation min. -20 °C - max. 45 °C
  • Ambient temperature / during storage / min. -25 °C.

Data sheet

Voltage:
440V
Modules:
5
Poles:
4P
Amps:
4X1250A
