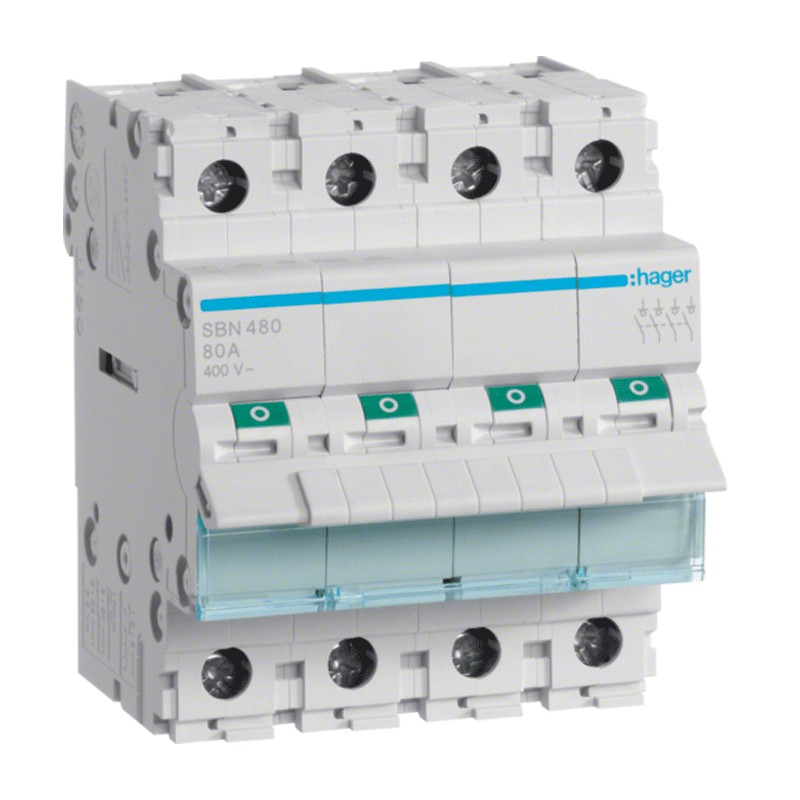

Hager Disconnect Switch 80A 4 Poles 400VAc 4 Modules SBN480
HAG SBN480
3250615510273
Disconnect switch, Hager circuit breaker:
- Current rating in 80A
- 4 Poles
- Rated operating voltage AC 400VAc
- 4 Modules
- Type of input voltage 1 AC
€73.12
Items Available: 9
: 2
Features:
- Control type Disconnect switch
- Neutral position without neutral
- Poles 4 P
- Type of poles 4 P
- Rated operating voltage AC 400 V
- Rated frequency 50/60 Hz
- Rated insulation voltage 440 V
- Type of input voltage 1 AC
- Rated fault holding current 6000 V
- Rated current in AC21 in category B 80 A
- Rated current in AC22 in category A 80 A
- Rated current in A 80 A
- Breaking capacity 1 second Icw 0.96 kA
- Thermal current in free air 80 A
- Rated current in AC21 in category A 80 A
- Rated current in AC22 in category B 80 A
- Rated short-circuit closing capacity Icm at 415 V AC according to IEC 60947-3 1354 A
- Frequency (ETIM numerical value range) 50 to 60 Hz
- Total power dissipation 1.8 W
- Power dissipation per pole 2.7 W
- Duty cycle. AC21 rated load electr. dur. 2500
- Cycle oper. AC22 rated load electr. dur. 2500
- Number of operations (mechanical duration) 40000
- Depth of the installed product 69 mm
- Height of the installed product 83 mm
- Width of installed product 70 mm
- Tightening torque 3.6Nm
- Minimum cross-section with flexible cable 6 / 35mm²
- Minimum cross-section with rigid cable 6 / 50mm²
- Position of terminals aligned
- Type of screw connection
- Quantity of NO contacts 4
- IEC 60947-3 text
- Enclosure degree of protection IP20
- Operating temperature -2050 °C
- Pollution degree/IEC60664/IEC60947-2 2
- Altitude 2000m
- Storage/transport temperature -40/+80 °C
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 4
- Poles: 4P
- Amps: 80A
- Circuit Protections: Disconnectors
- Operating voltage: AC
