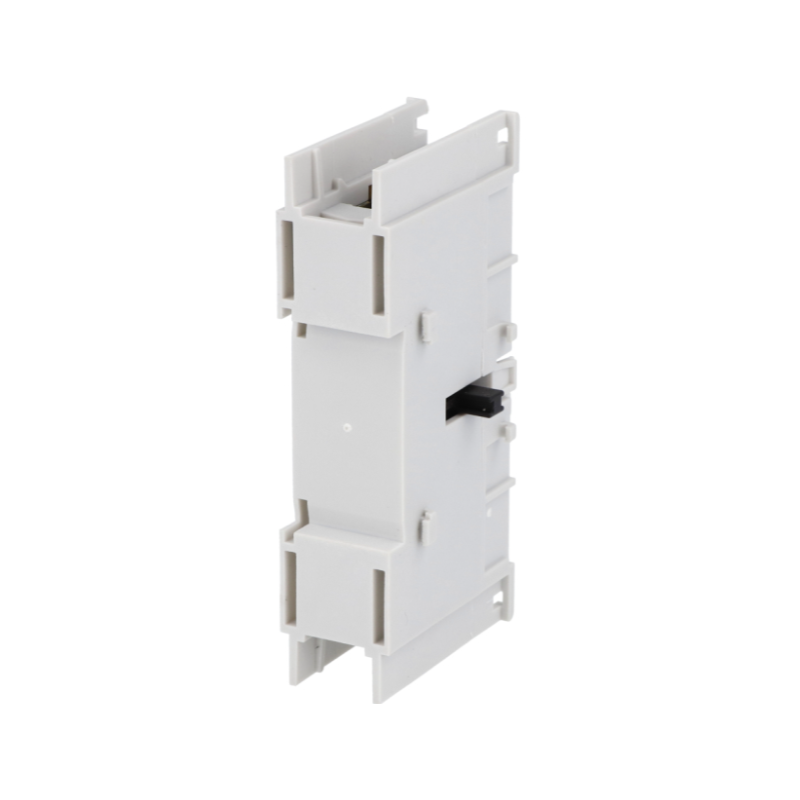

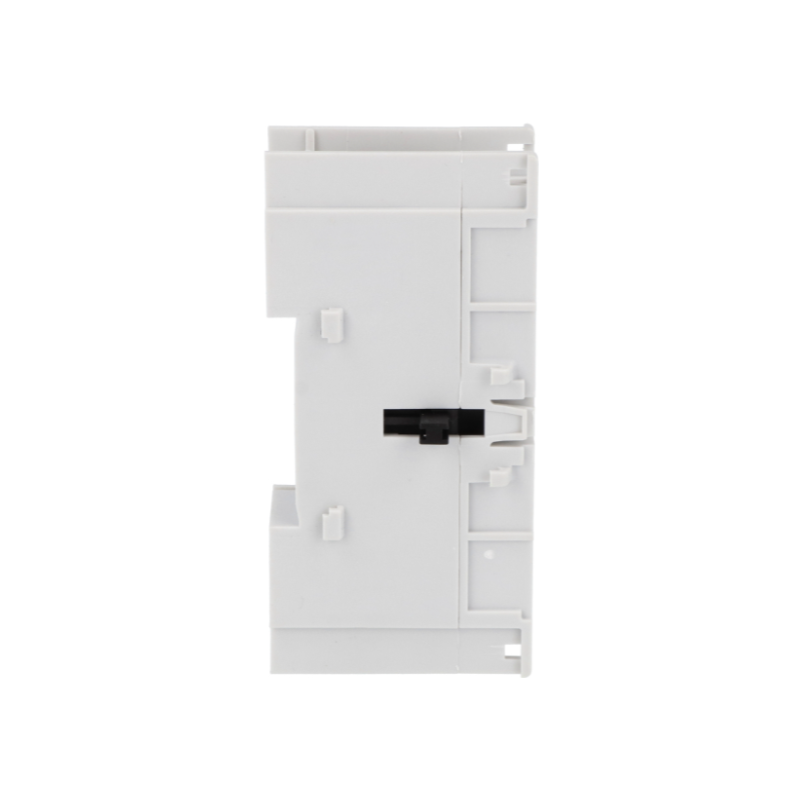

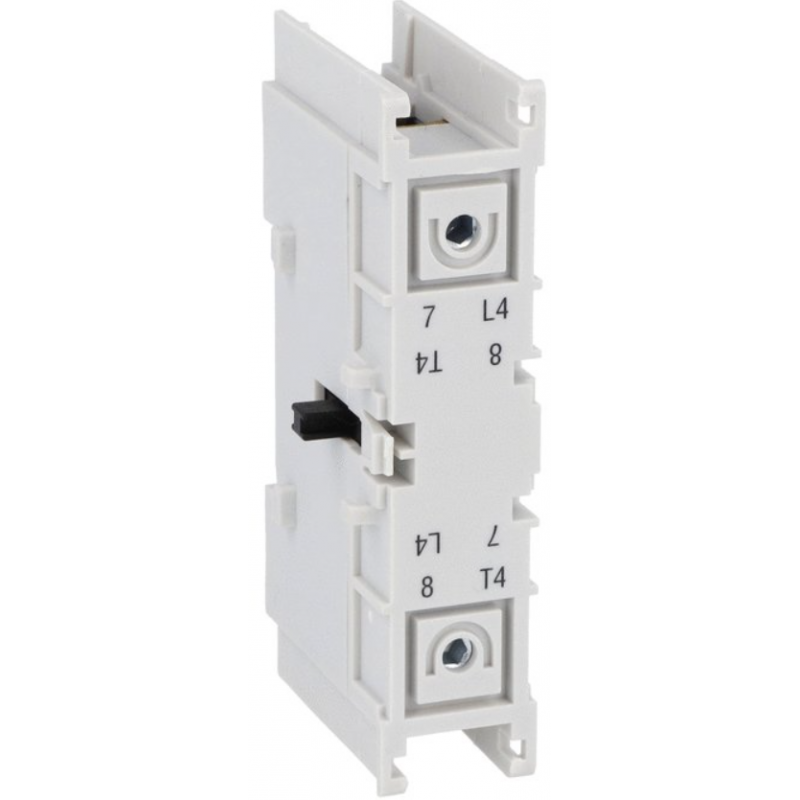

Additional 100A Lovato Fourth Pole for GA GAX42100A Series Disconnect Switch
LOV GAX42100A
8013975177792
Additional Lovato fourth pole for switch disconnector, with the following characteristics:
-
Max operating voltage 600 Vac
-
Type GAX42
-
Operating current 100 A
-
Type of operating voltage AC
-
1 pole
-
Front protection degree IP20
-
Simultaneous closing with the poles of the switch disconnector
€19.53
Items Available: 9
: 1
Frequently bought together
Thedisconnector, otherwise called voltage isolator, has the same features of a switch, but on a larger scale: it is, in fact, responsible for closing the flow of energy to the power plants. This serves mainly to ensure the safety of the plant and primarily of the people who work inside since one of its peculiarities is to separate the flow of energy from the working environments. Another peculiarity of this instrument is the ability to detect defects in the electrical flow and isolate them. When the defect is corrected, the disconnector will ensure that the current flows normally again.
The fourth pole is a device that, hooked to the compatible three-pole disconnector, provides an additional pole .
Features:
- Lovato series
- Max operating voltage 600 Vac
- Type of operating voltage AC
- Type GAX42
- 1 pole
- Current In 100A
- Rated insulation voltage IEC/EN 1000 V
- Rated impulse withstand voltage (Uimp) 8 kV
- Mechanical life 100000 cycles
- Electrical life 100000 cycles
- Terminal tightening torque min Nm 1.8 - max Nm 2
- Operating temperature min -25 °C max +55 °C
- Storage temperature min -40 °C max +70 °C
- Maximum altitude 3000 m
- Frontal protection degree IP20
- Pollution degree 3
- Short circuit current rms 5 kA
- Short circuit current with Class/A RK5/30 fuse
There are no reviews
Data sheet
- Voltage: 600VAC
- Poles: 1P
- Amps: 100A
- Circuit Protections: Disconnectors
