Abb Disconnector OT63G2-3BS 63A 3 poles OT63G2-3BS
ABB OT63G2-3BS
6417019925837

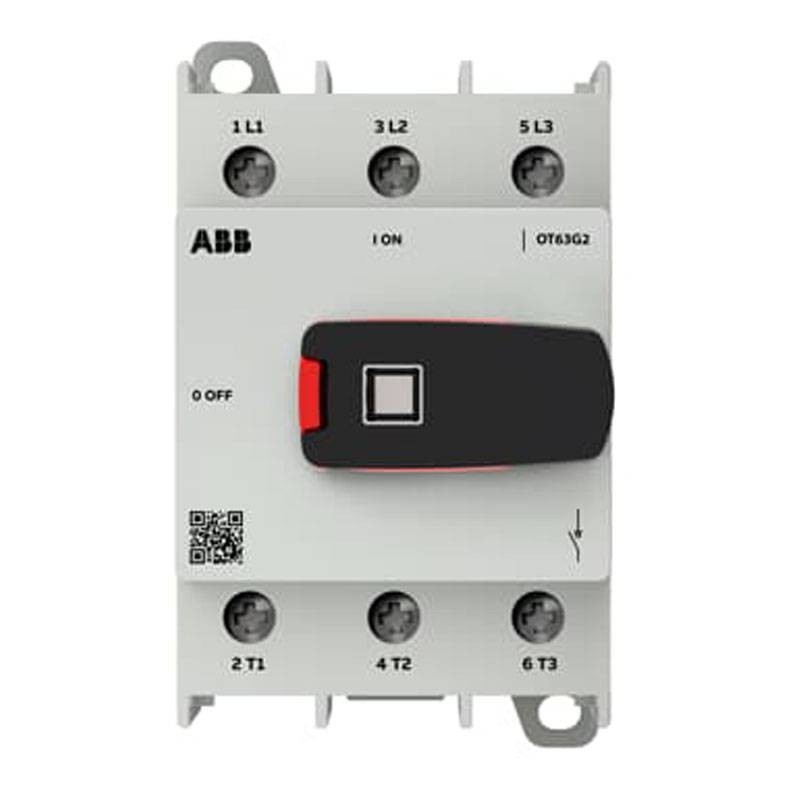

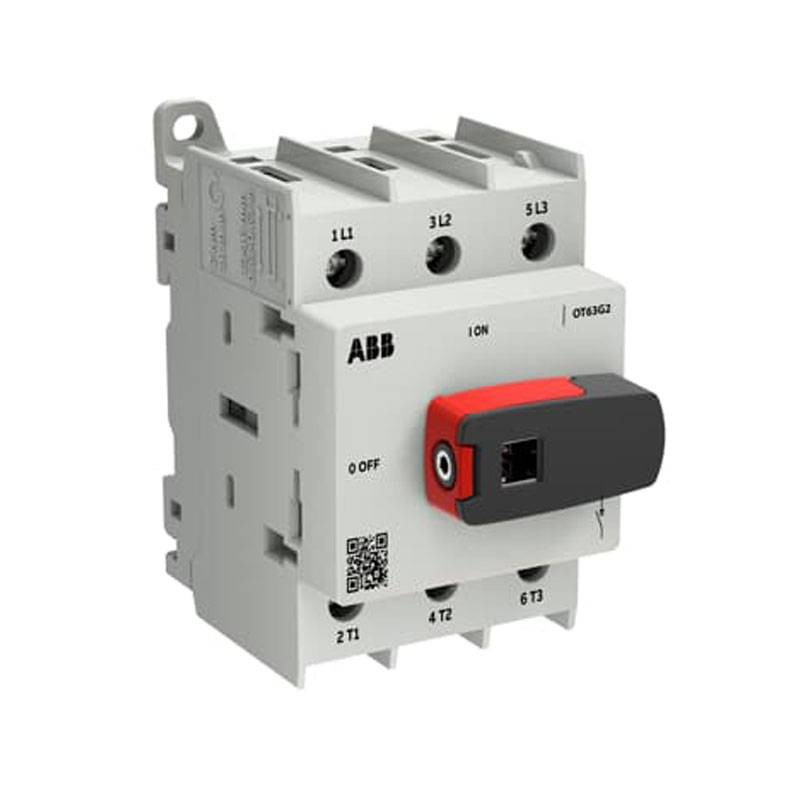

The ABB OT63G2-3BS 63A 3-pole disconnector (OT Plus series) offers safe disconnection and front operation in LV panels: DIN/base mounting, screw terminals, and lockable knob handle for quick and protected maintenance.
-
3 poles 63A for low voltage three-phase lines
-
Base / DIN rail mounting with front operation
-
Black lockable knob handle (external handle and shaft not included)
-
Screw terminals with large wiring capacity up to 35 mm² (1x Cu)
-
Performance: Ui 800 V, Uimp 8 kV, Inc 50 kA (with 80A fuse, 690 V)
-
Mechanical durability up to 100,000 operations and IP20 front.
€19.62
Items Available: 8
: 2
Frequently bought together
ABB Disconnector OT63G2-3BS: reliable isolation for panels and distribution
The ABB OT63G2-3BS is a three-pole switch-disconnector designed to ensure clear and safe disconnection in low voltage electrical panels. It is the ideal choice when it is necessary to isolate a three-phase circuit for maintenance, machine interventions, or securing a line. Belonging to the OT Plus series, it combines robustness and ease of installation, with an immediate front control and a construction designed for professional panel building.
The IP20 front protection helps reduce the risk of accidental contact during operations in the panel, while the knob operation makes opening/closing quick and intuitive.
DIN or base mounting: flexibility for panel building
This model supports base or DIN rail mounting, facilitating both new installations and retrofits. The integrated screw terminals ensure stable clamping and reliable connection over time, reducing the risk of loosening due to vibrations and thermal cycles. The knob handle is lockable, a fundamental feature for lockout/tagout procedures and to prevent unintentional reactivations during ongoing work.
Note: for door control or external operation needs, external handle and shaft are available as accessories but not included.
Simple wiring: wide compatibility with conductor sections and types
The OT63G2-3BS is suitable for various main circuit wiring configurations, useful when working on panels with different cable sections:
-
1× Cu flexible/strand 1.535 mm²
-
2× Cu flexible/strands 1.516 mm²
-
Solid and flexible conductors with ferrule in the indicated ranges (up to 6 mm² for solid 1/2x)
The recommended stripping length is 1316 mm and the tightening is done with a torque of 2 N·m (Pozidriv 2), for a neat and repeatable installation.
Electrical performance: Ui 800 V and high short-circuit withstand
With Ith/Ithe 63 A, Ui 800 V, and Uimp 8 kV, the disconnector is suitable for LV panels with good insulation margins. The conditional short-circuit current Inc 50 kA (with fuse 80 A, 690 V) makes it suitable even where the fault prospect is high. In AC-23A category, it handles 63 A at 415 V and 32 A at 690 V, with operating power up to 30 kW at 415/690 V, covering many load switching applications in the industrial field.
| GENERAL TECHNICAL DATA | |
|---|---|
| Number of poles | 3P |
| Mounting type | Base mounting / DIN rail |
| Operating mode | Front |
| Protection degree (front) | IP20 |
| Pollution degree | 3 |
| CONNECTION CAPACITY – MAIN CIRCUIT | |
| Flexible conductors with ferrule | 1/2x Cu 1.5…4 mm² |
| Solid conductors | 1/2x Cu 1.5…6 mm² |
| Flexible conductors | 1x Cu 1.5…35 mm² 2x Cu 1.5…16 mm² |
| Stranded conductors | 1x Cu 1.5…35 mm² 2x Cu 1.5…16 mm² |
| ELECTRICAL CHARACTERISTICS | |
| Conventional free air thermal current (Ith) | 63 A |
| Conventional thermal current (Ithe) | 63 A |
| Rated insulation voltage (Ui) | 800 V (IEC 60947-1) |
| Rated operating voltage | Main circuit: 800 V |
| Impulse withstand voltage (Uimp) | 8 kV |
| RATED OPERATING CURRENTS | |
| AC-21A (Ie) | 63 A @ 415 V 63 A @ 690 V |
| AC-22A (Ie) | 63 A @ 415 V 63 A @ 690 V |
| AC-23A (Ie) | 63 A @ 415 V 32 A @ 690 V |
| Rated operational power AC-23A (Pe) | 30 kW @ 415 V 30 kW @ 690 V |
| SHORT-CIRCUIT AND WITHSTAND | |
| Conditional short-circuit current (Inc) | 50 kA (fuse 80 A, 690 V) |
| Short-circuit making capacity (Icm) | 3.5 kA @ 690 V |
| Short-time withstand current (Icw) | 1.5 kA for 1 s 2.5 kA for 0.2 s |
| LOSSES AND DISSIPATION | |
| Power loss per pole | 2.2 W (nominal operating conditions) |
| CONTROL AND LOCKING | |
| Type of handle | Knob handle |
| Handle colour | Black |
| Handle length | 37 mm |
| Type of lock | Padlock |
| External handle and shaft | Not included |
| AUXILIARY CONTACTS | |
| Maximum number of contacts mountable | 4 NO + 4 NC |
| MECHANICAL DURABILITY | |
| Durability | 100,000 operations |
| CONNECTIONS | |
| Type of terminal | Screw terminals |
| Recommended screwdriver | Pozidriv 2 |
| Tightening torque | 2 N·m (IEC 60947-1) |
| Stripping length | 13–16 mm (0.51–0.63 in) |
| UL / CSA DATA | |
| Maximum operating voltage | 600 V |
| UL / CSA rated current | 63 A |
| UL / CSA rated power | Single-phase: • 110–120 V: 2 Hp • 240 V: 7.5 Hp • 440–480 V: 15 Hp • 550–600 V: 15 Hp Three-phase: • 110–120 V: 5 Hp • 240 V: 15 Hp • 440–480 V: 30 Hp • 550–600 V: 30 Hp |
| UL / CSA wire size | 1x 16–2 AWG 2x 16–8 AWG |
| UL / CSA tightening torque | 18 lbf·in |
| REFERENCE STANDARDS | |
| Standards | IEC 60947-3 UL 60947-4-1 CSA C22.2 no.14 |
| DIMENSIONS AND WEIGHT | |
| Width | 52.5 mm |
| Height | 91.5 mm |
| Depth | 73 mm |
| Net weight | 0.251 kg |
There are no reviews
Data sheet
- Voltage: 800VAC
- Poles: 3P
- Degree of protection: IP20
- Amps: 63A
- Circuit Protections: Disconnectors
