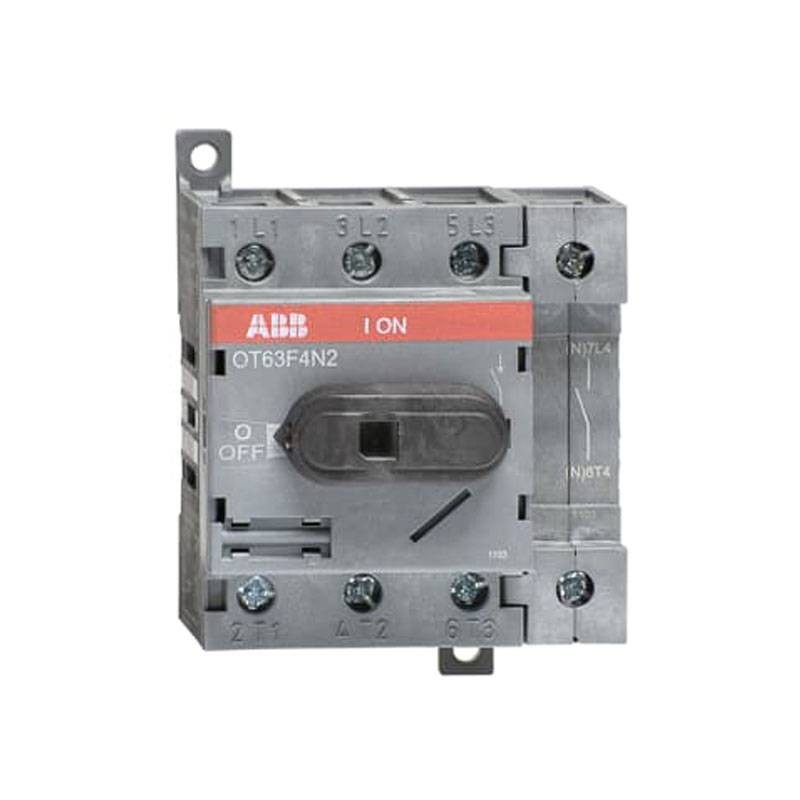

Abb Disconnect Switch OT63F4N2 63A 4P IP20 EE 275 2
ABB EE 275 2
6417019101736
Abb disconnector OT63F4N2 with the following characteristics:
- Impulse withstand voltage (Uimp): 8 kV
- Rated operating voltage: Main circuit 750 V
- Rated closing power on short circuit: 2.1 kA
- Pollution degree: 3
- Number of poles: 4
- Degree of protection: IP20
- Terminal type: Screw terminals
- Height: 91.5 mm
- Width: 70 mm
- Depth: 72.5 mm
- Weight: 310 grams
€49.09
Items Available: 6
: 3
The OT range of switch-disconnectors is suitable for various types of applications, including general machine disconnect, power distribution, motor control centers or photovoltaic systems.
Reduced installation time and cost and space requirements. The devices can be installed in any direction. Various mounting options, modular design and a wide range of accessories make installation extremely flexible.
Improved usability: Specially integrated ground disconnects with floor-mounting options and control rotated by 90.
Reduced design time: Models with wide phase spacing designed for standard switchboard busbar arrangement.
High performance: OT switch-disconnectors can be used in the most critical applications.
There are no reviews
Data sheet
- Voltage: 750VAC
- Poles: 4P
- Degree of protection: IP20
- Amps: 63A
- Circuit Protections: Disconnectors
