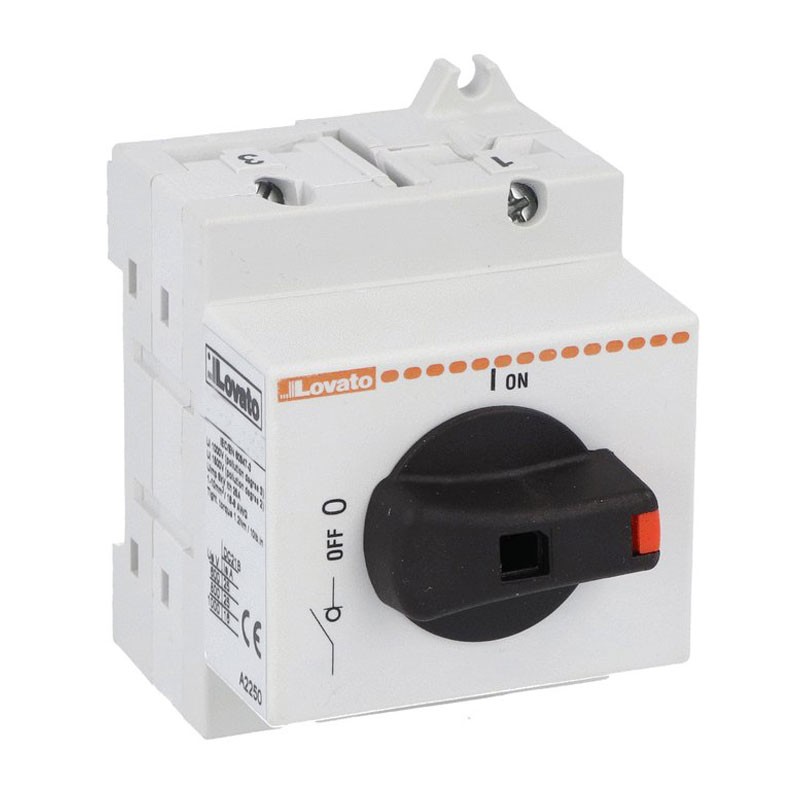

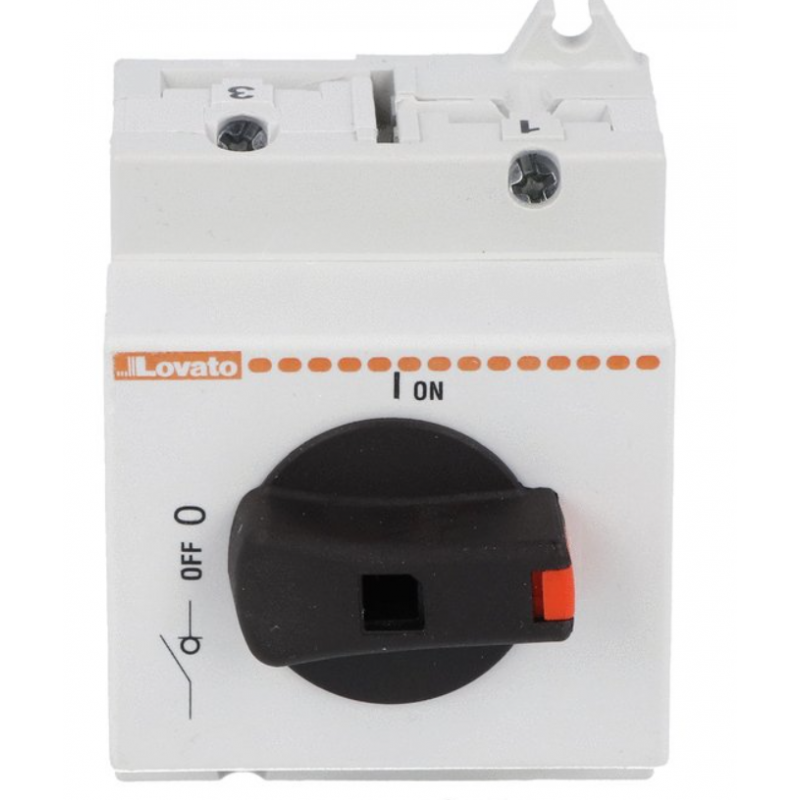

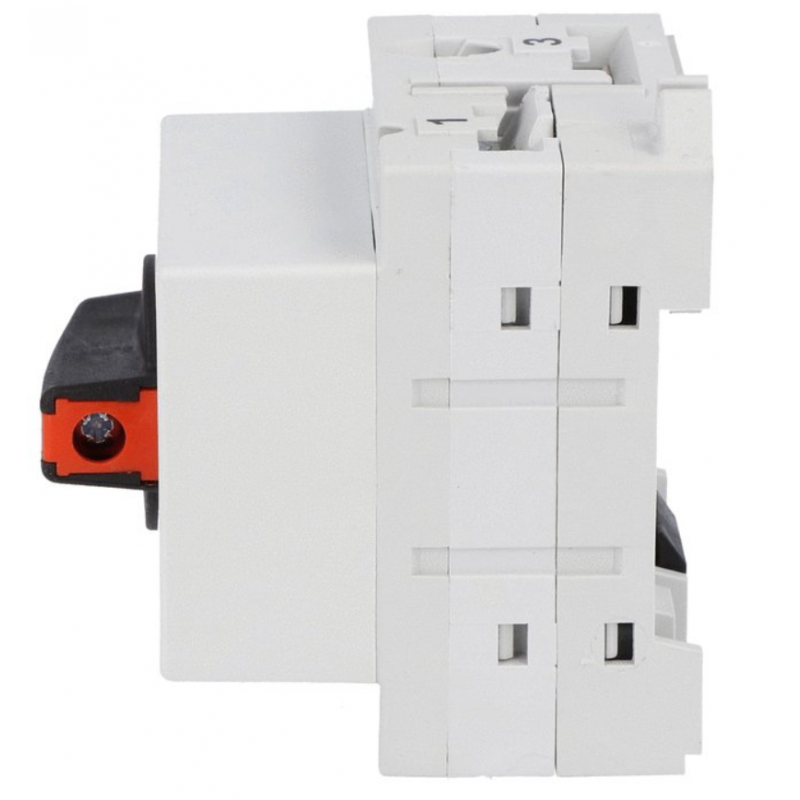

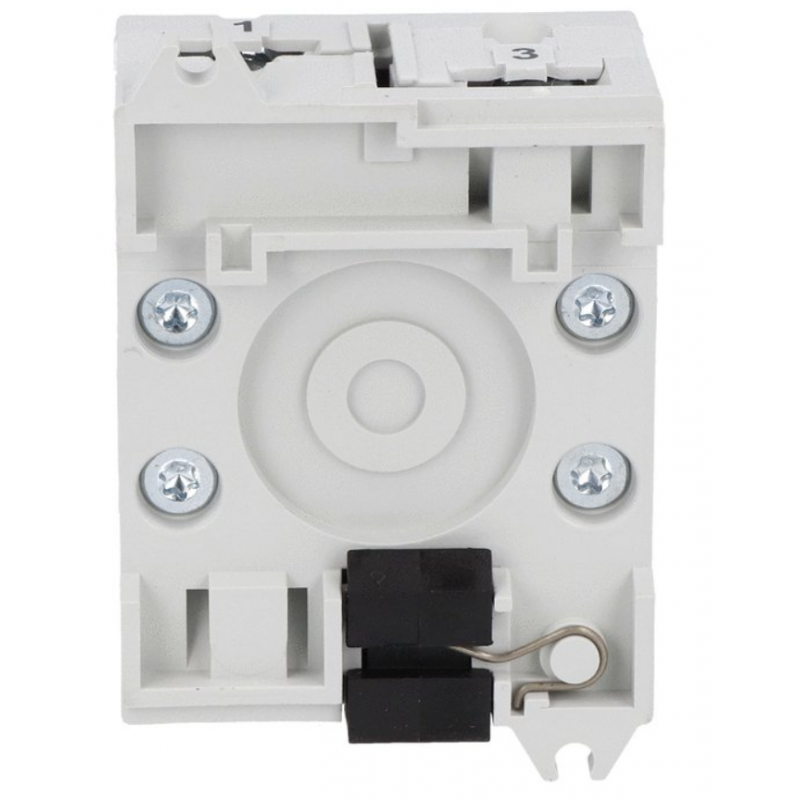

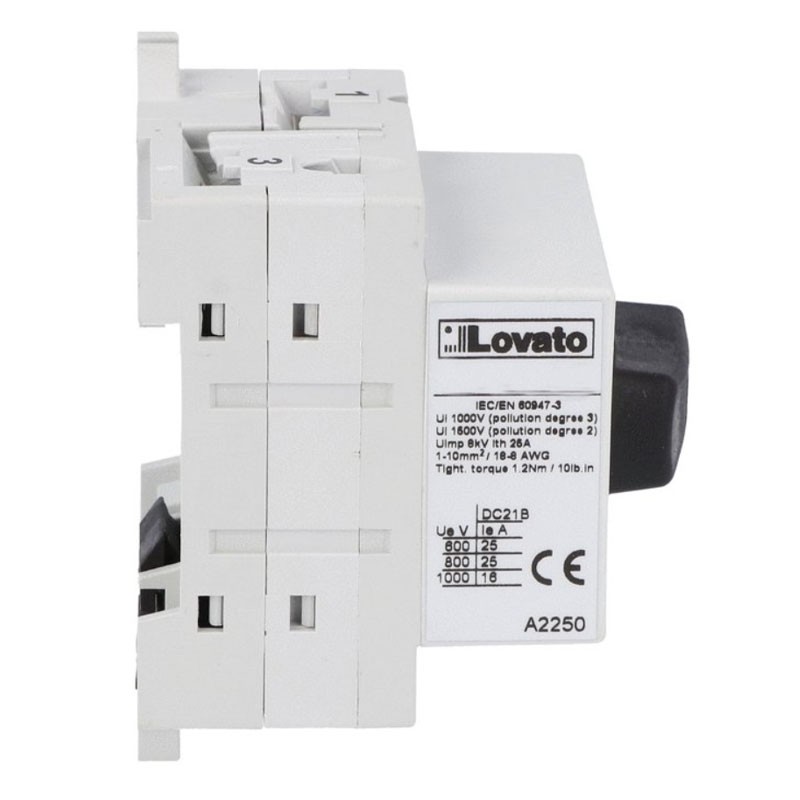

Lovato GD 32A 1000VDC DC 2-Pole Disconnect Switch GD032AT3


LOV GD032AT3 8013975216798

Lovato GD Disconnector:

  • Type GD
  • Number of poles 2
  • Type of operating voltage DC
  • Conventional free air thermal current Ith IEC 32A
  • IEC/EN rated insulation voltage V 1000
  • Rated impulse withstand voltage (Uimp) kV 8
Request info about this product

Lovato GD 32A 1000VDC DC 2-Pole Disconnect Switch GD032AT3

€58.16
€58.16

Lovato GD 32A 1000VDC DC 2-Pole Disconnect Switch GD032AT3

€58.16
Tax included
klarna Pay in installments with Klarna
qty

Lovato GD 32A 1000VDC DC 2-Pole Disconnect Switch GD032AT3

€58.16

Buy it within and receive it from Thursday, 13 June
Two-year warranty
Secure Payment
Easy return within 14 days

Operating current Ie DC21A

  • 600V A 32
  • 800V A 32
  • 1000V A 32


Characteristics:

  • Power dissipation per pole max W 1.2
  • Mechanical life cycles 10000
  • Mounting position Normal Vertical plane
  • Mounting Screw / DIN rail 35mm
  • Operating temperature min °C -25 - max °C +55
  • Storage temperature min °C -40 - max °C +70
  • Maximum altitude m 3000
  • Degree of protection IP front IP20
  • ETIM Classification 8.0 EC000216

Data sheet

Voltage:
1000V
Poles:
2P
Degree of protection:
IP20
Amps:
32A
Circuit Protections:
Disconnectors
Operating voltage:
DC
