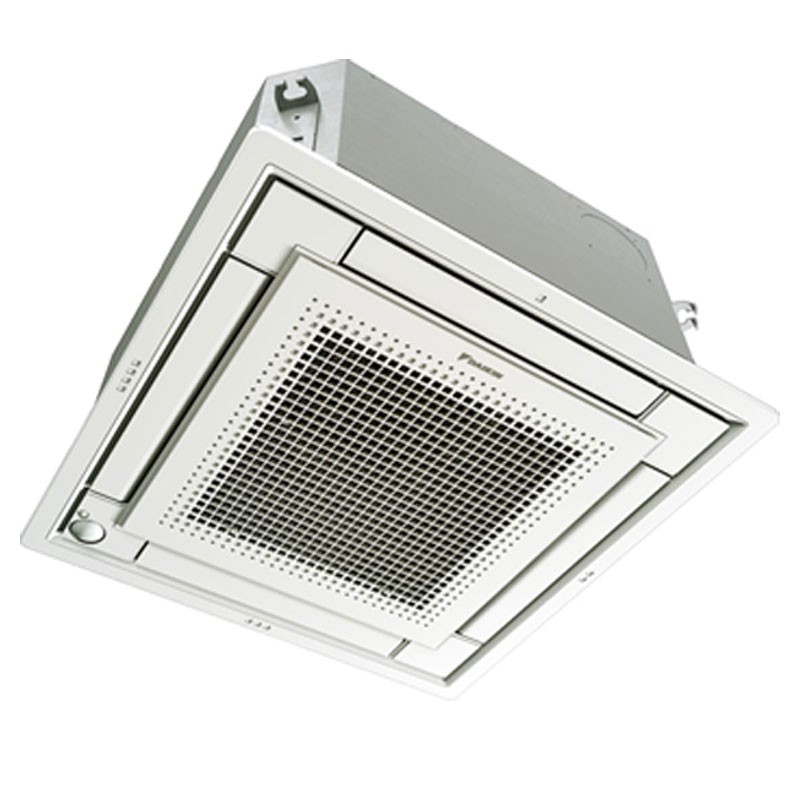

Daikin Mini SkyAir Alpha Cassette Air Conditioner 6KW 21000BTU R32
KIT DIKCASS21
4548848722877
Daikin Mini SkyAir Alpha 6.0KW 21000BTU ultra-flat cassette air conditioner with R32 Gas, consisting of:
- 1 outdoor unit Mini SkY Air Alpha 6.0kW (RZAG60A)
- 1 Fully Flat 60x60 cassette indoor unit (FFA60A9)
- 1 indoor unit grille 620X620X46mm White (BYFQ60CW)
For a room of approximately 78m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
€3,425.97
Out of stock
Frequently bought together
Advantages:
- Unique design in the market with integration of the ultra-flat unit into the ceiling
- Combination of advanced technology and ultra-high efficiency
- Quietest cassettes available on the market
- Blends perfectly with modern office furniture
- Ultra-quiet unit (25 dBA)
- Design conceived according to European standards
- Perfect operating conditions: no more cold drafts
- Savings of up to 27% on energy bills thanks to optional sensors
- Flexibility in space use and the ability to adapt to any room configuration thanks to individual baffle control
Combination with Sky Air Alpha Series units ensures the highest levels of quality, efficiency and performance:
- Ultra-flat unit, which can be installed in the ceiling, requiring a free air gap of only 8 mm
- Unique combination of design and technology, with elegant white or silver and white finishes
- Two optional smart sensors improve energy efficiency and comfort levels
- Individual baffle control: flexibility to adapt to the configuration of any room without changing the location of the unit!
- Ducting delivery that allows you to optimize air distribution in irregularly shaped rooms or deliver air to small adjacent rooms
- Standard condensate drain pump with 630 mm head that increases flexibility and speed of installation.
Technical characteristics
Cooling:
- Nominal Capacity 6.0kW
- Nominal Power Consumption : 2.41kW
- SEER 5.80
- Energy Class : A+
- EER 3.23
- Indicative annual energy consumption kW/a 362
Heating:
- Nominal Capacity 7.0 kW
- Nominal Power Consumption 7.0 kW
- SCOP: 4.04
- Seasonal energy efficiency class A
- COP 2.90
- Indicative annual energy consumption: kWh/a 1558
Features Indoor Unit:
- Dimensions: (HxWxD) 260x575x575mm
- Weight 17.5Kg
- Resin mesh air filter
- Fan air flow rate in cooling (Low/Medium/High) 9.5/12.5/14.5 m³/min
- Fan air flow rate in heating (Low/Medium/High) 9.5/12.5/14.5 m³/min
- Cooling sound power dBA 60
- Sound pressure in cooling Low/High 32.0/43.0 dBa
- Sound pressure in heating Low/High 32.0/43.0 dBa
- Power supply Phase/Frequency/Voltage Hz/V 1~/50/220-240
Decorative panel
- Model BYFQ60CW
- Color White RAL9010
- Dimensions Height x Width x Depth mm 46x620x620
- Weight 2.8 Kg
Features Outdoor Unit:
- Dimensions: (Height x Width x Depth) 734x940x376mm
- Weight 52Kg
- Cooling sound power 64 dBa
- Sound power in heating 64 dBa
- Sound pressure in cooling mode 50 dBa
- Sound pressure in heating 50 dBa
- Operating range Cooling Outdoor T.External Min.~Max. °CBS -20 / +52
- Operating range Heating Outdoor T.outside Min.~Max. °CBU -20 / +24
- Refrigerant Type/GWP R32/675
- Charge kg/TCO2Eq 1.55/1.05
- Piping connections: Liquid 6.4 mm (1/4") - Gas 12.7 mm (1/2")
- Piping length Outdoor unit and indoor unit Max 50 meters
- System piping length without charge 30 meters
- Max height difference between outdoor and indoor unit 30 meters
- Power Supply Phase/Frequency/Voltage Hz/V Single phase / 50 / 230
- Current - 50 Hz Maximum fuse rating (MFA) 20A
Optional control systems not included
- Infrared remote control BRC7EB530W (standard panel) / BRC7F530W (white panel) / BRC7F530S (gray panel)
- Wired control BRC1H52W/S/K, BRC1E53A
There are no reviews
Data sheet
- Air conditioners: Cassette
- Gas: R32
- Power: 21000 BTU (6,0 kW)
- Room Size: 78m²
- Series: Cassetta Fully Flat
