Daikin DAIKIN air conditioning wired controller BRC1E53A
DAK BRC1E53A
4548848487486

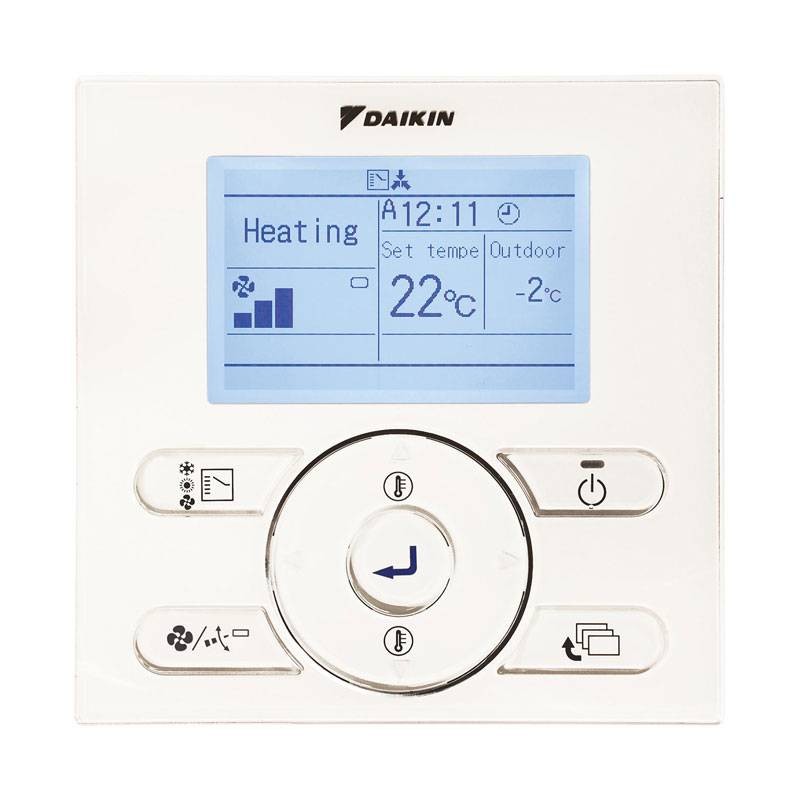

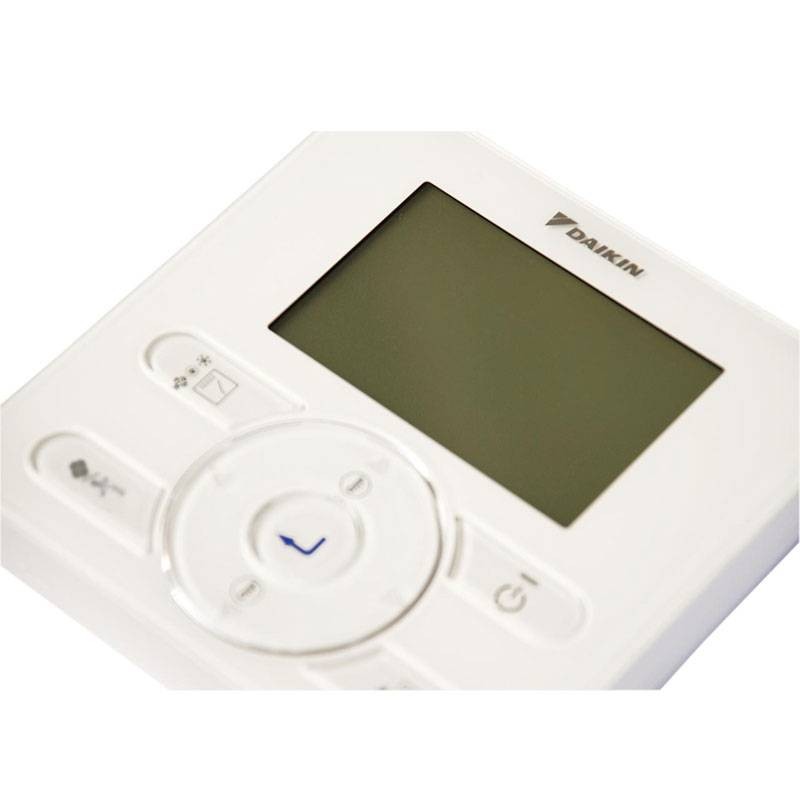

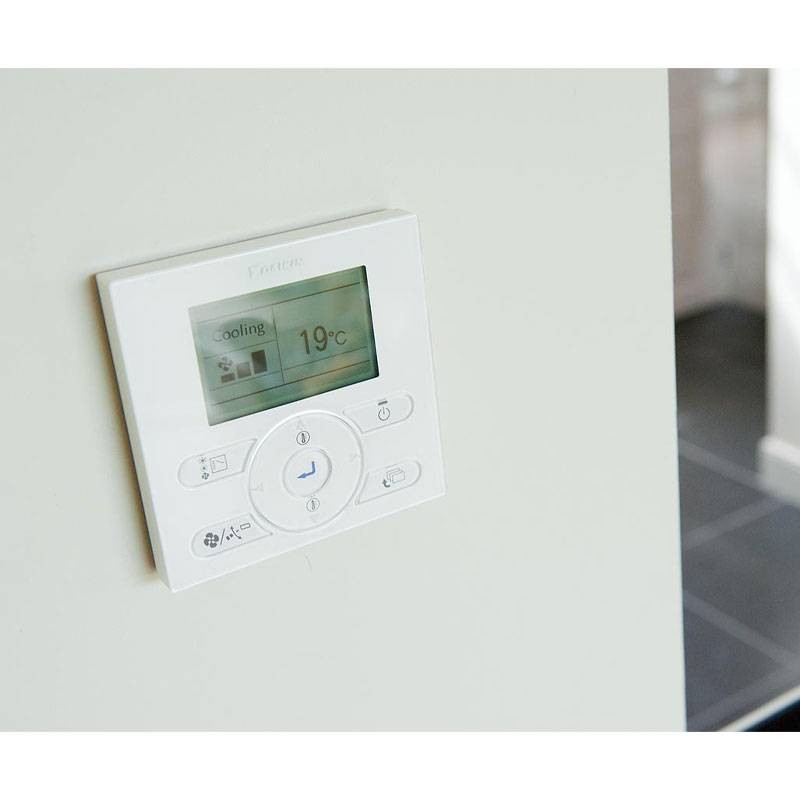

The Daikin BRC1E53A wired controller enables complete and customizable control of Daikin air conditioning systems. Equipped with weekly programming, built-in room sensor, energy-saving features and user-friendly interface, it is the ideal choice for optimal comfort and efficient consumption management.
-
Weekly programming with the ability to set up to 3 customized seasonal profiles (e.g., summer, winter, mid-season)
-
Built-in room sensor for precise temperature control
-
Full fan control: speed and fin direction
-
Button lock and menu access restriction (ideal for public or commercial environments)
-
Automatic shut-off display to reduce standby consumption
-
Consumption indication in kWh directly on the display
-
Operational rotation and back-up: ideal for continuous cooling of critical infrastructure such as server rooms
-
Home Leave mode: maintains comfort with reduced consumption during extended absences.
€180.07
Items Available: 2
: 1
BRC1E53A wired control for weekly programming of Daikin air conditioners
The Daikin BRC1E53A allows users to effectively manage the operation of the air conditioner with its various control options, which include on/off, change of operating mode (cooling, heating, ventilation, etc.), setpoint adjustment for the desired temperature, and the ability to select the fan speed according to the user's needs or environmental conditions. In addition, this thermostat allows the position of the fins to be adjusted, which helps direct the airflow more precisely.
One of the most important aspects of this remote control is the incorporation of a room probe, which allows the temperature to be adjusted more precisely by detecting the actual conditions in the environment. This feature ensures that the air conditioning equipment operates efficiently, maintaining consistent thermal comfort and reducing energy consumption.
The Daikin BRC1E53A thermostat includes a weekly programming function, which allows you to set customized operating times for each day of the week. This is particularly useful for optimizing energy consumption, as the equipment can be programmed to turn on or off at specific times of the day, adapting to the user's routines and avoiding unnecessary operation of the equipment when there are no people in the room.
Energy-saving and comfort functions
The thermostat is also equipped with several energy-saving functions. With its programming and ability to precisely control operating modes and temperature, the BRC1E53A helps reduce power consumption, especially in commercial or residential applications where air conditioning use is intensive.
Another important feature is the dirty filter signal and reset, which notifies the user when the filter needs to be cleaned or changed, ensuring optimal system performance and extending the life of the air conditioning equipment.
Security and customization
Button lock is another important feature of the Daikin BRC1E53A, which allows users to lock certain functions of the remote control, preventing accidental or unauthorized changes in the configuration of the air conditioning system. This is especially useful in commercial or office environments, where it is necessary to maintain constant control over the air conditioning system.
The remote control is also compatible with Daikin's VAM systems, which means it can control additional functions, such as bypass, heat recovery, and ventilation modes in systems that incorporate these elements. This further expands the capabilities of the BRC1E53A, making it a multifunctional device that not only manages temperature but also indoor air quality.
Main functions
| Function | Description |
|---|---|
| Energy saving | Temperature interval limitation, shutdown timer, eco function. |
| Intelligent consumption control | Preset demand control (up to -70% consumption with Sky Air). |
| Weekly programmable timer | Automatic start of cooling/heating on a daily basis. |
| Language compatibility | Menus in 8 languages (including Italian). |
| Intuitive user interface | Ease of use and direct access to all major functions. |
| Easy commissioning | Quick navigation in advanced menus. |
| Built-in memory | Saves settings for 48 hours in case of power failure. |
| Automatic summer/solar time changeover | Automatic summer/winter time adjustment. |
| Silent mode | Can be activated to reduce the noise of the outdoor unit. |
There are no reviews
Data sheet
- Type: Wired controllers
