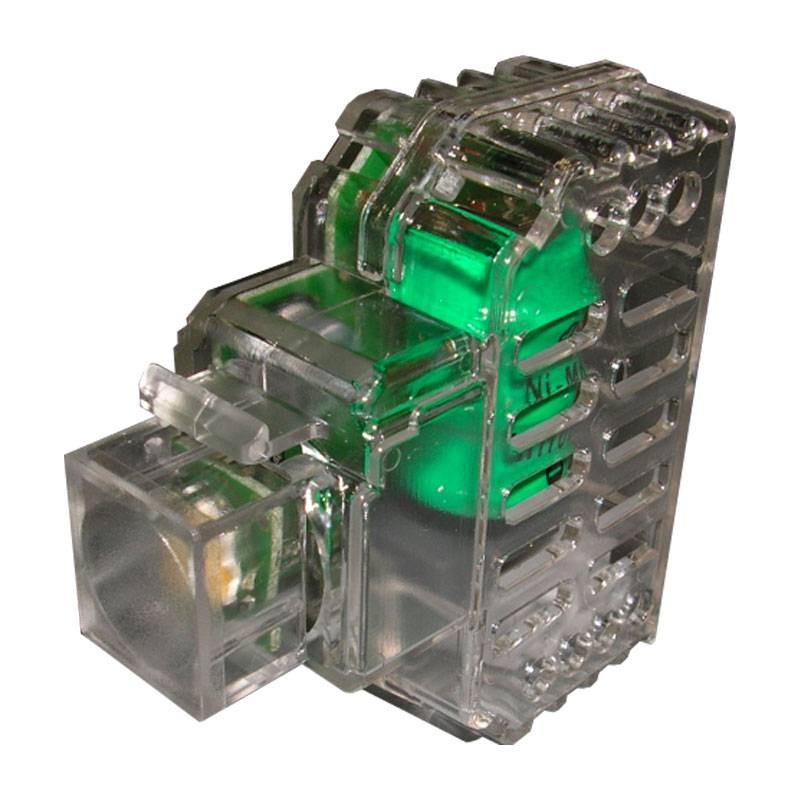

High-brightness Led emergency lamp 50lm from civil series in Keystone version, 5000K white light, 120° emission angle, NiMH 3.6V 110mAh rechargeable battery autonomy 4 hours, battery recharge in 24 hours, blue LED indicator light on the front indicating device powered and battery charging. Power supply 230Vac 50/60Hz (110Vac 50/60Hz on request), IP20 degree of protection.

Emergency Lamps activate a high-brightness LED inside them (5000°K white LED, 120° emission angle, 50lm) when the power supply fails. They are installed in all environments where it is necessary to provide some degree of illumination in the event of a power failure. Emergency Lamps are to be powered directly in 230Vac 50/60Hz, 12Vdc-ac or 24Vdc-ac depending on the models. In their normal operation, with power indicated by the small blue indicator light on the front, the internal 3.6V 110mA NiMH battery (non-replaceable) charges. When the power supply fails, the blue indicator light goes out and the high-brightness LED lights up. So that the battery is not discharged during transportation or storage period, the micro switch on the back of the device is placed to the right (battery disconnected OFF). After installation is complete, the micro switch should be placed on the left (battery connected ON) to allow the emergency lamp to operate properly in the event of a power failure. A discharged battery requires at least 24 hours for a full recharge.

Installation must be done in accordance with current CEl standards. Protect the device with a high-blow fuse. Before working on the installation, de-energize by acting on the main switch. Use insulated yellow-green conductors only for the ground connection. Make sure that the cross section of the conductors is not less than 1.5 mm. Carefully tighten the conductors in the terminals. The connection of the LED Lamp must be made in accordance with the wiring diagram shown.

Compliant with EMC directives 89/336/EEC, 92/31/EEC, 93/68/EEC and B.T. directives 73/23/EEC, 93/68/EEC.

Device can be used with Keystone Tecnel adapters compatible with the following civil series: TC MAGIC, TC LIVING CLASSIC, TC TEKNE IVORY, TC LIGHT WHITE, TC LIVING INTERN BLACK, TC LUNA WHITE, TC LIGHT TECH SILVER, TC MATIX WHITE, TC AXOLUTE WHITE, TC AXOLUTE LIGHT, TC AXOLUTE DARK, TC LIVING NOW WHITE, TC LIVING NOW SAND, TC LIVING NOW BLACK, LG VELA WHITE, LG VELA BLACK, VM IDEA BLACK, VM IDEA WHITE, VM PLANA WHITE, VM PLANA BLACK, VM EIKON WHITE, VM EIKON BLACK, VM ARKE' WHITE, VM ERKE' BLACK, VM ERKE' METAL, GW SYSTEM WHITE, GW SYSTEM BLACK, GW PLAYBUS BLACK.
