Bticino Living Now K2010KITN Roller Shutter Starter Kit
BTI K2010KITN
8005543771921
The Bticino K2010KITN with Netatmo Smart Roller Shutter Starter Kit is the perfect solution for those who want to remotely automate and control 5 electric roller shutters. With compatibility with Alexa, Google Home and Apple HomeKit, you can manage the shutters directly from your smartphone, via voice commands or in local mode.
Equipped with connected gateways and shutter controls, the kit allows you to customize scenarios, monitor shutter status and optimize energy consumption, ensuring comfort, safety and efficiency.

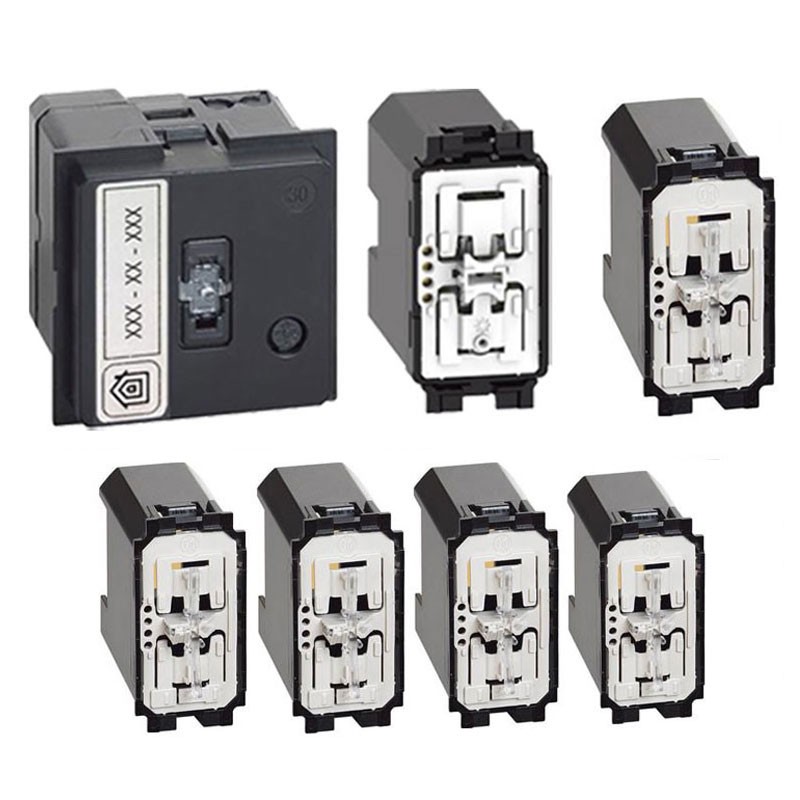

Kit components:
✔ 1 K4510C Gateway + K4570CWI Enter&Exit Command → For remote management and control of the system via Home + Control app.
✔ 5 Connected Roller Shutter Controls K4027C → To manage up to 5 roller shutters individually or in groups.
With the kit you save compared to individually purchased items
€353.35
Items Available: 29
: 4
Frequently bought together
Specifications on the components in the K2010KITN Starter Kit
Gateway to create a connected installation in the home K4510C
Gateway can be used to control lights, blinds, and electrical equipment connected to connected outlets using your smartphone and Home + Control app, voice assistants, and general control at the entrance to your home. Supplied with wireless Enter&Exit master scenario control art. K4570CWI flush-mounted necessary for the pairing procedure of all connected devices.
- Power supply 110-230 Va.c.
- Footprint 2 modules
- Compatible covers KW30M2 KM30M2 KG30M2 KW40 KM40 KG40
Electrical characteristics of the gateway
- Voltage: 100/240 V~
- Frequency: 50/60 Hz
- Standby consumption: 0.1 mA
- WiFi technology 2.4 GHz (13 channels) - IEEE 802.11 b/g/n
- ZigBee radio technology frequency: 4 GHz to 2.4835 GHz
- Wireless mesh network, self-adaptive and secure (AES 128), IEEE 802.15.4 compliant (LR-WPAN)
- Power level: < 100 mW
- Range: 200 m unobstructed space 10 m recommended between indoor products
Electrical characteristics of the general control
- Powered by lithium battery CR2032 - 3 V (supplied)
- Battery life: 8 years for 10 activations per day
- ZigBee radio technology frequency from 2.4 GHz to 2.4835 GHz
- Wireless mesh network, self-adaptive and secure (AES 128), IEEE 802.15.4 compliant (LR-WPAN)
- Power level: < 100 mW
K4027C connected roller shutter control.
Allows you to control a rolling shutter locally or remotely, also managing the opening level. It is compatible with all rolling shutters (with mechanical or electronic limit switch) controlled by a wired rolling shutter switch (max power 500 VA). It can be associated with one or more wireless controls. Not compatible with radio-controlled rolling shutter motors. Caution: connection to neutral required.
- Power supply 100-240 Va.c.
- 1 module Power (VA) 500VA
- Cover compatible KW32 / KW32M2 KM32 / KM32M2 KG32 / KG32M2
- Voltage: 100/240 V~
- Power supply: 500 VA max - 240 VAC 270 VA max - 100 VAC
- Frequency: 50/60 Hz
- Stand-by consumption: 1 mA
- Zigbee technology from 2.4 GHz to 2.4835 GHz
- Power level: REC 70-03: < 20 dBm
- Range: 200 m unobstructed space 10 m between products
Ho visto il kit e confrontato con altri siti ma questo è sicuramente il più comoetitivo
Semplici da installare, ovviamente se si ha un minimo di esperienza, ottimo prodotto.
Data sheet
- KIT: Kit Starter
Smart Roller Shutter Kit
