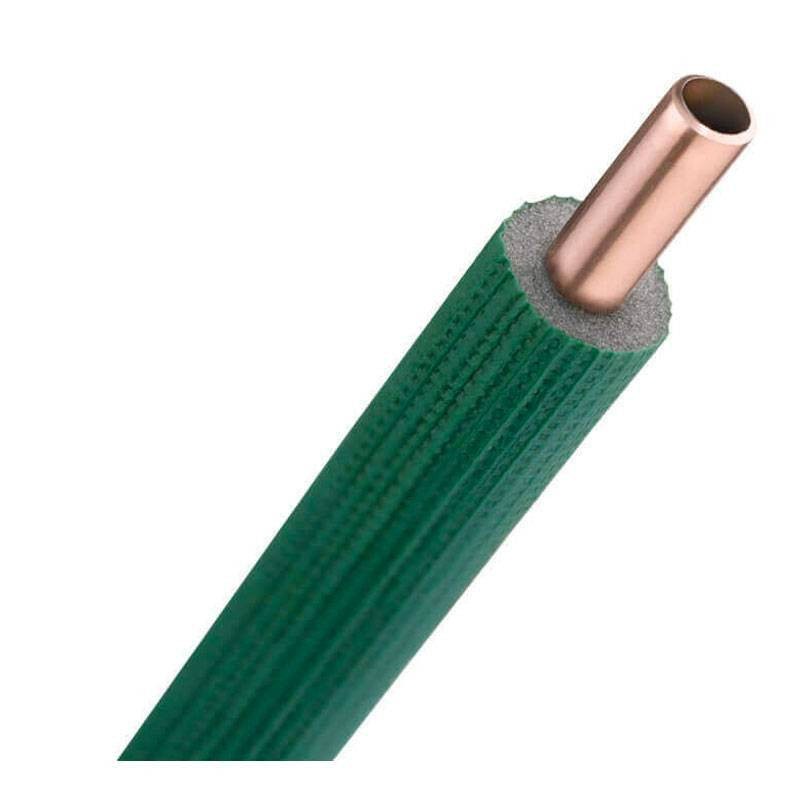

Isoclima Isogreen copper pipe for heating 16 x 1 mm 0201101604500
ISC 0201101604500
8022588071168
Isoclima Isogreen copper pipe is an excellent solution for domestic and industrial heating systems, designed for energy efficiency and long life. This product combines optimal thermal performance with simple and safe installation, with the following features:
-
Size of bare pipe: 16x1 mm
-
Total dimensions with insulation: 29 mm
-
Insulation sheath thickness: 6.5 mm
-
Water content per meter of pipe: 0.1539 l/m
Price per meter, sellable only by hank of 50 meters.
€10.36
Items Available: 50
Isoclima Isogreen copper pipe for heating 16 x 1 mm
Energy efficiency
The insulating coating reduces thermal losses, improving the efficiency of heating systems and lowering energy costs.
Durability and strength
High-quality copper ensures long service life, corrosion resistance, and compatibility with high thermal conditions and pressures.
Ease of installation
Thanks to its compact design and flexible skein, the pipe is easy to handle and install, making it ideal for professionals and do-it-yourselfers.
Key Features
-
High-quality material: corrosion-resistant copper that complies with EN 1057 standards
-
Isogreen coating: 6.5 mm insulating sheath for superior energy efficiency
-
Rated burst pressure: 28.05 MPa
-
Nominal working pressure: 7.01 MPa (ASTM B 111 M)
-
High thermal efficiency: Thermal conductivity of 0.0397 W-m?¹-K?¹
-
Fire resistance: Class 1 BL S2 D0, ideal for ensuring safety in environments
-
Density of insulation: 30 kg/m³ for optimal thermal protection
-
Thermal compatibility: Use temperatures from -30 to +95 degrees
-
Carbon residue: < 0.05 mg/dm² (well below the standard limit of 0.20 mg/dm²)
Applications:
-
Residential and industrial heating systems
-
Air conditioning and plumbing systems
-
Installations in environments requiring high energy efficiency and safety
There are no reviews
Data sheet
- Diameter: 16mm
- Type: Copper pipes for heating
- Length: 50 meters
