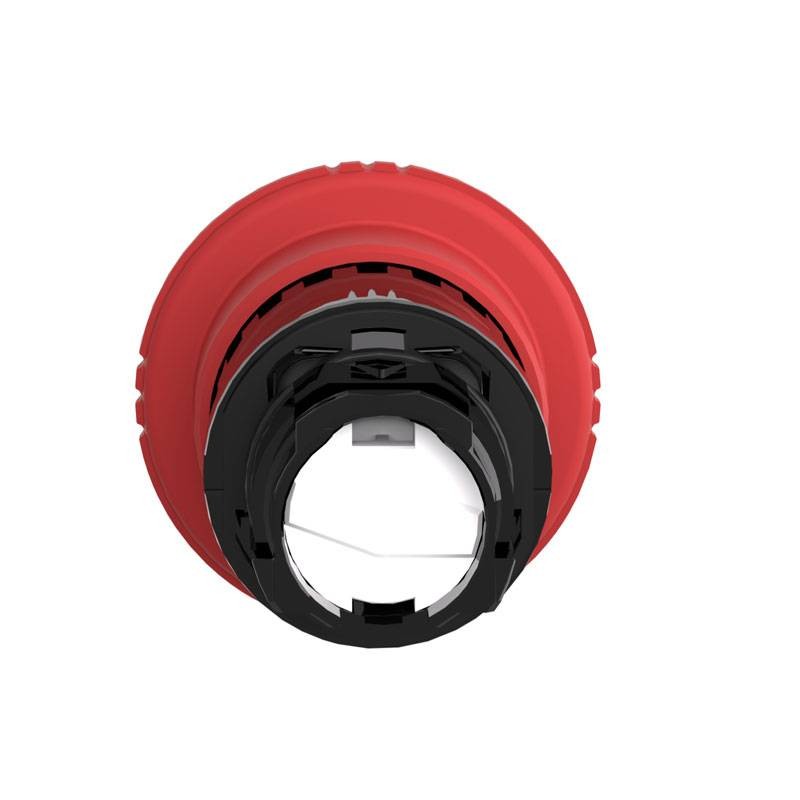

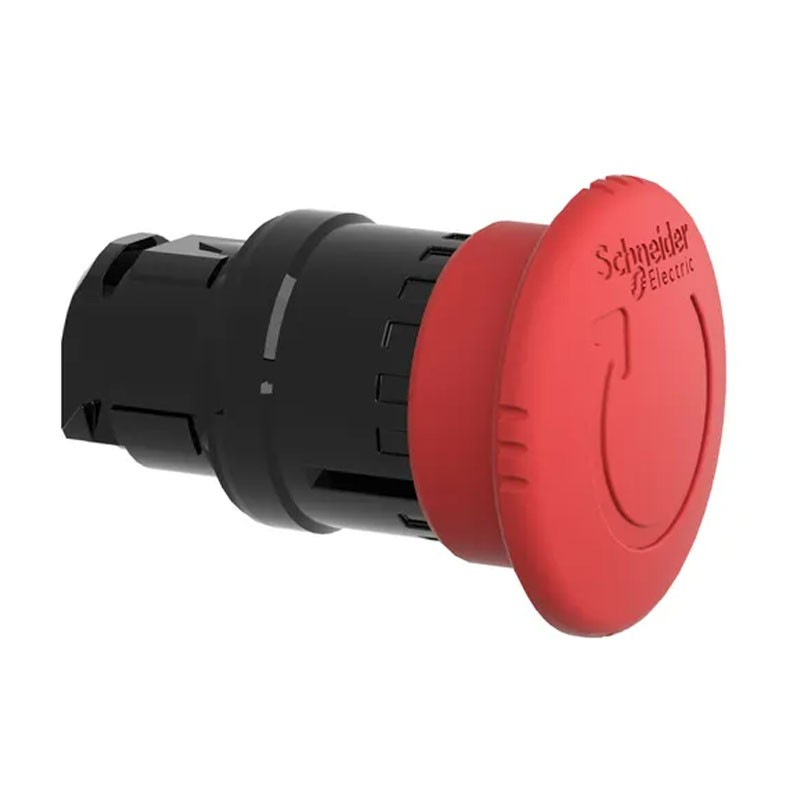

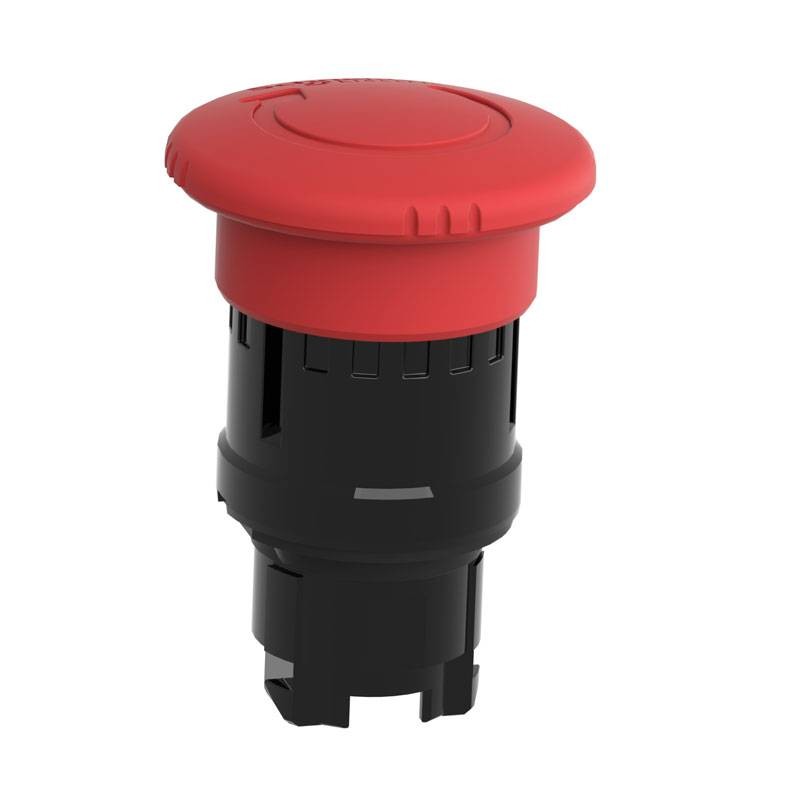

Schneider mushroom button head red Ø22 ZB4BS8447
Schneider red mushroom button head with the following features:
- Head material: Black metal
- Head shape: Circular
- Operator type: Mechanical latch
- Reset: Turn to unlock
- Head type: Standard
- Mounting diameter: 22mm
![](https://www.elettronew.com/51656-large_default/schneider-mushroom-button-head-red-o22-zb4bs8447.jpg)
Schneider mushroom button head red Ø22 ZB4BS8447
Tax included
![klarna](/../img/logo-klarna-list.png)
Frequently bought together
Schneider Electric's Harmony XB4 40mm red mushroom head emergency stop/shutoff button works with a release mechanism via locking rotation. It has a black bezel.
This emergency stop/shutdown button head, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), provides an ergonomic interface for machine control.
It is easily installed on emergency stop/shutdown buttons and compatible suits. With its vibrant color and remarkable 40 mm mushroom shape, it is clearly visually distinguishable from a distance.
With its IP66 rating, it is resistant to shock, water, dust and vibration, and is ideal for use in harsh environments.
Metal bezel. Simple modular design simplifies post-installation maintenance, modification, and adaptation of machines.
Designed to fit into a standard 22 mm hole to ensure compatibility in pre-existing machinery.
High performance : International standards and certifications (marine certification, IP66 IP67 IP69 IP69K, type 4X).
Wide operating temperature range from -40°C to 70°C ensures versatility of product use.
Features:
- Protection treatment: TH
- Storage temperature range: -40/+70°C
- Ambient operating temperature: -40/+70 °C
- Class I in accordance with IEC 61140
- IP degree of protection: IP66 complying with IEC 60529 - IP69 - IP69K
- Degree of protection IK: IK06 in accordance with IEC 50102
- Vibration resistance: 5 gn (F= 2500 Hz) complying with IEC 60068-2-6
- Shock resistance: 30 gn (duration = 18 ms) for half sine wave acceleration complying with IEC 60068-2-27 - 50 gn (duration = 11 ms) for half sine wave acceleration complying with IEC 60068-2-27
- Mechanical life: 300000 cycles

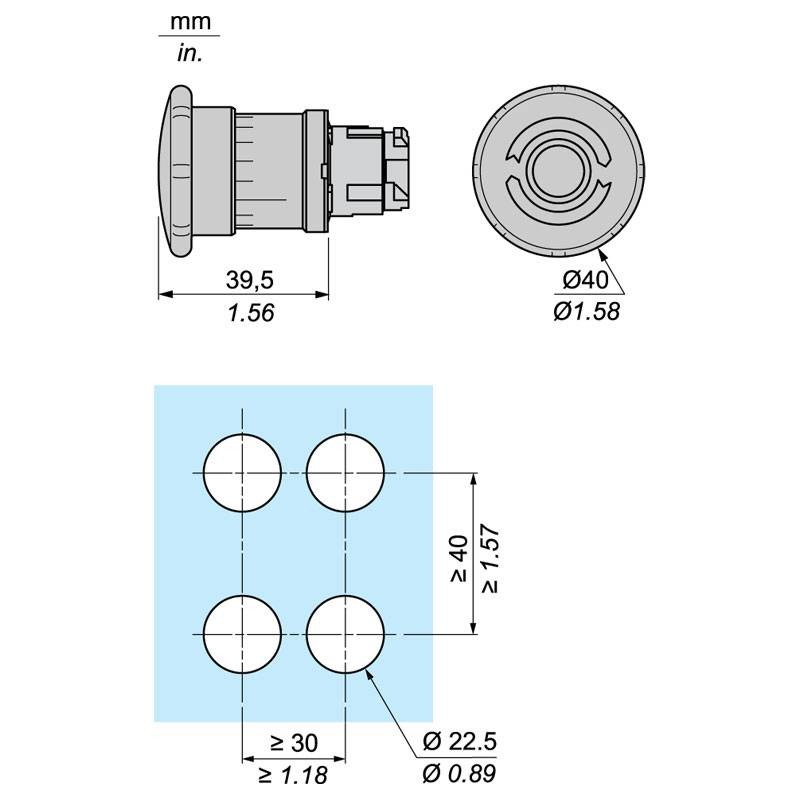

- Dimensions: height 40 mm width 40 mm depth 57 mm
Electrical composition code:
- C7 for <4 single contacts in Front mount direct to pushbutton
- C8 for <4 single and double contacts in Direct front mounting on pushbutton
- C11 for <3 single contacts in Direct front mounting on pushbutton
- C15 for <1 single contacts in Direct front mounting on button
- C10 for <4 single and double contacts in Direct front mounting on button
Data sheet
- Type:
- Mushroom push button
