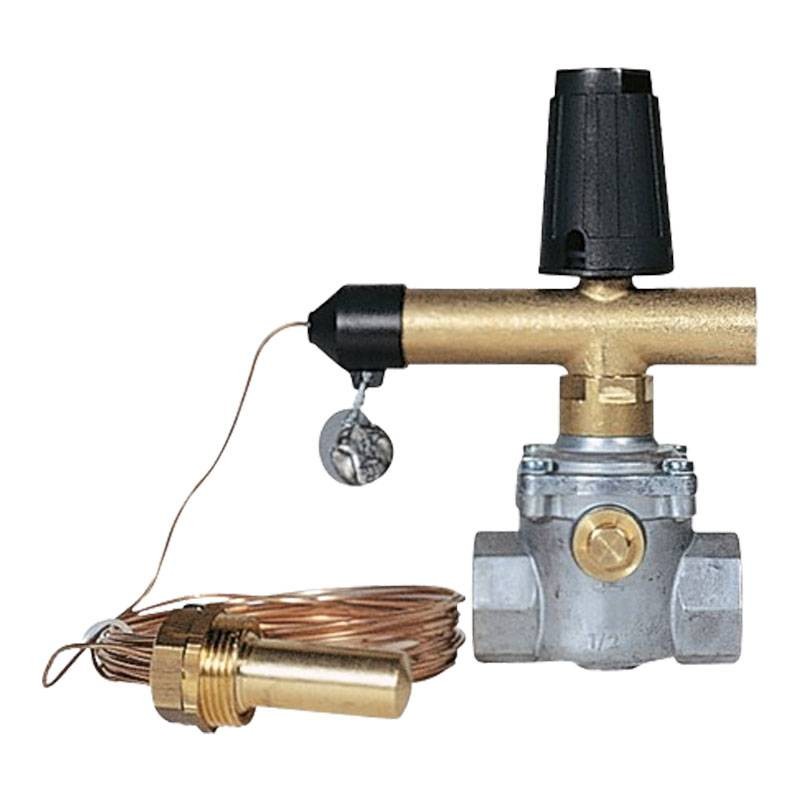

Watts Shut-off valve NVFN-FLAM F/F 2 in. fuel 0231450
CZZ 0231450
8019001010088
Watts NVFN-FLAM STOP fuel shut-off valve with the following characteristics:
- Connection: Female/Female
- Fittings: 2 inches
- 10 bar
Liquid and gaseous fuel shutoff valve, suitable for vegetable oil or biodiesel. Positive action, with manual reset. Liquid-expansion thermostatic element.
€396.60
Items Available: 4
: 2
Characteristics:
- Calibration temperature 97°C (±3°C)
- Max. sensor-side temperature 120°C
- Max. valve-side temperature 50°C
- Fuels Diesel, fuel oil, methane, propane, butane
- Capillary length 5 m
- Minimum storage temperature -40°C
- Working range 10-100°C
- Minimum valve-side temperature -5°C
- Minimum temperature on sensor side -15°C
- Body Die-cast aluminum (NVFN 15÷50) - Cast aluminum (NVFN 65-80)
- Gaskets FPM rubber (NVFN 15-20) - NBR rubber (NVFN 25÷80)
- Plug spring Stainless steel AISI304
- Capillary Electrolytic copper
- Temperature-sensitive element To liquid expansion
There are no reviews
Data sheet
- Type: Shut-off valves
- Connection: F/F
- Connections: 2 inches
