Watts bimetallic thermometer TB-80/VE 0-120 degrees rear connection PT4B507005
CZZ PT4B507005
3800152528653
Watts TB-80/VE 0-120°C bimetallic thermometer with G 1/2 inch rear connection, galvanized steel case and brass thermowell. Ideal for heating systems:
-
0 to 120°C measurement for precise monitoring
-
Galvanized steel case and brass thermowell for maximum durability
-
G 1/2-inch threaded connection conforms to technical standards
-
Accuracy class 2 according to EN 13190
-
100 mm long stem for accurate readings even in depth
-
Complete with copper alloy sheathing
-
Meets INAIL (formerly ISPESL) technical requirements
-
European version without chrome-plated ring
-
Fimet Watts logo on the dial
€9.23
Items Available: 79
: 15
Watts bimetallic thermometer TB-80/VE 0-120 degrees G1/2 PT4B507005
Accurate and reliable measurement
The Watts TB-80/VE bimetallic thermometer is designed to ensure reliable temperature readings in heating systems. With a graduated scale from 0 to 120°C and accuracy class 2, it offers accurate monitoring in accordance with EN 13190. Ideal for checking temperatures in boilers, thermal circuits and heating systems.
Rugged and durable construction
Made of high-quality materials, this bimetallic thermometer features a corrosion-resistant galvanized steel case and a brass thermowell that protects the stem and extends its life. The G 1/2-inch threaded rear connection ensures stable and secure mounting, facilitating installation in a variety of system configurations.
Long stem for optimized measurements
With a 100-mm stem, the TB-80/VE thermometer enables accurate temperature measurements even in deep locations in the system. The clearly readable scale from 0 to 120°C allows for quick temperature verification, making it an essential tool for maintainers and installers.
Compliance and safety
This thermometer meets INAIL (formerly ISPESL) technical requirements, ensuring full compliance with safety and performance regulations. It is a certified instrument for use in professional and industrial environments, ensuring reliability and quality.

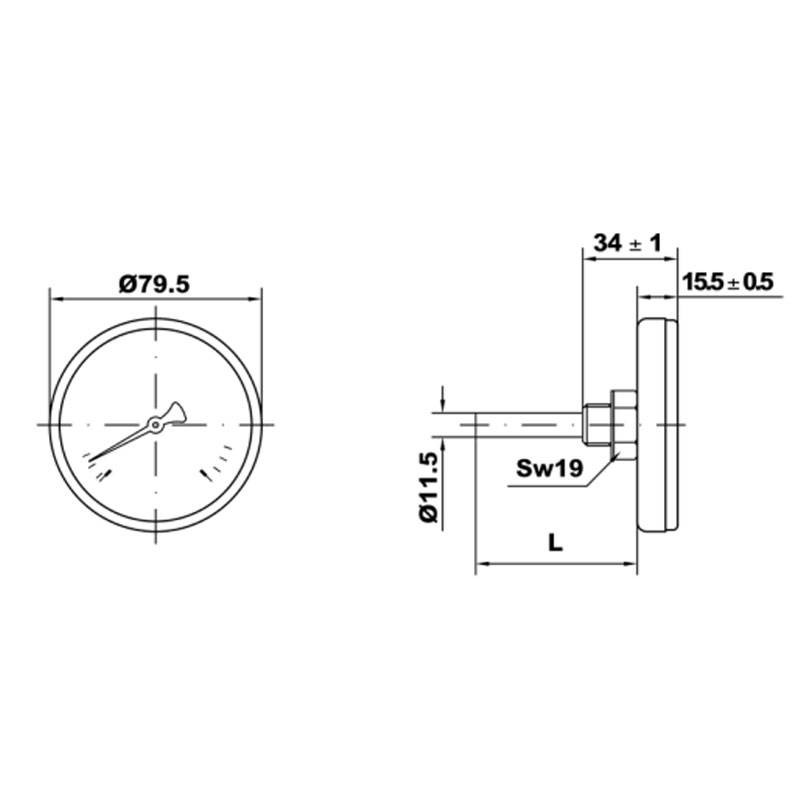

Technical Specifications
| Feature | Detail |
|---|---|
| Shank | 100 mm |
| Scale | 0-120 °C |
| Rear connection | G 1/2 inch |
| Sheath | Copper alloy, complete |
| Dial | Complies with INAIL standards |
| Version | European without chrome ring |
| Logo | Fimet Watts on the dial |
| Accuracy class | 2 |
| Case | Galvanized steel |
| Dial material | White aluminum |
| Index | Black plastic |
| Thermometer element | Bimetal spiral |
| Sheath material | Brass |
| Reference Standards | EN 13190 |
| Temperature limits | Ambient: -20 ... +60 °C Fluid: As indicated on the scale Storage: -20 ... +60 °C |
| Operating temperature. | As indicated on the scale |
| Thermal drift | Not applicable |
| Degree of protection | IP31 per EN 60 529/IEC 529 |
| Individual weight | 0.130 kg |
There are no reviews
Data sheet
- Type: Thermometers
- Connections: 1/2 inches
