Far 3956 3/4" M mixing valve with outlets for plumbing systems 3956 34
RFR 3956 34
Far 3956 mixing valve, with outlets for plumbing systems with male connections:
- 3/4" inch size
- Adjustment range: 30÷65°C
- Connections: male complete with pipe unions and gaskets
- Maximum inlet temperature: 95°C
- TEA®PLUS internal/external surface treatment
![](https://www.elettronew.com/59560-large_default/far-3956-3-4-m-mixing-valve-with-outlets-for-plumbing-systems-3956-34.jpg)

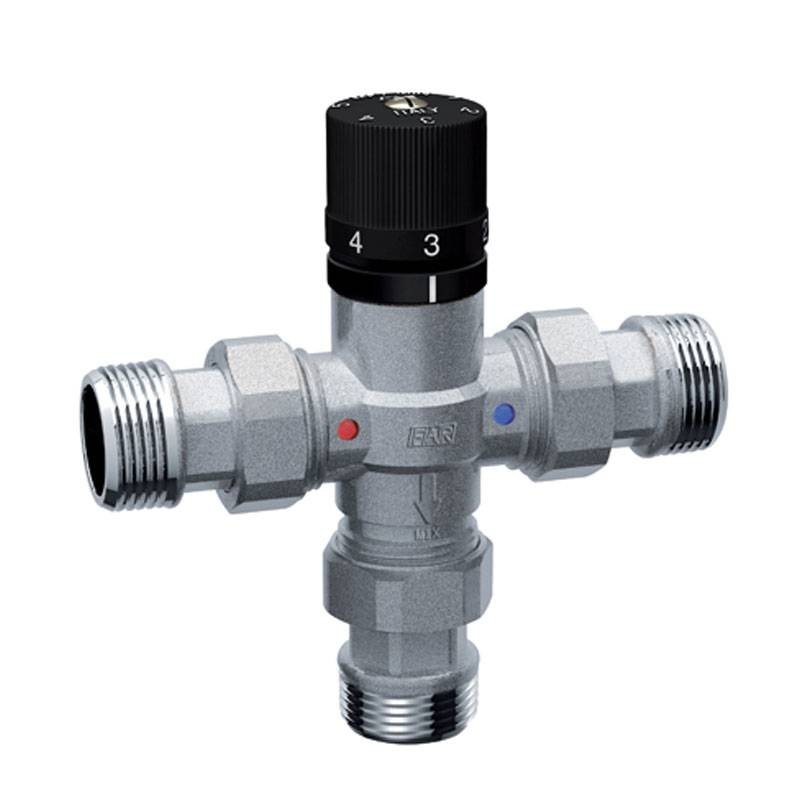

Far 3956 3/4" M mixing valve with outlets for plumbing systems 3956 34
€65.35
€65.35
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 2
SPECIFICATION ITEMS:
- Mixing valve, for sanitary systems, made of chrome-plated brass, with 1/2"-3/4-1"-1"1/4-1"1/2 male connections complete with pipe unions and gaskets, control knob, made of ABS, fitted with numbered selector from 1 to 5 corresponding to a control range of 30÷65°C and temperature locking device, anti-burn function, wax thermosensitive element. Max inlet temperature 95°C. Max operating pressure 10 bar.
Description:
- TERMOFAR mixers keep constant at the set value, the temperature of the mixed water sent to the users of the sanitary system. To prevent the use of water that is too hot such as to cause possible burns there is an anti-scald function that in case of absence of cold water also blocks the flow of hot water
Operation:
- The mixer is equipped with a temperature-sensitive element that senses the temperature of the mixed fluid. The sensor is directly immersed in the mixed water, which allows for high accuracy and speed of response. The sensor continuously detects, changes in water temperature and adjusts the cold and hot water openings until the right proportion and thus the set temperature is achieved.
Data sheet
- Type:
- Thermostatic mixers
- Connection:
- M
- Connections:
- 3/4 inches
