Comelit Ultra series audio system base kit for Simplebus system UT8270
COE UT8270
8023903451528

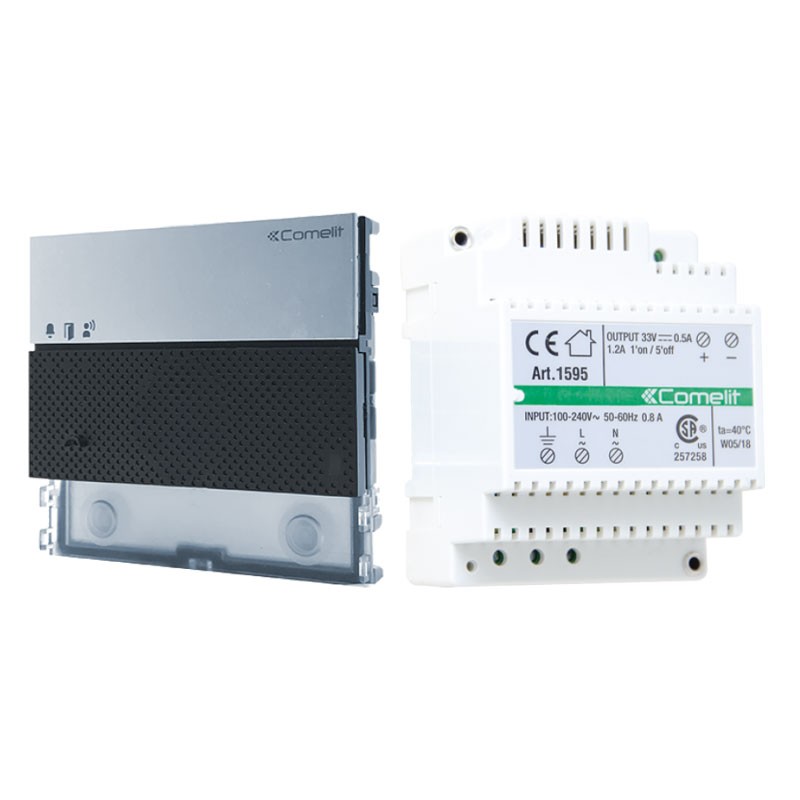

Comelit Ultra series audio system base kit for Simplebus system consisting of:
- Comelit audio module for Ultra Simplebus1 pushbutton panel (code UT1010)
- Comelit power supply 33vdc input 120-230vac for Ikall pushbutton panel (code 1595)
€161.40
Items Available: 7
: 2
Frequently bought together

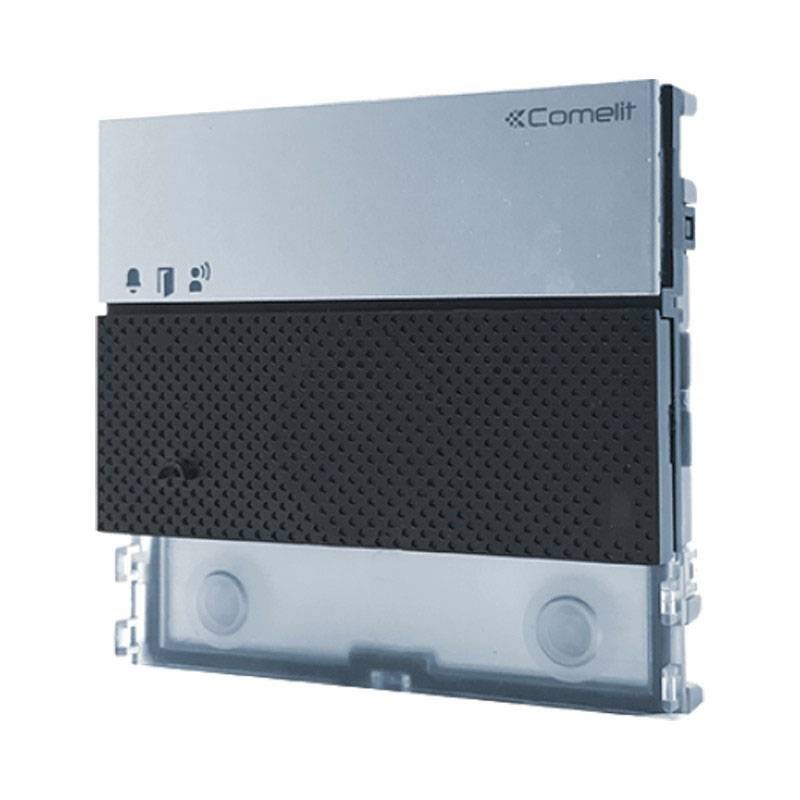

Comelit sound module for Ultra Simplebus1 UT1010 push button panel:
Advantages:
- Easy to install and simple to configure thanks to smart programming of call buttons
- Twilight sensor for automatically turning off the backlighting of name tags during daylight hours
- Omnidirectional digital microphone and dual speakers for high-fidelity audio
- Audio/visual aid signals for the disabled that can be activated by programming
- Prepared for 2 call buttons
- To be completed with cap, single button or double button made of professional plastic with anti-yellowing and anti-opacification treatment or aluminum
- Adjustments and programming without removing the module
- Dimensions: 1 Ultra module, the new most technologically advanced push-button panel with maximum ease of installation
Features:
- Microphone MEMS digital audio sensor, omnidirectional
- Speaker 28mm (Ø), 8 Ohm, 1W (2)
- Supply voltage 33VDC
- Standby power consumption (W) 1.5
- Maximum power consumption (W) 3.5
- Number of buttons (no.) 2
- Terminals L L V+ V- COM NC NO SE GND RTE TX- TX+ RX- RX+
- Number of inputs (no.) 1
- Number of outputs (no.) 2
- Micro-USB communication ports
- Twilight sensor
- Speaker volume
- Microphone volume
- Backlight brightness
- Operating temperature (°C) -25 ÷ 55
- Operating humidity (RH max - %) 25 ÷ 95
- Environmental class IV
- Number of auxiliary relays (no.) 1
- Input for local door opener button
- Input for door open signaling
- Visual signaling of system status
- Audible signals system status
- Voice synthesis system status
- Button type Mechanical

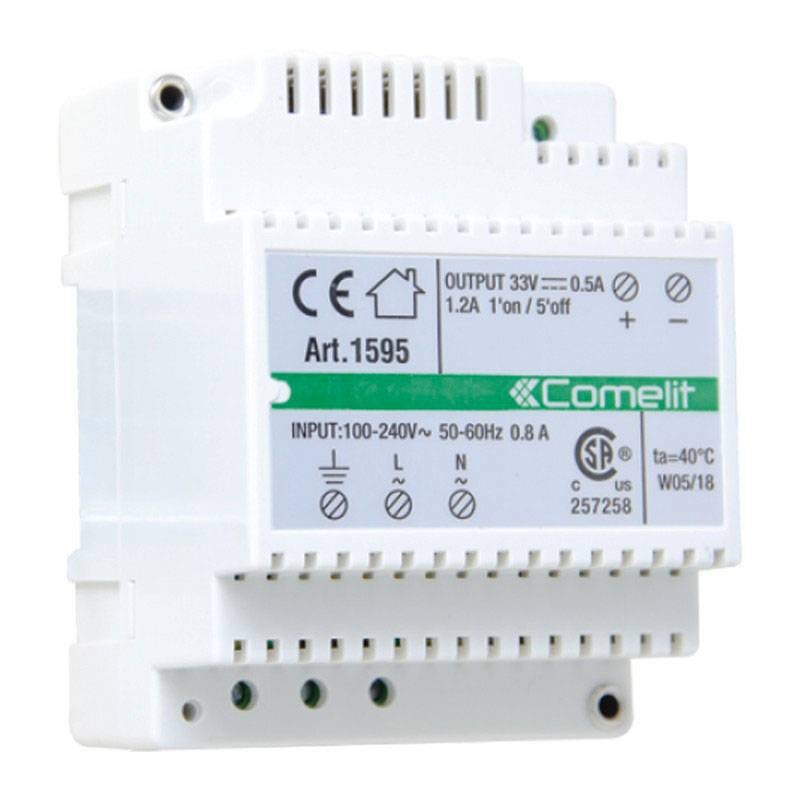

Comelit 33vdc input 120-230vac power supply for Ikall pushbutton panel:
Features:
- Supply voltage 120÷230 VAC
- Supply voltage output 33VDC
- Max output current (A) 0.5
- Max inrush current (A) 1.2
- Applicable to DIN rail Yes
- Number of DIN modules (no.) 4
- Dimensions: Height (mm) 62 Width (mm) 71.7 Depth (mm) 90
- Coating type Plastic
- Color White
- Operating temperature (°C) -20 to 40
- Operating humidity (% RH max) <90
- Maximum power output (W) 60
There are no reviews
Data sheet
- KIT: Intercom Base Kits
- System: 2-Wire
