Comelit Single-family intercom kit CIAO MINI 2 wires Simplebus KCA2061B
COE KCA2061B
8023903463750
Intercom kit Comelit KCA2061B CIAO MINI, Simplebus 2-wire system, complete and pre-programmed for single-family installations. Expandable up to 8 calls, ideal for homes, offices, or commercial activities.

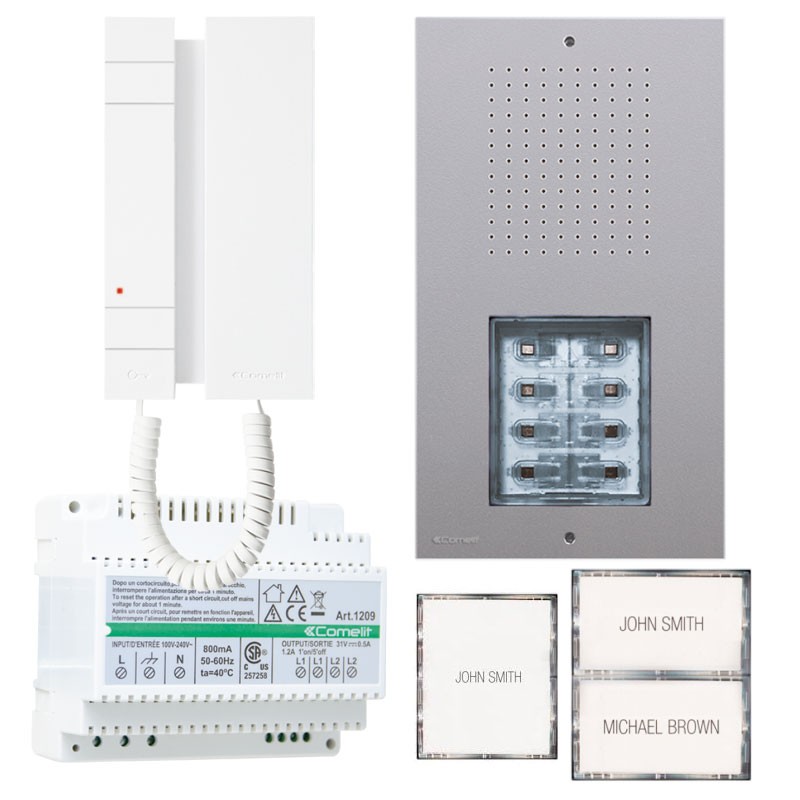

The Kit includes:
- 1 Outdoor panel Ciao series CA2100B (up to 2 calls)
- 1 Intercom Mini Simplebus 2 series (code 2738W/A)
- 1 Simplebus 2 power supply (code 1209)
The KCA2061B kit is designed to grow with the user's needs, by adding (separately not included in the kit) button modules CA9211 (4 calls) or CA9212 (8 calls) it is possible to expand the system up to 8 independent stations.
This flexibility makes the kit suitable not only for single-family homes but also for small condominiums, offices, or professional studios.
The junction terminal art. 1214/2C is not provided with the intercom included in the kits.
€164.53
Items Available: 50
: 9
Frequently bought together
Comelit KCA2061B CIAO MINI: ready-to-use intercom kit
The single-family intercom kit CIAO MINI KCA2061B by Comelit is a practical and modern solution for audio communication in residential or commercial buildings. Based on Simplebus 2-wire technology, it ensures a quick, clean, and polarity-free installation, reducing wiring time and costs.
The system is already programmed and ready to use, making it ideal for installers and users who desire a plug & play configuration.
Simplebus 2 Technology: simplicity and reliability
The Simplebus 2 system by Comelit uses only two non-polarized wires for the transmission of audio, power, and commands, ensuring stability and reduction of electrical interference. The installation is extremely simplified, ideal for renovations or new constructions, without the need for complex cables or advanced configurations.
Elegant and functional design
Both the CIAO CA2100B entry panel and the Mini 2738W/A intercom stand out for their modern and compact design, in line with Comelit's style. The Mini intercom, in particular, features an ergonomic handset, soft-touch buttons, and essential lines, perfect for contemporary environments.

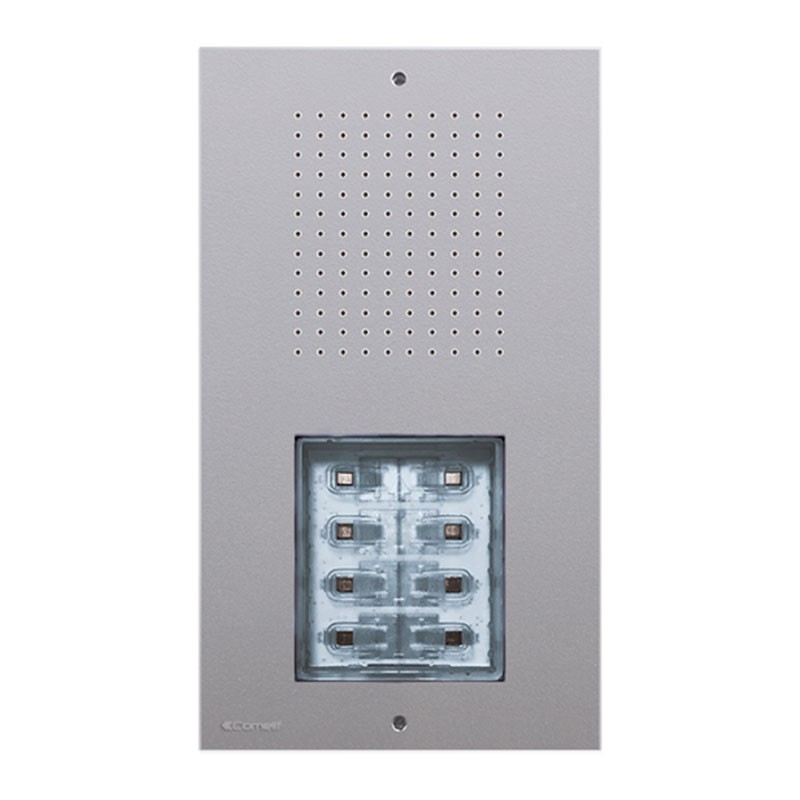

Ciao CA2100B Entry Panel
- External audio entry panel series Ciao for Simplebus 2 system
- Prepared for systems from 1 to 8 calls
- Front in technopolymers, resistant to weather conditions (protection degree IP54 and paint with UV-resistant treatment) and vandalism (protection degree IK08)
- Smart programming function of the buttons
- Wall installation support included
- Buttons for 1, 2, 4, or 8 call configurations available separately
- Up to 4 button modules art. CA2200A can be added to the entry panel (both horizontally and vertically) to reach a maximum number of 20 call buttons.
| GENERAL DATA | |
|---|---|
| Type | Monoblock |
| Height | 172 mm |
| Width | 100 mm |
| Depth | 28 mm |
| Colour | Grey RAL 9006 |
| Material | Technopolymers |
| Wall mounting | Yes |
| COMPATIBLE SYSTEMS | |
| System | Audio Simplebus 2 with power supply art. 1210 / 1210A |
| AUDIO CHARACTERISTICS | |
| Microphone | Ø 4 mm, Omnidirectional |
| Speaker | Ø 50 mm, 8 Ohm, 0.2 W |
| ELECTRICAL CHARACTERISTICS | |
| Type of power supply | From video intercom bus |
| Power supply voltage | 33 VDC |
| Stand-by consumption | 1.7 W |
| Maximum consumption | 7.6 W |
| HARDWARE CHARACTERISTICS | |
| Type of call | Buttons |
| Type of buttons | Mechanical |
| Number of buttons | 8 |
| Backlighting | White |
| Terminals | L L COM DO RTE C NO NC SE+ SE (removable) |
| Number of inputs | 2 |
| Number of outputs | 1 |
| Type of outputs | Relay (C-NO-NC, 4A @12÷24 VAC/VDC, peak 10A); SE: unlocking pulse 4A, holding current 200mA for locks 12VAC/DC (max impedance 18Ω) |
| ADJUSTMENTS | |
| Speaker volume | Yes |
| Backlighting brightness | Yes |
| ENVIRONMENTAL AND COMPLIANCE CHARACTERISTICS | |
| IP protection degree | IP54 |
| Vandal-proof degree (IK) | IK08 |
| Operating temperature | -25 ÷ +55 °C |
| Operating humidity (max RH) | 20 ÷ 95 % (without condensation) |
| Environmental class | IV |
| Certifications | RoHS II - 2011/65/EU (EN IEC 63000:2018), EMC 2014/30/EU (EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011) |
| MAIN FUNCTIONS | |
| Door opener | Yes |
| Number of auxiliary relays | 1 |
| Input for local door opener button | Yes |
| Open door signal input | Yes |
| Visual system status signals | Yes |
| System status acoustic signals | Yes |

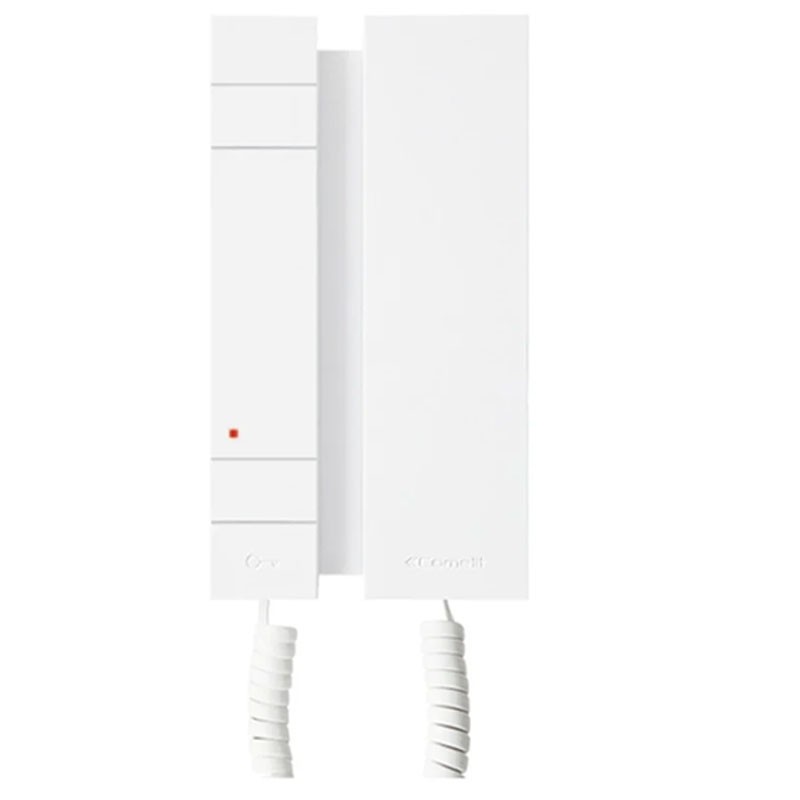

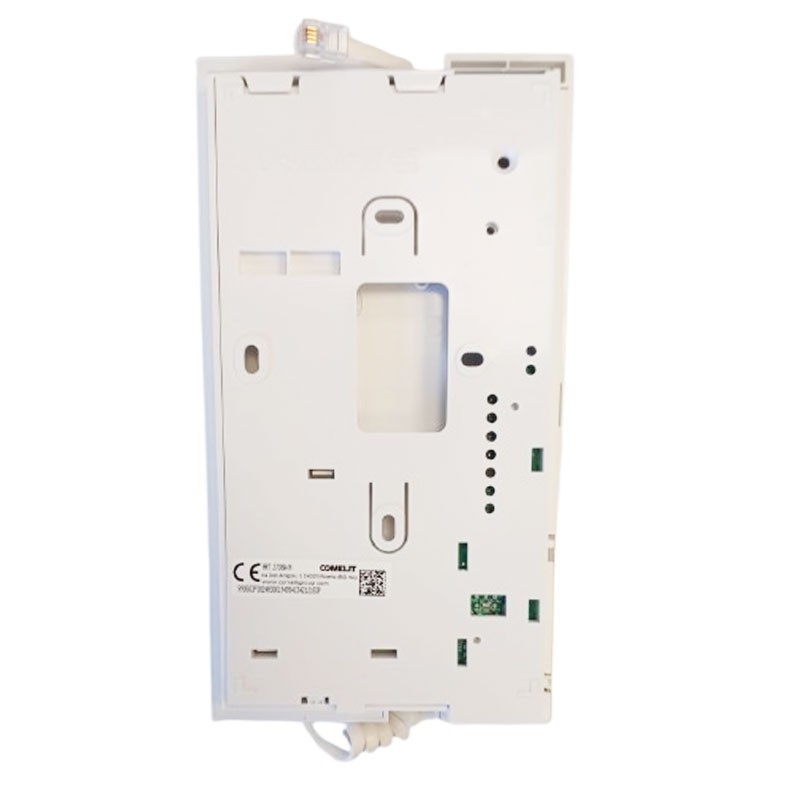

Mini Intercom 2738W/A Simplebus2
Mini series intercom with handset for Simplebus 2 audio systems. It is equipped with a door opener button, a button for additional services such as calls to the concierge switchboard..., call volume adjustment, Silent mode (Privacy), and an input for floor call.

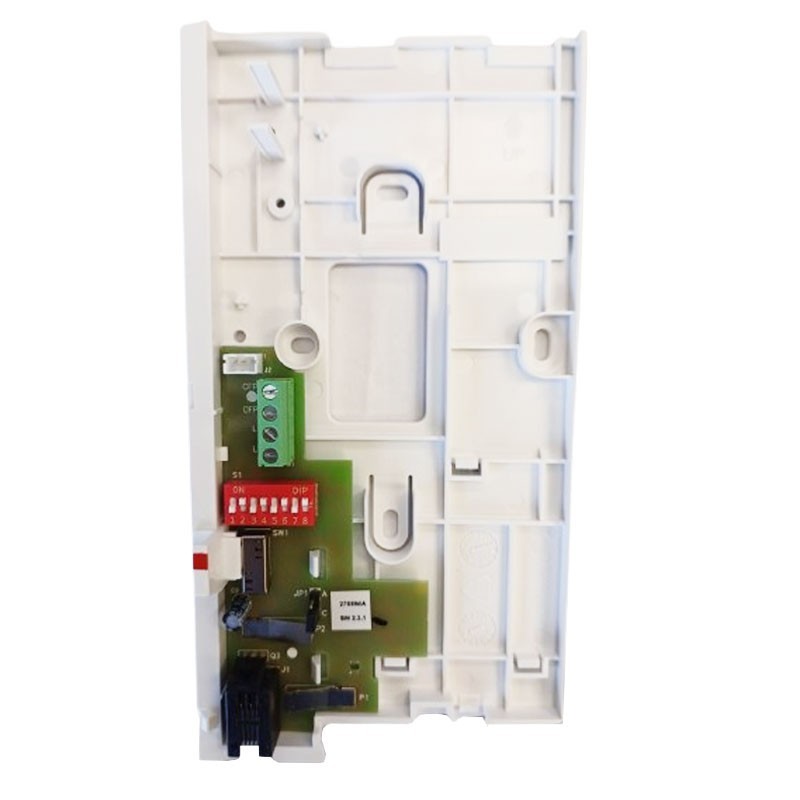

The handset attachment to the base is facilitated by invisible magnetic inserts. It is possible to purchase the additional card art. 2735 separately to have an extra button with voltage-free contacts and call repetition.
| GENERAL DATA | |
|---|---|
| Height | 190 mm |
| Width | 103 mm |
| Depth | 28 mm |
| Material | ABS |
| Weight | 300 g |
| Wall mounting | Yes |
| Table base mounting | Yes, with dedicated accessory |
| COMPATIBLE SYSTEMS | |
| Audio/video Simplebus 2 with power supply art. 4888C | Yes |
| Audio/video Simplebus 2 with power supply art. 1210 / 1210A | Yes |
| Audio/video Simplebus 2 kit with power supply art. 1209 | Yes |
| Audio Simplebus 2 with power supply art. 1210 / 1210A | Yes |
| AUDIO CHARACTERISTICS | |
| Microphone | Ø 9.6 x 6.9 mm, omnidirectional |
| Speaker | Ø 50 mm, 50 Ohm, 0.25 W |
| Technology | Full-Duplex |
| ELECTRICAL CHARACTERISTICS | |
| Power supply type | From video intercom bus |
| Power supply voltage | 22 ÷ 35 VDC |
| Maximum absorption | 0.8 W |
| HARDWARE CHARACTERISTICS | |
| Button type | Mechanical |
| Service buttons | Door opener |
| Terminals | L L CFP CFP |
| Number of inputs | 1 |
| ADJUSTMENTS | |
| Ringtone volume | Yes |
| ENVIRONMENTAL AND COMPLIANCE CHARACTERISTICS | |
| Operating temperature | -5 ÷ +40 °C |
| Operating humidity (max RH) | 25 ÷ 90 % |
| Environmental class | III |
| Certifications | RoHS II - 2011/65/EU (EN IEC 63000:2018), EMC 2014/30/EU (EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011) |
| GENERAL CHARACTERISTICS | |
| Door opener | Yes |
| Call absorption | 25 mA |
| Communication absorption | 20 mA |
| Maximum current absorption | 25 mA |
| Minimum absorption | 1 mA |
| Switchboard call | Yes |
| Actuator command | Yes |
| Input for external call | Yes |
| Silent mode (Privacy) | Yes |

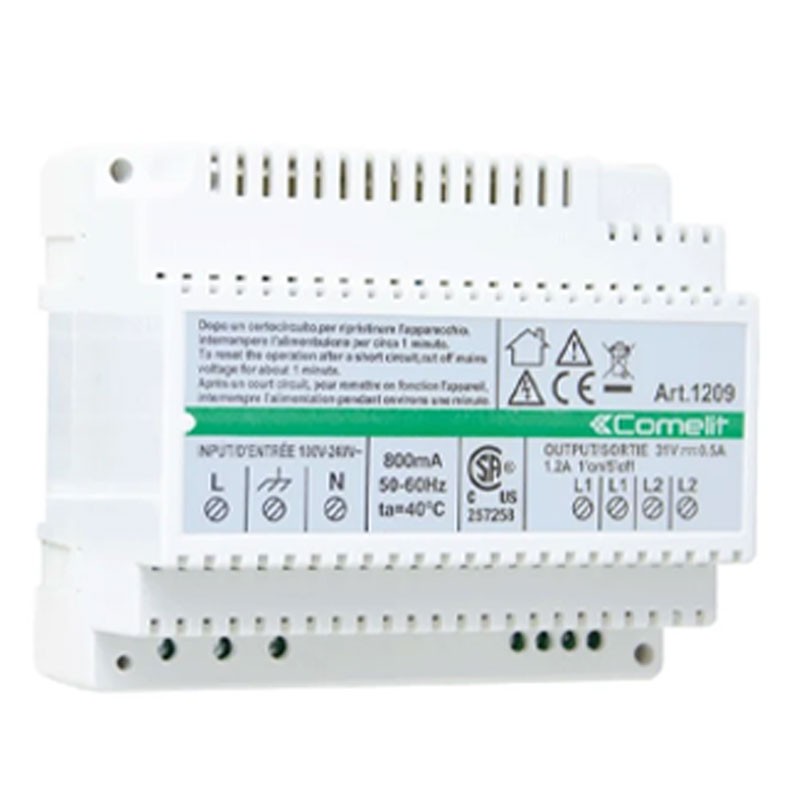

Video Power Supply Simplebus 2 1209
33 VDC power supply for Simplebus 2 KIT to which the external and internal units can be directly connected. Equipped with overload and short circuit protections. Input voltage 110-240 VAC. Dimensions: 106 x 62 x 89 mm (6 DIN modules).
| MAIN CHARACTERISTICS | |
|---|---|
| Power supply voltage | 110 ÷ 240 VAC |
| Maximum current supplied | 1.2 A |
| DIN rail applicable | Yes |
| Number of DIN modules | 6 |
| GENERAL DATA | |
| Height | 62 mm |
| Width | 106 mm |
| Depth | 89 mm |
| Material | Plastic |
| Colour | White |
| Operating temperature | -5 ÷ +40 °C |
| Operating humidity (max RH) | 25 ÷ 95 % |
| COMPATIBILITY | |
| Audio/video system kit | Yes |
| ELECTRICAL CHARACTERISTICS | |
| Maximum power output | 37 W |
Good value for money, I haven t installed it yet, but it looks sturdy and has a good reputation
Tutto perfetto,anzi la consegna anche in anticipo
Data sheet
- KIT: Intercom Kits
- Degree of protection: IP54
- Model: Single-family house
- System: 2-Wire
