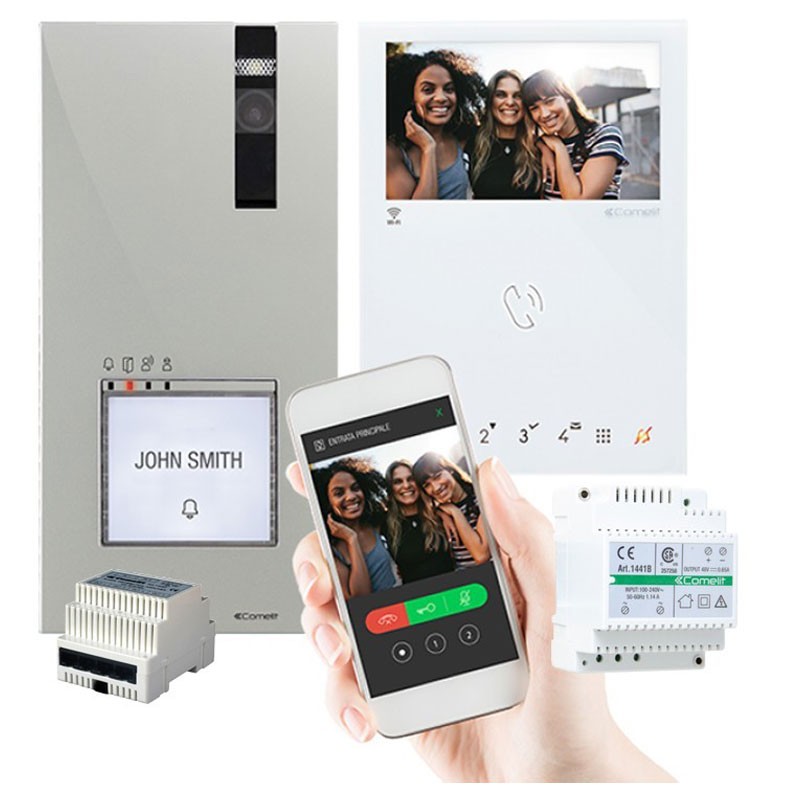

KIT Components Specifications

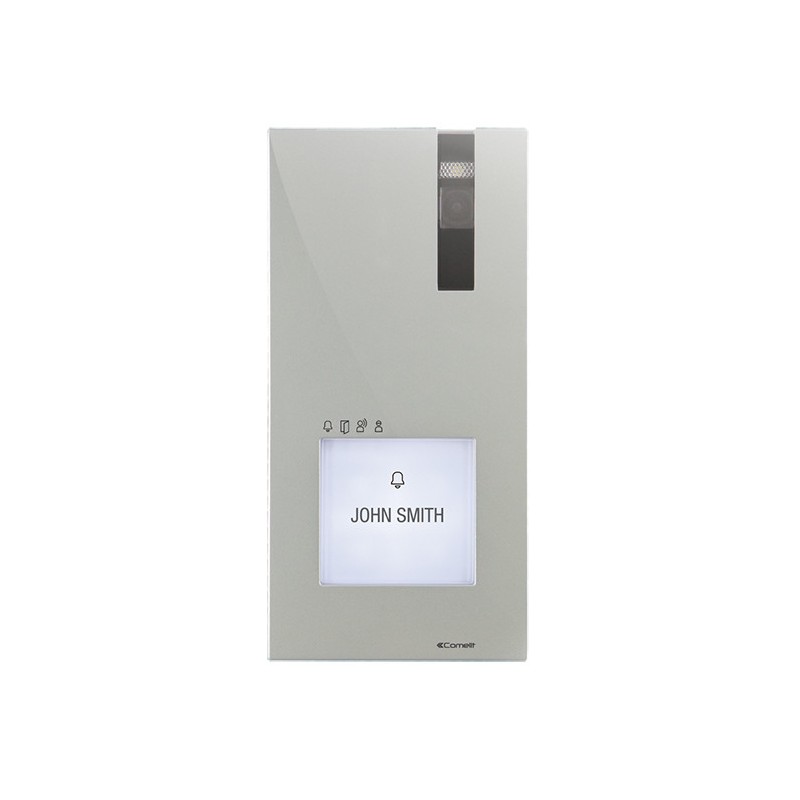

QUADRA ENTRY PANEL FOR VIP 4899K KIT

• Quadra series pre-programmed wall-mounted video entry panel for kit art. 8561V
• Die-cast aluminium front panel, colour camera and single LED for night lighting
• Capacitive keys with possibility of setting from 1 to 4 call keys via dip switch
• LED signalling for call sent, door opener activated, audio system activated and system busy
• Loudspeaker volume and speech balance adjustment
• POE power supply
• Dimensions: 95x195x28mm.

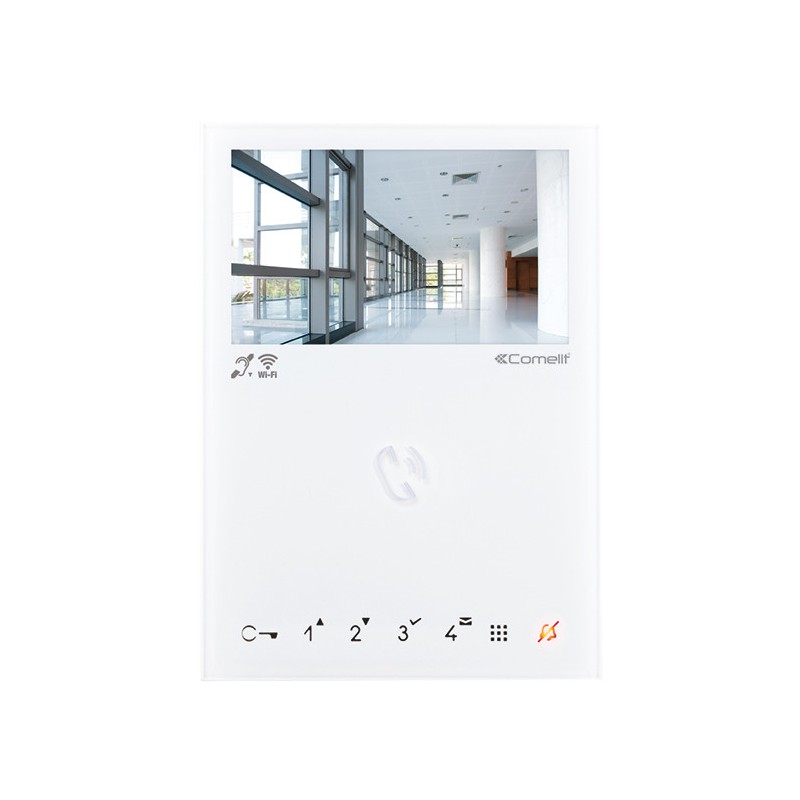

MINI HF WI-FI MONITOR FOR KIT. VIP 6742WK

• Wi-Fi hands-free colour monitor for ViP system pre-programmed for kit art. 8561V
• 4.3" / 16:9 colour screen.
• Resolution 480x272 pixel
• Allows adjustment of backlight intensity, speech volume and ringer volume
• Equipped with 7 soft touch buttons as standard: door opener button with door open signalling LED, privacy function button with signalling LED, 4 programmable buttons and 1 button for access to the menu.
• Has 3 programmable inputs for various functions
• Can also be used on standard PoE systems
• It is possible to customize the ringtone and the video-secretary function with message for absence
• Video format H.264
• Dimensions (W x H x D): 115x160x22mm.

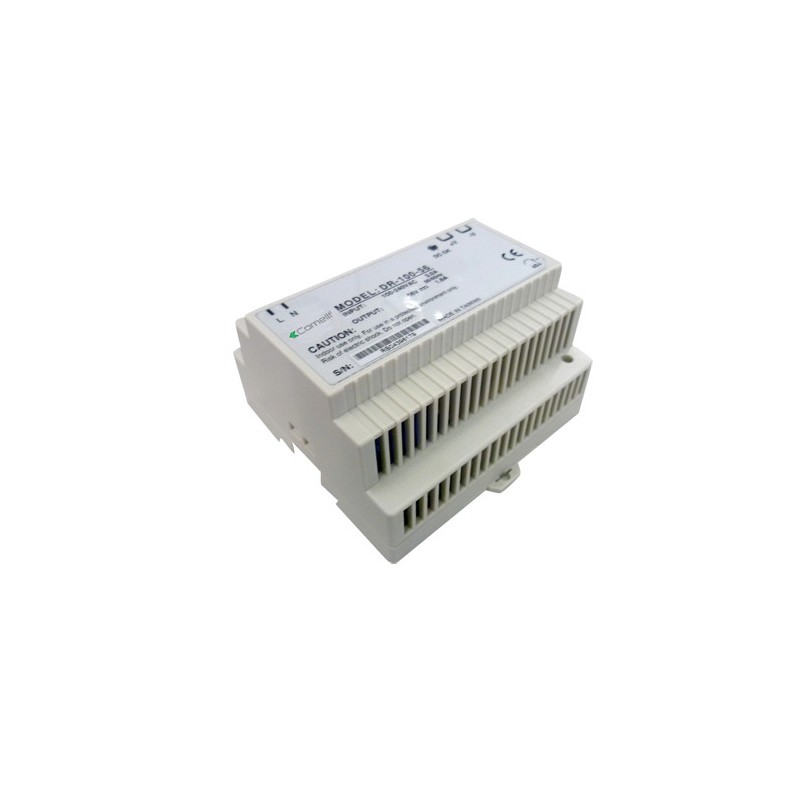

30W POWER SUPPLY. VIP 1441B

• Power supply with 110Vac/240Vac input and 48Vdc output
• Power 30W
• Din rail power supply unit (4 DIN modules)
• Dimensions: 70x90x62mm

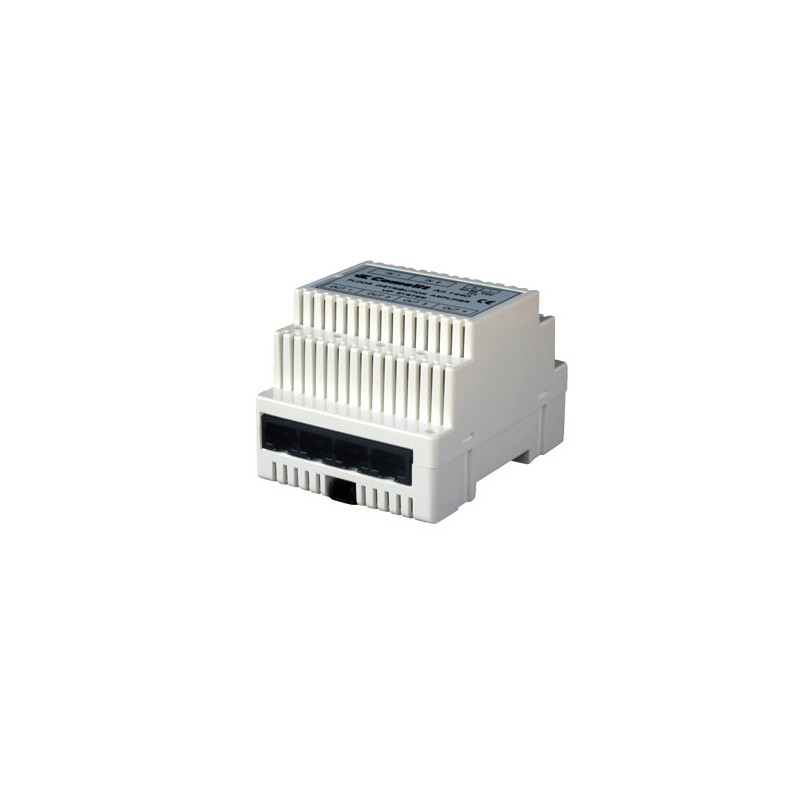

FLOOR SHUNT IP (VIP) 1440

• Floor shunt with one input, one output (10/100Mbit/s) and 4 taps (10 Mbit/s)
• Dimensions: 71x89x62 mm (4 DIN modules).
