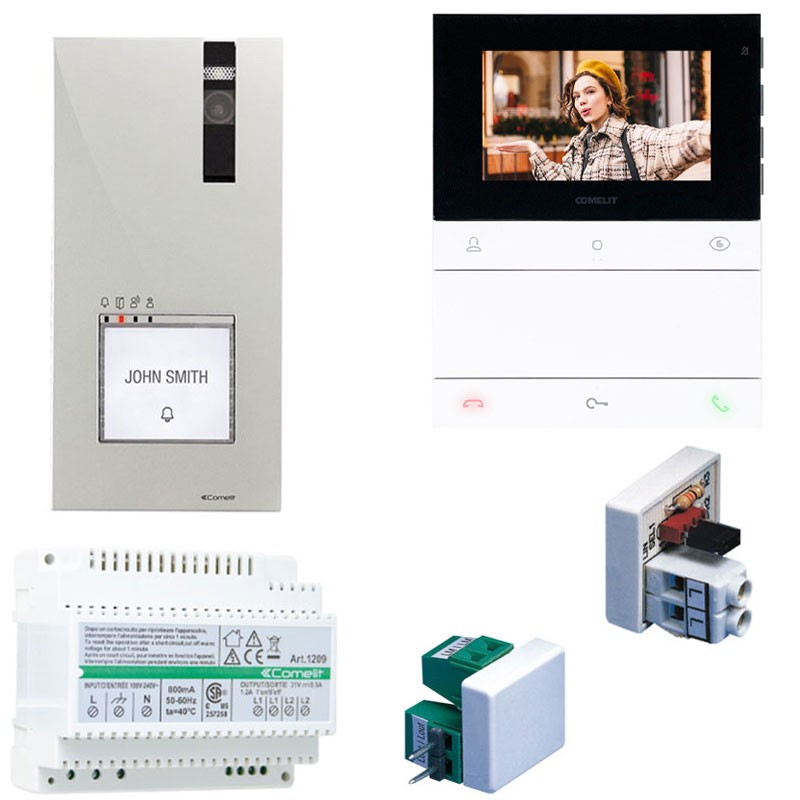

Technical specifications of individual kit components:

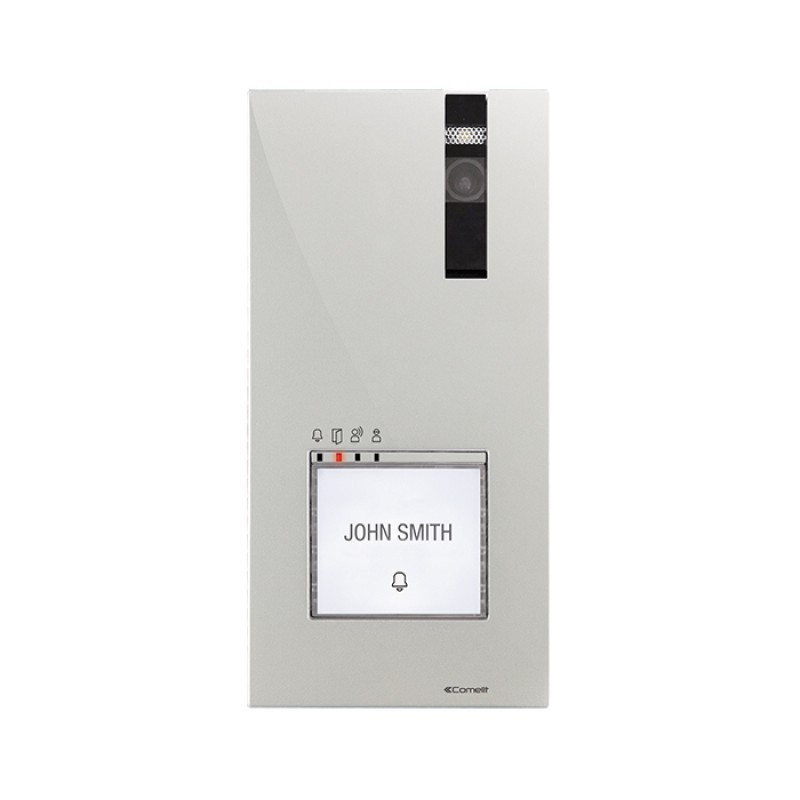

1 Quadra series wall-mounted door station (code 4893M): Wall-mounted video intercom door station, Quadra series, for Simplebus2 system. Die-cast aluminum front, wide-angle color camera and single LED for night lighting. Mechanical keys with possibility of setting from 1 to 4 call keys by DIP-switch. Signaling LEDs for call sent, door opener activated, speech activated and system busy. Speaker volume and speech balance adjustment. Power supply from bus line. Dimensions: 95x195x28 mm.




Technical features:

• Monoblock type
• Height (mm) 195
• Width (mm) 95
• Depth (mm) 28
• Product weight (g) 300
• Product color Gray RAL 9006, Black RAL9005
• Wall mounting Yes
• Compatible systems: Simplebus 2 audio/video kit with power supply art. 1209 Yes
• Camera features: Color camera, Sensor type 1/4" CMOS, Lens size fixed optics (mm) 2.1, Viewing angle (H x V - °) 85 x 72, Sensitivity (lux) 0.1 (color).
• Power supply type Power supply from video intercom bus.
• Supply voltage 33VDC
• Maximum power consumption (W) 8.25
• Type of call Buttons
• Type of buttons Mechanical
• Number of buttons (no.) 4
• Color of backlighting White
• Terminals LL RTE COM DO SE- SE+C NC NO
• Number of inputs (no.) 2
• Number of outputs (no.) 2
• Type of outputs Relay (C-NO-NC, 10A@12÷24 VAC/VDC), SE: unlock pulse of 4A, holding current of 200mA for 12VAC/DC locks (maximum impedance 18 Ohm)
• Adjustments: Speaker volume Yes, Microphone volume Yes
• Degree of protection IP54
• Vandal-resistant degree of protection IK08
• Operating temperature (°C) -25 to 55
• Operating humidity (RH max) (%) 25 ÷ 95
• Environmental class IV
• CE RoHS II certifications - 2011/65/EU (EN IEC 63000:2018), EMC 2014/30/EU (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)
• Main functions: Door opener S, Number of auxiliary relays (No.) , Input for local door opener button S, Input for door open signal Yes

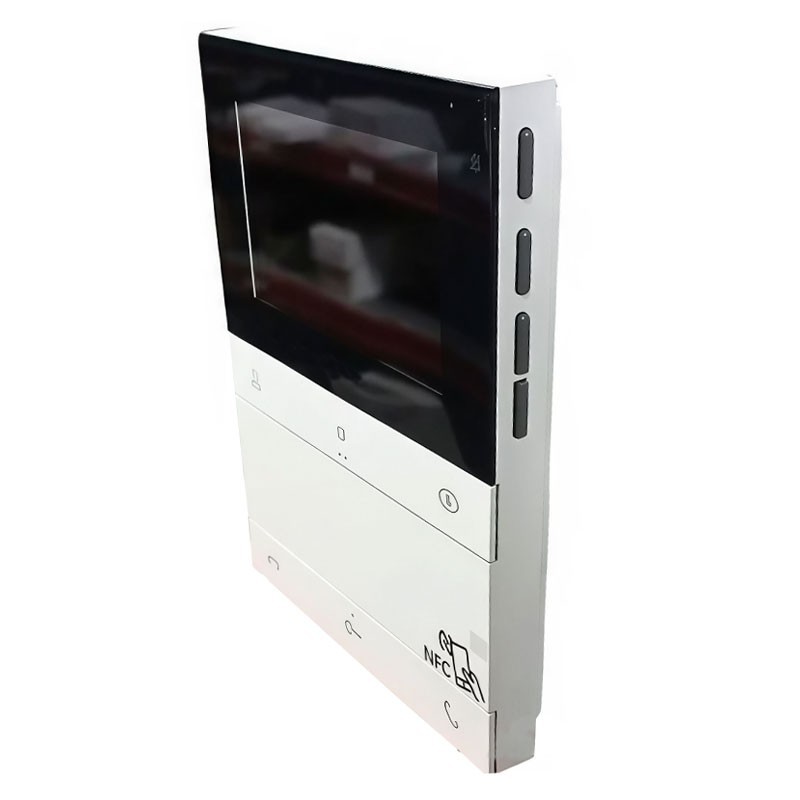

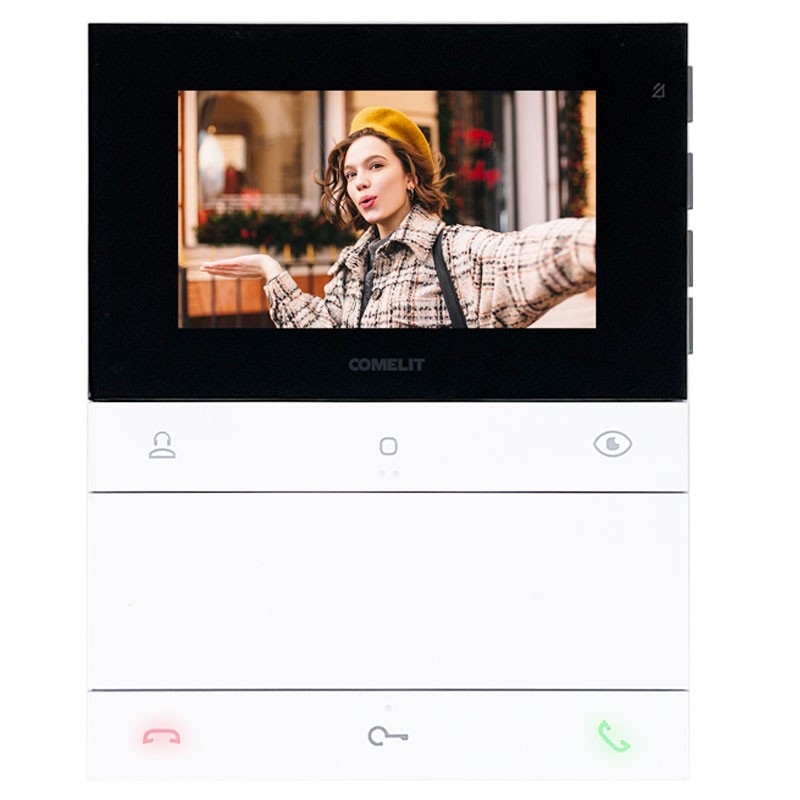

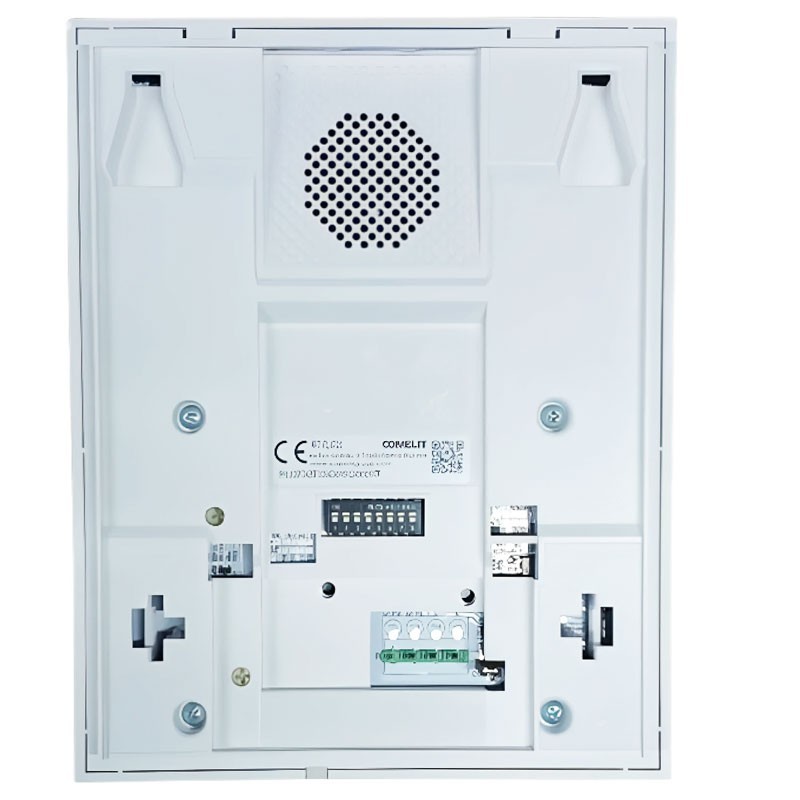

1 4.3-inch People series hands-free video door phone (code PL6721):



• Power supply type Power supply from video intercom bus.
• Display size: 4.3 inches
• Power supply voltage 33VDC
• Standby power consumption (W) 0.03
• Maximum power consumption (W) 9.2
• Type of buttons Mechanical Total buttons 6
• Backlight color: Green, White, Red
• Clamps L L CFP CFP
• Removable terminals Yes
• Number of inputs 1



Hands-free version with 4.3" / 16:9 screen. The video intercom can be programmed, even when off, from a smartphone using the free downloadable MyComelit app. It comes with metal wall mounting bracket for strong and stable anchorage and line branch terminal.



It comes with 6 mechanical buttons on the front with icons identifying its factory-set function. 3 buttons are backlit for easy operation: green color for "phonic socket" function, red color for "end communication" function, and white color for "electric lock" function. 3 pushbuttons are programmable and already configured to call the concierge switchboard, control an actuator, and perform auto switch-on. The center buttons in each row are equipped with tactile guides for the blind. On the right side of the video intercom, on the other hand, there are buttons to activate the Silent mode with a red indicator light and corresponding icon, and buttons to access the menu to adjust brightness, contrast, color and ringer volume values. As standard, it is equipped with out-of-door call that can also be programmed for other functions. Dimensions (W x H x D): 135 x 170 x 23 mm.




Other Specifications:

• Height (mm) 170
• Width (mm) 135
• Depth (mm) 23
• Product weight (g) 430
• Product color White RAL9003 - Black RAL9005
• Type coating materials ABS, PMMA
• Wall mounting Yes
• Table base mounting Yes, with dedicated accessory
• Compatible systems: Audio/video Simplebus 2 with power supply item 4888C Yes, Audio/video Simplebus 2 with power supply item 1210/1210A Yes, Audio/video Simplebus 2 kit with power supply item 1209 Yes
• Display type TFT
• Aspect ratio 16:9
• Resolution (pixels) display 480x272
• On screen menu (OSD) Yes
• Microphone 6mm (ø), Omnidirectional
• Speaker 36mm (ø), 40 Ohm, 1W
• Adjustments: Volume, Speaker, Ring Volume Yes, Screen Brightness Yes, Screen Contrast Yes, Screen Color Yes
• Network and communication protocols: User function programming via OSD menu Yes, Installer function programming via OSD menu Yes, Function programming via NFC and MyComelit app Yes
• Degree of protection IP30
• Operating temperature: -5/+40°C
• Operating humidity (RH max) (%) 25 ÷ 75
• Environmental Class I (B1)
• Certifications CE RoHS II - 2011/65/EU (EN IEC 63000:2018), EMC 2014/30/EU(EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)




General features:

• Door opener Yes
• Automatic Door Opener on Call (Doctor) Yes
• Silent Mode (Privacy) Yes
• Auto Power On Yes
• Call to switchboard Yes
• Intercom Calling Yes
• Selective Intercom Call Yes
• Panic Call Yes
• Out-of-door call input Yes
• Customizable ringtone Yes
• Auto answer (hands-free) Yes
• Actuator control Yes
• Door open signaling Yes
• Audible signaling Yes
• Visual signaling Yes



Accessories required for system implementation (power supply unit code 1209, termination terminal code 1216, branch terminal code 1214/2C):

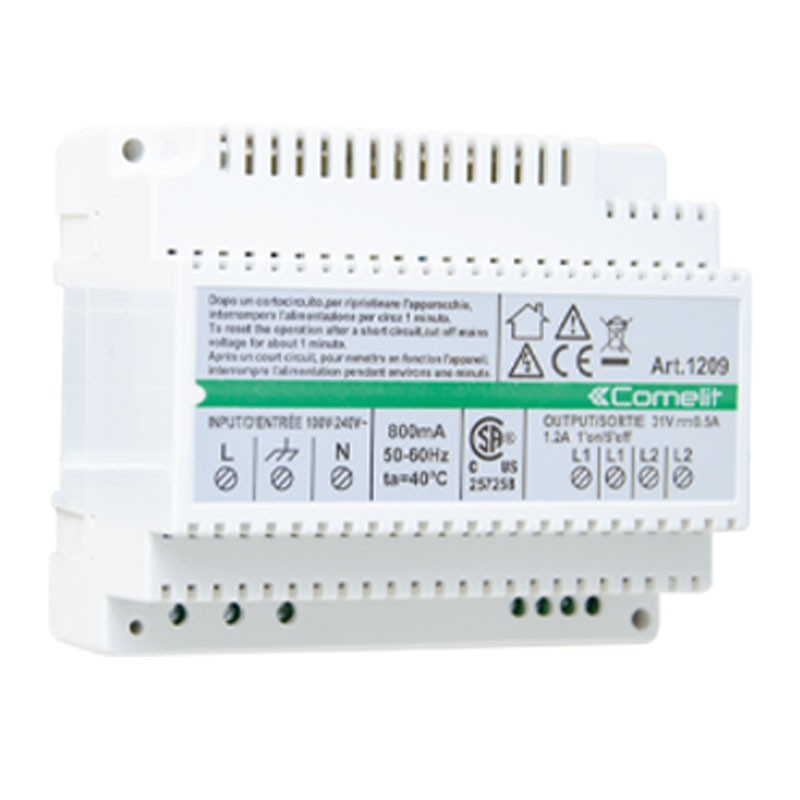

Power supply unit code 1209: for Simplebus 2-wire video kit to which the door station and indoor station can be directly connected.



• Equipped with overload and short-circuit protections
• Input voltage 110-240 VAC
• Dimensions: 106 x 62 x 89 mm (6 DIN modules)
• Supply voltage 110÷240
• Max delivered current (A) 1.2
• Applicable to DIN rail Yes
• Number of DIN modules (no.) 6
• Dimensions Height (mm) 62 - Width (mm) 106 - Depth (mm) 89
• Type coating materials Plastic
• Product color White
• Operating temperature: -5/+40°C
• Operating humidity (RH max) (%) 25 ÷ 95
• Compatible Audio/video kit system Yes
• Maximum power output 37W

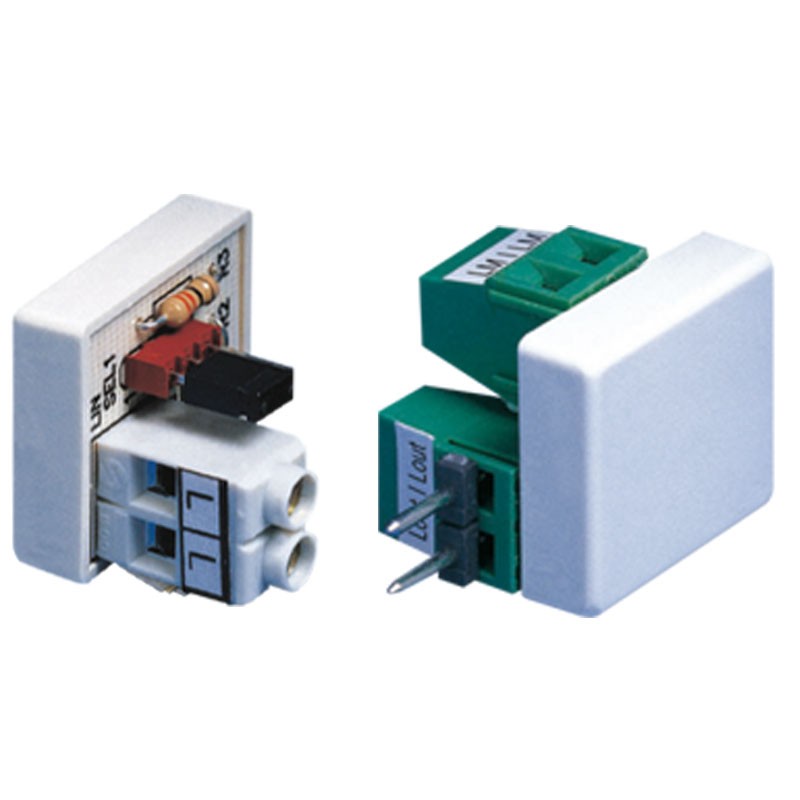

Simpleblus2 termination terminal (code 1216):

• CE EMC 2014/30/EU certifications (EN 61000-6-1:2007 , EN 61000-6- 3:2007+A1:2011)
• Operating temperature: -5/+40°C
• Operating humidity (RH max) (%) 25 ÷ 95
• Compatibility: Simplebus 2 audio/video system Yes



Branch terminal S2:

• Height (mm) 25
• Width (mm) 32
• Depth (mm) 25.5
• Operating temperature: -10/+30°C
• Compatibility: Simplebus 2 audio/video system Yes - Simplebus 2 audio system Yes
• Audio/video features: Audio system Yes - Audio/video system Yes
