Comelit concierge audio switchboard for Simplebus 1 1998NA system
COE 1998NA
8023903392470

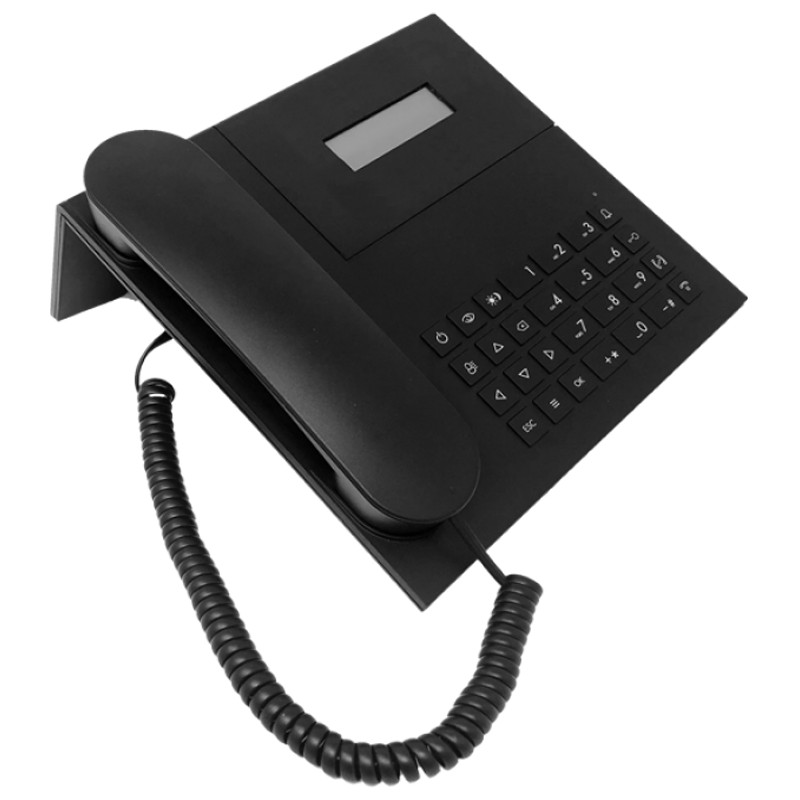

Urmet concierge audio switchboard for Simplebus 1 system with microswitch keypad and 32-character alphanumeric display:
- Ergonomic handset with base-plate attachment facilitated by invisible magnetic inserts
- Allows the code and name of the user to be called and the calling user to be displayed, keeping in memory unanswered calls
- Manages Day/Night mode and user/user intercom service
- Allows management of alarm reports from users
- It is possible to store up to 1000 users
- Equipped with removable cable with stud for connection
- 24 VAC power supply with item 1195 not included
€1,260.06
Items Available: 1
Frequently bought together
Features:
- Audio/video Simplebus 1 Yes
- Audio Simplebus 1 Yes
- Display Type 32-character alphanumeric display
- Technologies implemented Full-Duplex
- Power consumption min/max (mA) 20 ÷ 200
- Type of power supply External power supply
- Visual signals Yes
- Audible signals Yes
- Number of buttons (no.) 36
- Number of outputs (no.) 2
- Environmental class I
- Main function door opener
- Digital call type
- Certifications CE RoHS II - 2011/65/EU (EN IEC 63000:2018), EMC 2014/30/EU (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)
- Type of buttons Mechanical
- Height (mm) 90
- Depth (mm) 230
- Product weight (g) 1500
- Operating temperature (°C) -5 to 40
- Operating humidity (RH max) (%) 25 to 90
- Supply voltage 24
- Maximum current consumption (mA) 200
- No. of storable users (no.) 1000
- Type coating materials ABS
- Connectivity RS232 ports (no.) 1
Functions:
- Alarm function Yes
- Actuator control function Yes
- Intercom function Yes
- Door opener button function Yes
There are no reviews
Data sheet
- Type: Porter switchboard
