Comelit Vip Ultra IP UT8500 kit: professional and expandable solution
Expandable system over IP network
The kit is designed for Comelit VIP installations, which take advantage of the LAN network for communication between devices. This allows maximum flexibility in design, ease of configuration and possibility for future expansion by integrating internal monitors, IP cameras, remote management apps and access control systems.
UT8020 module: audio/video quality over IP
The UT8020 module is the central component of the system. Compatible with the Ultra handset, it enables clear and smooth communications thanks to the audio/video signal over IP. It ensures high-resolution images and interference-free audio for easy and secure input management.
Comprehensive power and connectivity
The 1440A shunt simplifies system connections and ensures stability, while the 1441 100W power supply provides the necessary power to all components, with protection against overloads or power surges.
Expandable and customizable
The system is modular and expandable, ideal for adapting to the needs of any building-from adding more indoor units to integrating with smart and video surveillance systems. A Comelit solution designed to last.

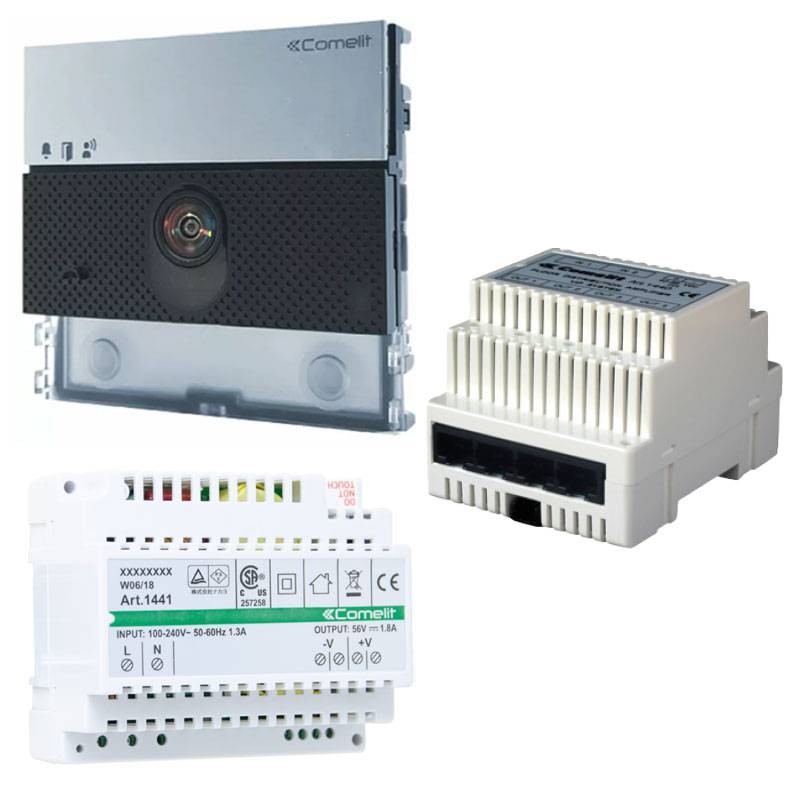

Detail of the components in the Comelit UT8500 VIP Ultra IP Kit.

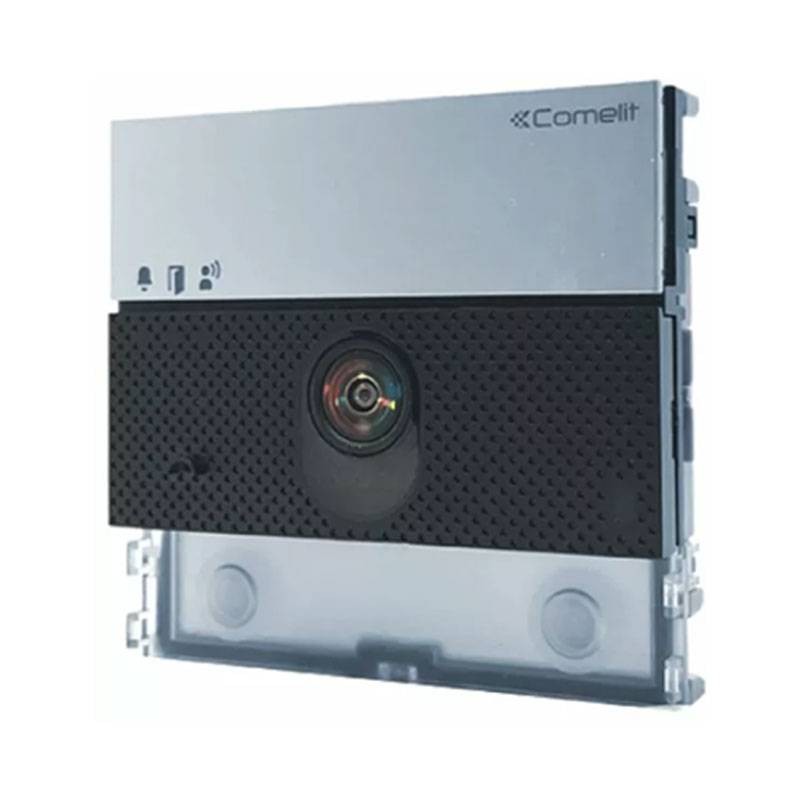

Ultra IP Audio/Video Module (VIP)
Audio/video module for Ultra push-button panel, IP system (ViP). Twilight sensor for automatically turning off the backlight of name tags during daylight hours. Omnidirectional digital microphone and dual speakers for high-fidelity audio. Wide-angle color camera (field of view: 160° horizontal, 90° vertical) and LED for night lighting. Audio/visual signaling aids for the disabled that can be activated by programming. Prepared for 2 call buttons. To be completed with cap, single button or double button made of professional plastic with anti-yellowing and anti-matte treatment or aluminum. Adjustments and programming without removing the module. ULTRA, the new most technologically advanced push-button panel with maximum ease of installation. Available in flush-mounted (protrusion from the wall of 10 mm) or wall-mounted (protrusion from the wall of only 35 mm) variants. Dimensions (W x H x D): 100 x 90 x 35mm.
General Data
| Feature |
Value |
| Type |
Modular |
| Height (mm) |
90 |
| Width (mm) |
100 |
| Depth (mm) |
35 |
| Product weight (g) |
395 |
| Product color |
Aluminum, Black RAL9005, Transparent |
| Coating Materials |
Polycarbonate, Aluminum alloy |
| Flush mounting |
Yes, with dedicated accessory |
| Wall mounting |
Yes, with dedicated accessory |
Compatible Systems
| Feature |
Value |
| Vip system |
Yes |
Audio Features
| Feature |
Value |
| Microphone |
MEMS digital audio sensor, omnidirectional |
| Speaker |
28 mm (ø), 8 Ohms, 1W (2) |
| Technologies implemented |
Echo cancellation, Noise reduction |
| Audio compression |
G.711 A-Law |
Camera Features
| Feature |
Value |
| Camera |
Colors |
| Sensor type |
1/2.7" CMOS - 2MP |
| Optics |
Fixed 1.6mm |
| Viewing angle |
160° x 90° |
| Sensitivity |
0.1 (color) |
| Video resolution |
320x240, 480x272, 800x480, 1024x608 |
| Video compression |
H.264 baseline |
| RTSP server |
Yes |
| Maximum no. of RTSP clients |
4 |
| RTSP resolutions |
1024x608, 800x480, 480x272, 320x240 |
Electrical Characteristics
| Feature |
Value |
| Power Supply Type |
PoE, External power supply |
| Power supply voltage |
33 VDC |
| PoE |
3657VDC, PoE standard, Comelit PoE (56VDC) |
| PoE class |
0 |
| Stand-by power consumption |
2,5 W |
| Maximum power consumption |
6 W |
Hardware Features
| Feature |
Value |
| Call type |
Mechanical buttons |
| No. of buttons |
2 |
| Backlighting |
White / Off |
| Terminals |
TX-/TX+/RX-/RX+/V-/V+/RTE/GND/SE-/SE+/COM/NC/NO |
| Inputs |
1 |
| Outputs |
2 (C-NO-NC relays) |
| Communication ports |
Ethernet |
| Twilight sensor |
Yes |
Adjustments
| Parameter |
Value |
| Speaker volume |
Yes |
| Microphone volume |
Yes |
| Backlight brightness |
Yes |
| Shooting area |
Yes |
Network and Communication Protocols
| Feature |
Value |
| Network Type |
Ethernet 10 Mbit/s |
| IP |
Auto IP, DHCP, Static |
| Supported protocols |
DHCP, IPv4, NTP, RTSP, DNS, MQTTS |
Programming Modes
| Software |
Value |
| ViP Manager |
Yes |
Environmental Characteristics and Compliance
| Parameter |
Value |
| IP Grade |
IP65 |
| Vandal-proof grade |
IK08 |
| Operating temperature (°C) |
-25 ÷ 55 |
| Humidity (RH max) |
25 ÷ 95% |
| Environmental class |
IV |
Main Functions
| Function |
Value |
| Door opener |
Yes |
| Auxiliary relays |
1 |
| Local door opener button |
Yes |
| Door open signal |
Yes |
| Visual system signaling |
Yes |
| Audible plant signaling |
Yes |
| Plant voice synthesis |
Yes |

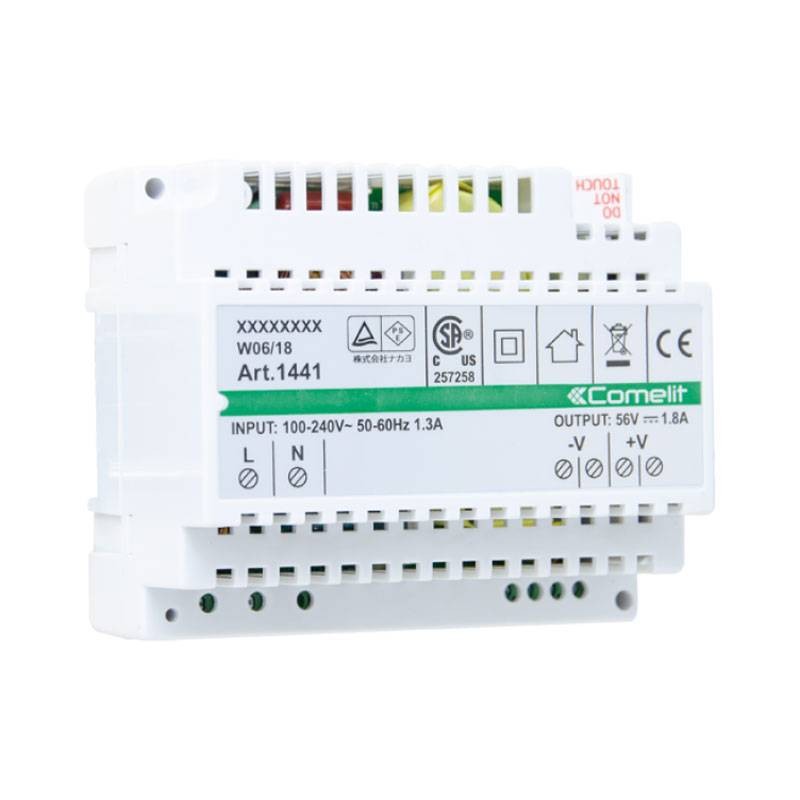

Power supply 100W 1441
Key Features
| Voice |
Value |
| Power supply voltage |
110 to 240 VAC / 50 to 60 Hz |
| Output voltage |
56 VDC |
| Maximum output current |
1,8 A |
| Input connector |
Terminal block |
| Applicable to DIN rail |
Yes |
| Number of DIN modules |
6 |
Hardware features
| Item |
Value |
| Product weight |
347 g |
General data
| Item |
Value |
| Height |
62 mm |
| Width |
106 mm |
| Depth |
89 mm |
| Coating material |
ABS |
| Product color |
White RAL9010 |
| Operating temperature range |
5 ÷ 40 °C |
| Operating humidity (RH max) |
25 ÷ 95% |

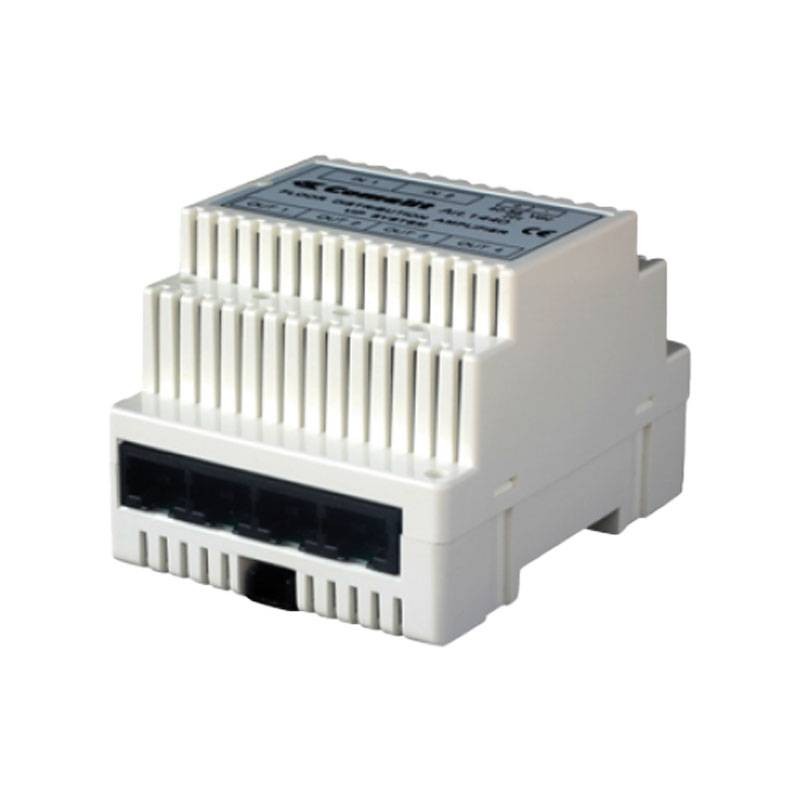

IP 1440A floor drifter
Main features
| Item |
Value |
| LAN Ports |
6 (10/100 Mbit/s) |
| MAC address |
Yes |
| Long range |
Yes |
| Maximum distance in long range mode (CAT5e/CAT6) |
150 m |
General data
| Item |
Value |
| Maximum power consumption |
1,4 W |
| Supply voltage |
40 TO 56 VDC |
| Height |
89 mm |
| Width |
71 mm |
| Depth |
62 mm |
| Coating material |
ABS |
| Color |
White |
| Operating temperature range |
5 ÷ 40 °C |
| Operating humidity (RH max) |
25 ÷ 75% |
| Vip system |
Yes |
| DIN rail mounting |
Yes |
| DIN modules |
4 |
Connectivity
