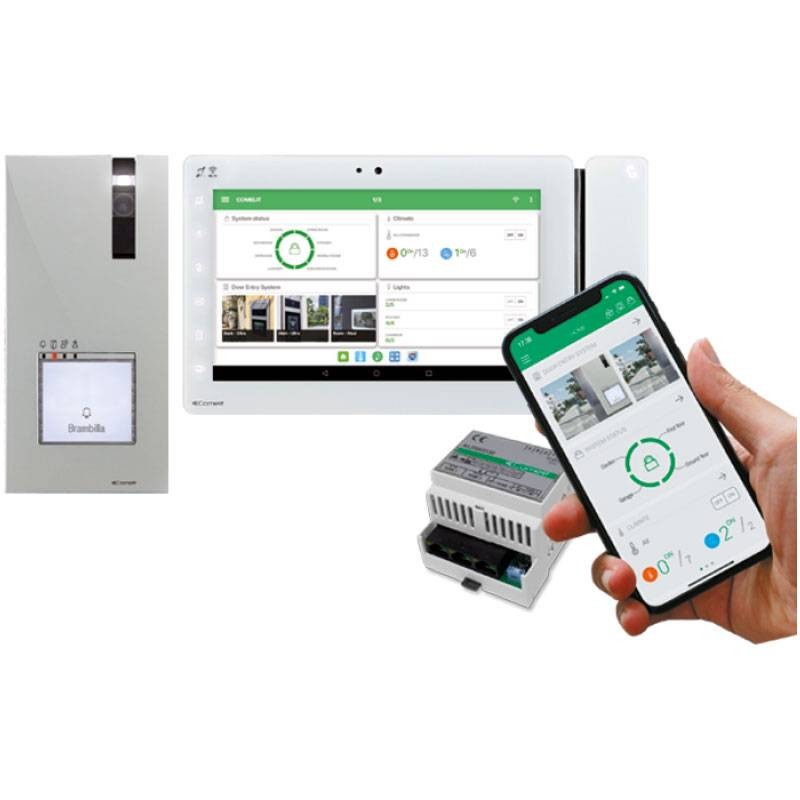

Specifications of the parts of the Kit:

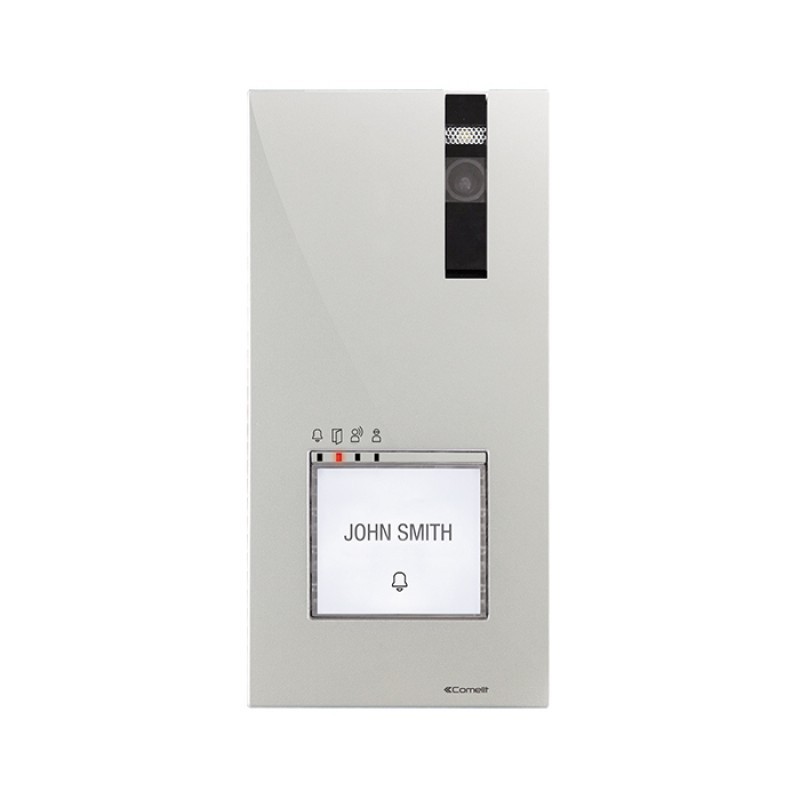

Quadra door station:

Quadra series wall-mounted video intercom door station. Die-cast aluminum front, color camera and single LED for night lighting. Mechanical keys with possibility to set from 1 to 4 call keys by dip switch. Signaling LEDs for call sent, door opener activated, speech activated and system busy. Speaker volume and speech balance adjustment. POE power supply. Door station is pre-programmed in DHCP mode, with ViP address 100, and the button makes the call at ViP address 1. Dimensions (W x H x D): 95x195x28mm.



Features:

• Monoblock type
• Height (mm) 195
• Width (mm) 95
• Depth (mm) 28
• Product weight (g) 500
• Product color Gray RAL 9006
• Wall mounting Yes
• VIP compatible systems
• Microphone 6mm (ø), Omnidirectional
• Speaker 36mm (ø), 8 Ohm, 1W
• Camera Color
• Sensor type 1/4" CMOS
• Lens size fixed lens (mm) 2.8
• Viewing angle (H x V - °) 100 x 55
• Sensitivity 0.1 (color)
• Video resolution 1152x640
• H.264 video compression
• PoE power supply type
• PoE power supply 36÷57VDC, standard PoE, Comelit PoE (56VDC)
• Standby power consumption (W) 2.5
• Maximum power consumption (W) 4
• Call Type Buttons
• Type of buttons Mechanical
• Number of buttons (no.) 1
• Color of backlighting White
• Terminals NO C V- RTE DO SE+ SE- CN1
• Number of inputs (no.) 2
• Number of outputs (no.) 1
• Type of outputs Relay (C-NO-NC, 10A@12÷24 VAC/VDC), SE: unlock pulse of 4A, hold current of 200mA for 12VAC/DC locks (maximum impedance 18 Ohm)
• Speaker Volume Adjustment
• LAN Network Type Ethernet 10 Mbit/s
• DHCP IP address assignment
• IP protection rating IP54
• Vandal-resistant degree of protection IK IK08
• Operating temperature (°C) -25 to 55
• Operating humidity (RH max) (%) 25 ÷ 95
• Environmental class IV
• RoHS II certifications - 2011/65/EU (EN IEC 63000:2018), EMC 2014/30/EU (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)



Features:

• Door opener Yes
• Number of auxiliary relays (no.) 1
• Input for local door opener button Yes
• Input for door open signal Yes

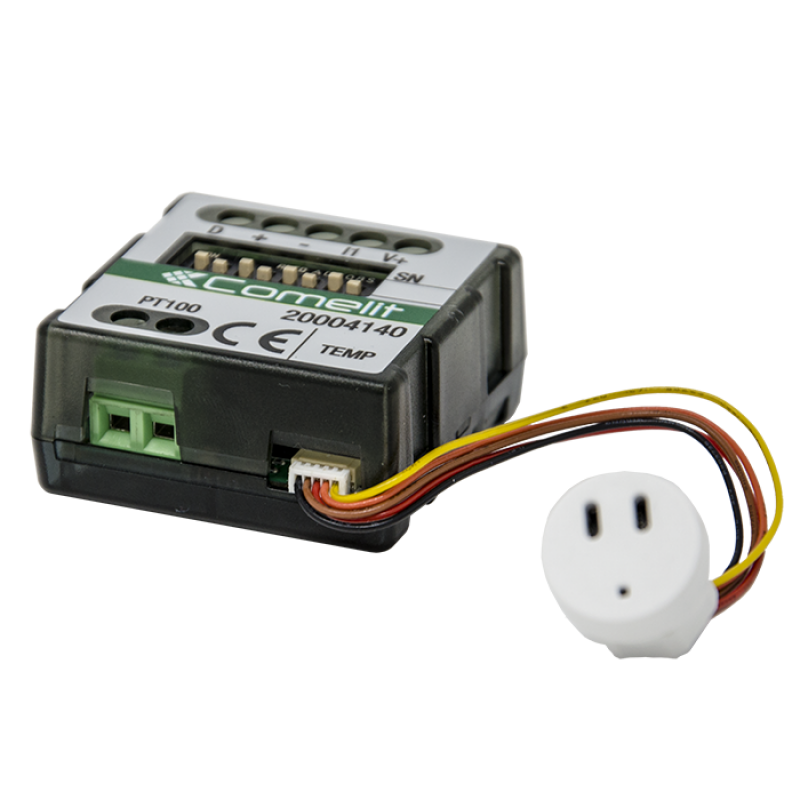

PT100 built-in temperature-humidity module 20004140:

SimpleHome flush-mounted module with one input for connection of Comelit temperature and humidity probe (included in package), one input for standard PT100 temperature probes (not included in package), and one digital input for connection of window contact or control button. The module allows the Comelit temperature probe or PT100 probe to be used to measure temperature and humidity (Comelit probe only) in the room and control heating, cooling, VMC systems, including multi-speed (fan-coil, VMC, etc..) through relay outputs or 0-10V analog output. Includes dew point control function to prevent condensation on the floor. The PT100 input can be used in addition to the Comelit sensor to measure the floor temperature and thus calculate the dew point accurately or to prevent damage to the floor in case of over-temperature. The Comelit temperature and humidity sensor can be installed on any civil series by applying a small hole on a hole cover. Maximum current consumption: 5mA.



Features:

• Flush mounting
• Multi-speed control (fan coil) temperature Yes
• Multi-speed humidity control Yes
• Fan coil management Yes
• Built-in temperature sensor Yes
• Home automation system compatibility
• Connectivity Analog outputs 0-10V (no.) 1

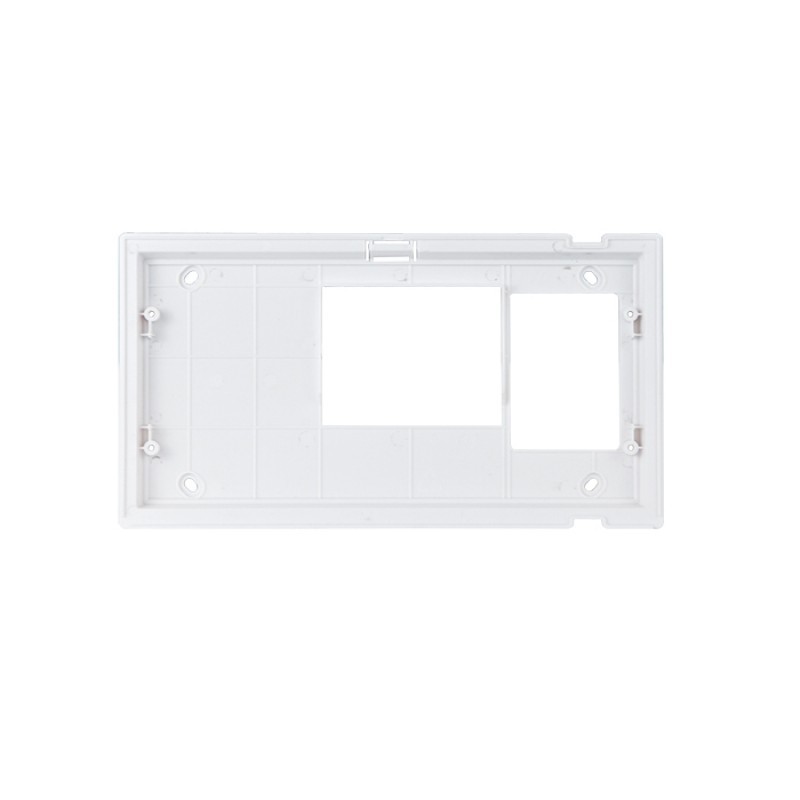

Maxi manager wall mount 6821:

Wall bracket for Maxi Manager and Maxi monitor with Android made of UV-resistant ABS. White RAL9003 color. Dimensions (W x H x D): 216.4x117.5x16 mm.



Features:

• Type ABS coating materials
• Product color white RAL9003
• Simplebus 2 audio/video system Yes
• Vip system Yes
• Wall Mounting

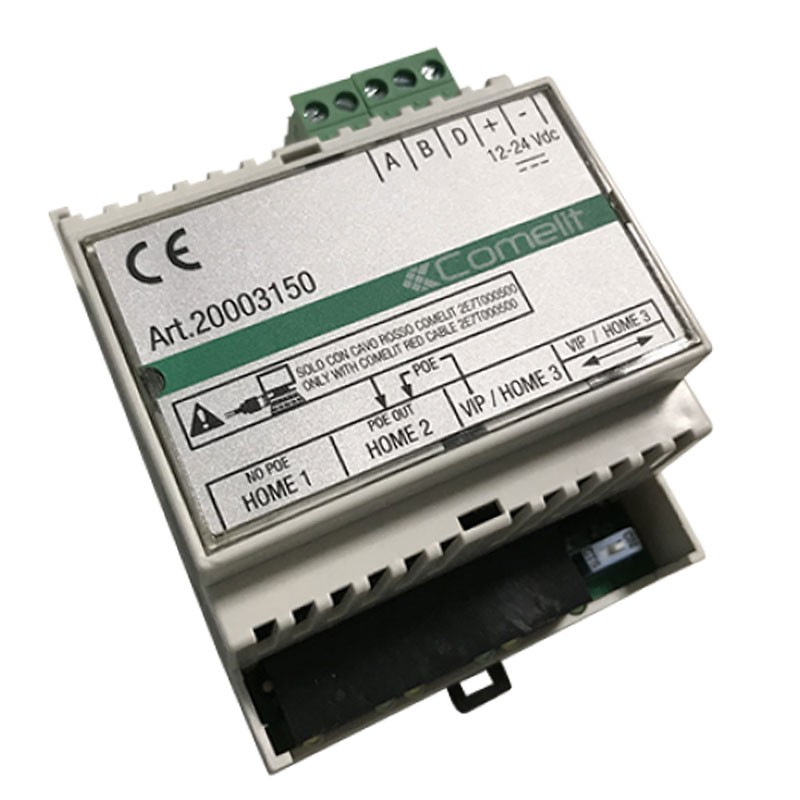

Comelit Hub code 20003150:

New module for local and remote management of SimpleHome system. Using Comelit App it will then also be possible to directly manage the home automation system from Smartphone and Tablet, iOS and Android. It acts as a gateway for Comelit systems: it will then be possible via LAN to communicate with the video door phone system and the alarm system. Easy configuration: the module can be configured directly from SimpleProg; no port-forwarding procedure is required for remote connection. You can control all features of the home automation system such as lights, blinds, climate, loads. It allows you to program weekly timers, scenarios or logic rules. The configuration is sent directly to the supervisors (Icona Manager and Maxi Manager) from the programming software through the LAN network. Please note: Icona Manager requires version 3.0.0 or higher to communicate with Comelit Hub.



Features:

• Removable terminals Yes
• DIN rail mounting Yes
• Automation management Yes
• Load management Yes
• Scheduling management Yes
• D + - terminals
• Micro-SD memory card supported (non-removable)
• Communication ports 3 x RJ45 (Ethernet), SimpleHomeBus
• Height (mm) 95
• Width (mm) 70
• Depth (mm) 59
• Product weight (g) 100
• Product color White RAL9010
• Type ABS coating materials
• Number of DIN modules (no.) 4
• ViP Yes
• Home automation system Yes

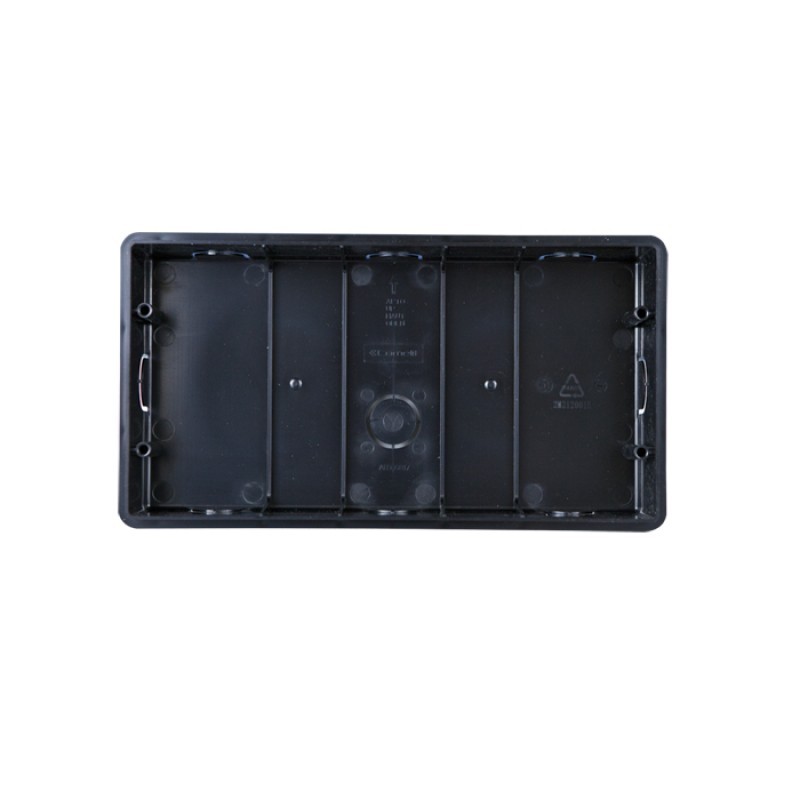

Maxi video intercom flush mount box 6817:

• Recessed box for Maxi video intercom made of black ABS plastic. Dimensions (W x H x D): 212x115x50mm.

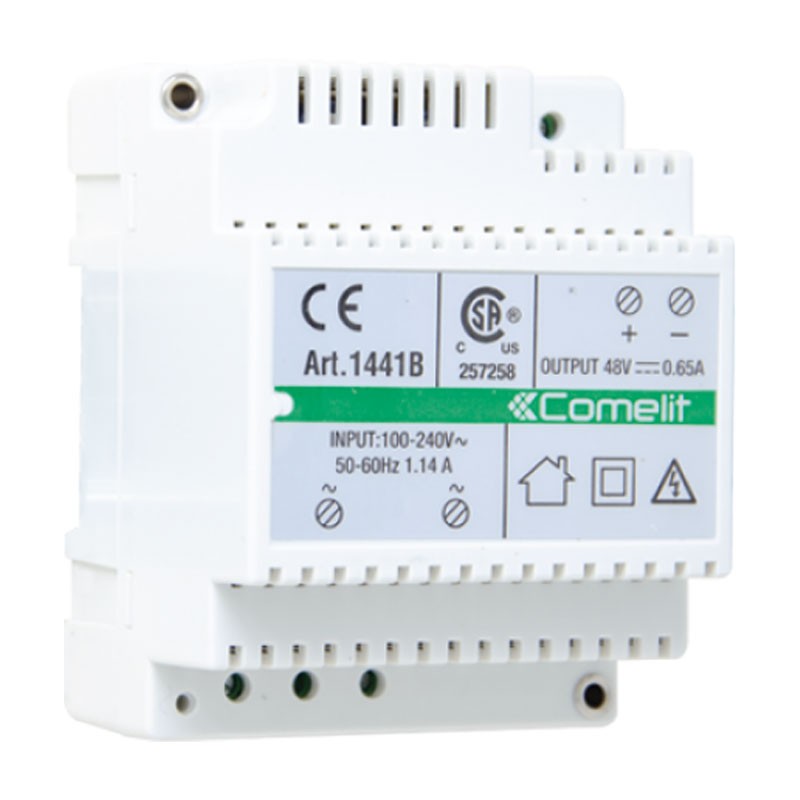

30W power supply VIP 1441B:

Power supply with 110Vac/240Vac input and 48Vdc output. Power 30W. Din rail power supply unit (4 DIN modules). Dimensions: 70x90x62mm.

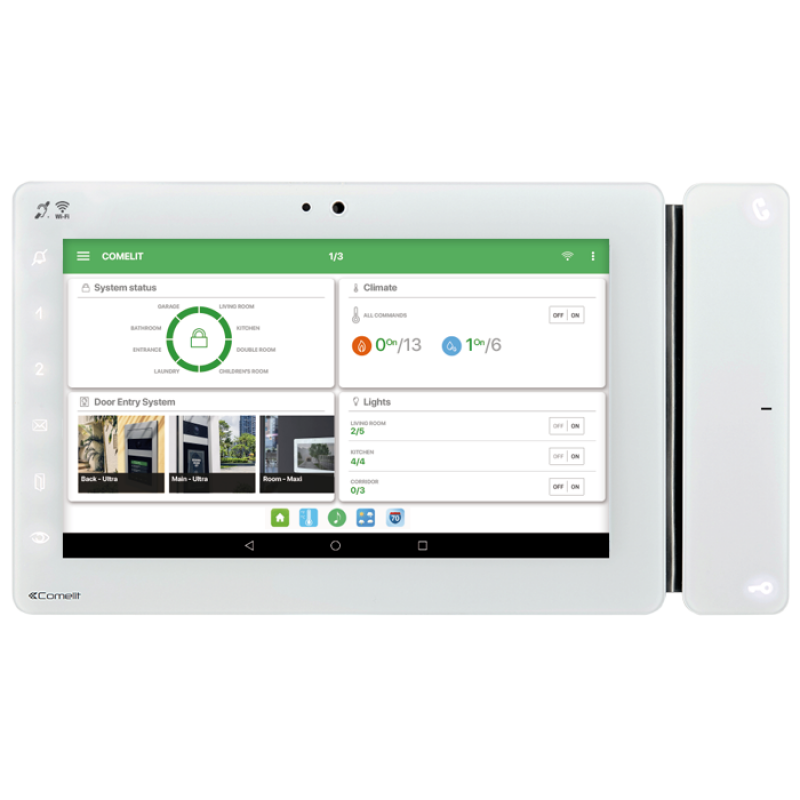

Supervisor 7 inch Maxi manager with android VIP 20003300W:



Strengths:

• 7 capacitive touch screen display with gesture recognition for easy navigation within menus.
• Comes standard with Sensitive Touch controls for door opener, phonic activation, auto switch on, privacy service and 3 other controls for programmable functions, door open and new message LEDs
• Handles out-of-door call and redial as standard, provides for alarm and panic inputs
• Equipped with magnetic induction circuit for the hearing impaired
• Built-in temperature and humidity sensor
• RFID reader for input and output scenario activation
• Supervisor allows control of lights, shutters, automated openings, zone temperature control with customized schedules, irrigation management, display of power consumption, water, gas, etc., management of electrical load shedding, management and control of burglar alarm system, display of cameras on IP network
• Power supply from POE



Features:

• Height (mm) 124
• Width (mm) 223
• Depth (mm) 27
• Product weight (g) 700
• Product color White RAL9003, gray base RAL7001
• Type coating materials ABS, Glass



Compatibility:

• Simplebus 2 system with interface art. 20005000 Yes
• ViP Yes
• Home automation system Yes
• Burglar alarm system Yes



Display:

• 16:9 aspect ratio
• Touch screen Yes, capacitive
• Resolution (pixels) 1024x600
• On-screen menu (OSD) Yes



Audio features:

• Speakerphone Type
• Magnetic induction function Yes
• Microphone 4mm (ø), Omnidirectional
• Speaker 40mm (ø) x 28.4mm (H), 4 Ohm, 2W
• Implemented Technologies Full-Duplex



Camera features:

• 1/5" CMOS sensor type
• Lens size fixed lens (mm) 2.7
• Viewing angle (H x V - °) 83 x 66



Electrical Characteristics:

• PoE power supply type
• Power supply voltage Standard IEEE 802.3af, Comelit PoE (48÷56VDC)
• PoE Class 3
• Standby power consumption (W) 4.2
• Maximum power consumption (W) 7.8



Hardware Features:

• Type of buttons Capacitive
• Service buttons Door open, Answer, Silent (Privacy), Menu, Message, Door open
• No. of programmable buttons for additional functions 2
• Terminals S- S+ OUT1 IN4 PAN CFP 0V AL
• Number of inputs (no.) 4
• Type of inputs Internal pull-up
• Number of outputs (no.) 1
• Type of outputs Open Collector
• Micro-SD memory card supported (not supplied)
• Communication ports RJ45 (Ethernet)
• Proximity reader type Mifare® (13.56 MHz)
• Temperature sensor Yes



Adjustments:

• Speaker volume Yes
• Microphone volume Yes
• Ring volume Yes
• Screen backlighting Yes
• Network Type LAN Ethernet 10/100 Mbit/s, IEEE 802.3, IEEE 802.3u (Fast Ethernet)
• Wi-Fi connection type IEEE 802.11 b/g/n, 2.4 Ghz, 13 channels
• IoT connection to Comelit Cloud Yes
• Firmware update via
• Comelit Cloud Yes
• Android Operating System (v. 7.1)



Environmental features:

• IP30 degree of protection
• Operating temperature (°C) -5 ÷ 40
• Operating humidity (RH max) (%) 20 ÷ 90
• Environmental class II
• RoHS II certifications - 2011/65/EU (EN IEC 63000:2018), RED 2014/53/EU (EN 62311:2008, EN 62368-1:2014, EN 61000-6-1:2007, EN 61000-6-3:2007 + A1:2011, ETSI EN 301 489-1 V2.2.0, ETSI EN 301 489-17 V3.2.0, ETSI EN 300 328 V2.1.1).



Home Automation Functions:

• Light management ON/OFF, Dimmer, RGB, Dali, DMX
• Shutter/Venetian blind management Yes
• Shutter/Venetian blinds percentage position management Yes
• Temperature and humidity management Multizone, ON/OFF, Fancoil, Modbus
• Scenario management Instantaneous, Scheduled, Conditioned
• Energy consumption display Yes
• Logic rules management Enabling/Disabling
• Irrigation management Yes
• Generic outputs management Yes



Video Door Phone Functions:

• Door opener Yes
• Auto Power On Yes
• Intercom Calls Yes
• Actuator control Yes
• Call to switchboard Yes
• Outside call input Yes
• Repeat call output Yes
• Silent Mode (Privacy) Yes
• Memovideo Yes
• IP camera display (RTSP stream) Yes
• Automatic door opener on call (Doctor) Yes
• Auto answer (hands-free) Yes
• Door open notification Yes
• Call forwarding Yes
• Date/time display Yes
• Sending alarm calls Yes
• Sending e-mail on event Yes
• Message for absent Yes
• Receive ViP messages Yes
• ViP anti-theft function Yes
• Customizable ringtone Yes



Security features:

• Total, Partial, Customized insertion/deactivation management
• Plant status display Yes
• Video verification in case of alarm Images, Video, Live
• Quick command activation Yes
• Event history display Yes



General:

• Max power consumption (W) 7.8
• Table base mounting Yes, with dedicated accessory
• Display size (") 7
• Removable terminals Yes
• Built-in humidity sensor Yes
• Flush mounting Yes, with dedicated accessory
• Wall mounting Yes, with dedicated accessory
• Automation management Yes
• Load management Yes
• Scheduling management Yes

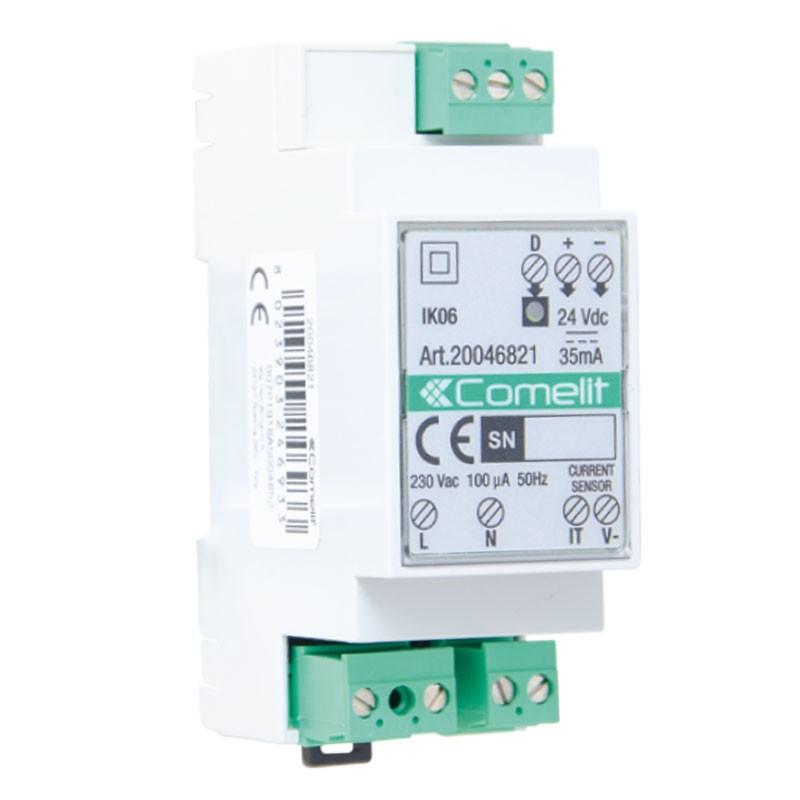

Load management and consumption module DIN connection 20046821: SimpleHome module to be connected to the BUS for measuring the electrical power absorbed or produced in a single-phase 230Vac system. For three-phase systems use a 20046821 module for each phase. Ability to program the disconnection of 8 loads connected on SimpleHome modules as a result of exceeding a predefined power threshold. Combined with compatible supervisors it allows display in graphs and tables of consumption or production data. Maximum measurable power: 10 KW. Supplied with an external TA (12mm internal diameter). Dimensions 36x90x58mm (2 DIN modules). Maximum current consumption 35mA.

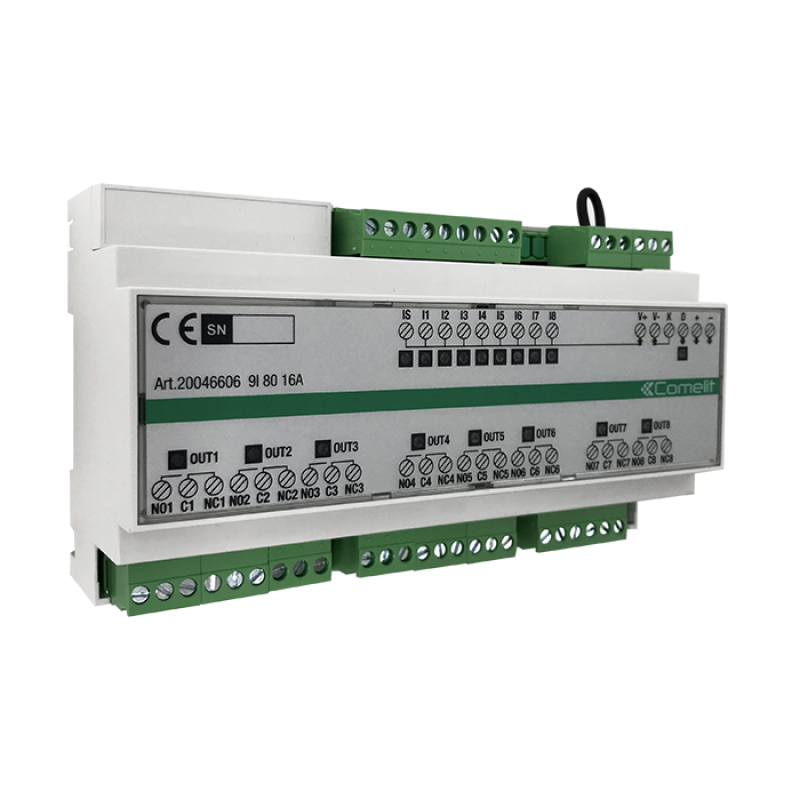

Simplehome module 9 inputs 8 outputs 16A on DIN rail 20046606:

SimpleHome module 9 opto-isolated inputs (8 normal + 1 scenario) that can be used to connect pushbuttons near the switchboard and 8 relay outputs with NC/NO changeover contact to control resistive-type electrical loads up to 16A, dimensions 160x90x58mm (9 DIN modules). Maximum current consumption 220mA.



Functions:

• Roller shutter/vane management Yes
• Output timing management Yes
• Software configurable digital inputs nc/no Yes
• Configurable nc/nc outputs Yes
• Light management Yes
• Scenario management Yes



Connectivity:

• No. of Simplehome buses (No.) 1
• Digital inputs (no.) 9
• Max distance from digital input (m) 25




General:

• Power supply from SimpleHome BUS Yes
• Maximum resistive load single output (mA) 16
• Input status led Yes
• Output status led Yes
• Number of digital inputs (no.) 8
• Number of scenario inputs (no.) 1
• Number of outputs (no.) 8
• Outputs with changeover contact for each output nc/no Yes

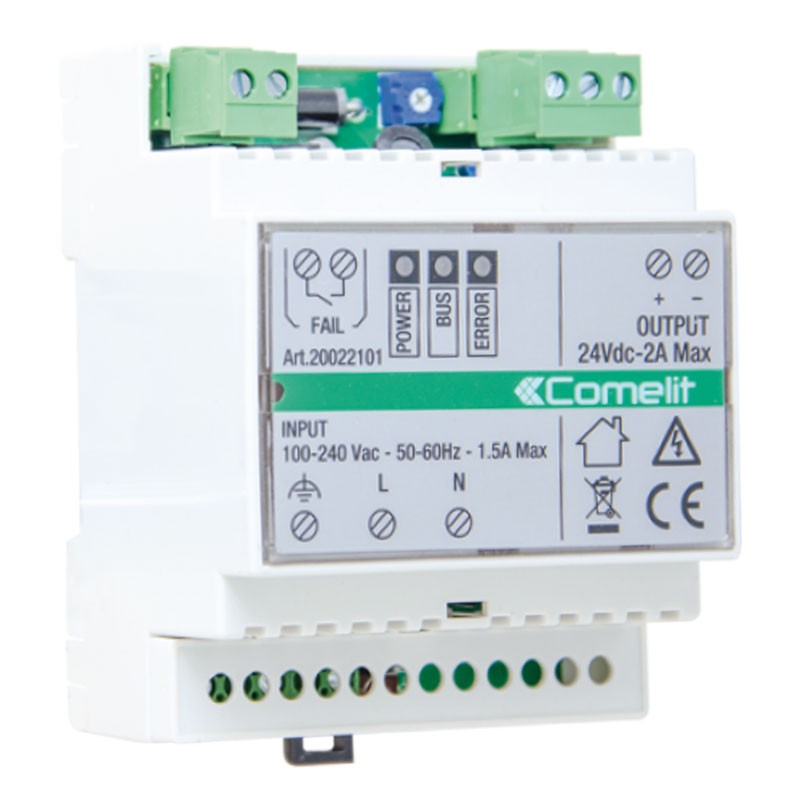

Simplehome Switching Power Supply 24VDC 2A din 20022101: Power supply for SimpleHome system, parallelable, self-protected, 24VDC. Supplies power to SimpleHome BUS system modules. Capable of supplying up to 2A and in the case of higher power consumption it is possible to connect along the bus several power supplies distributed in different points of the system, has an output relay contact to signal malfunction, dimensions 71x90x58mm (4 DIN modules).

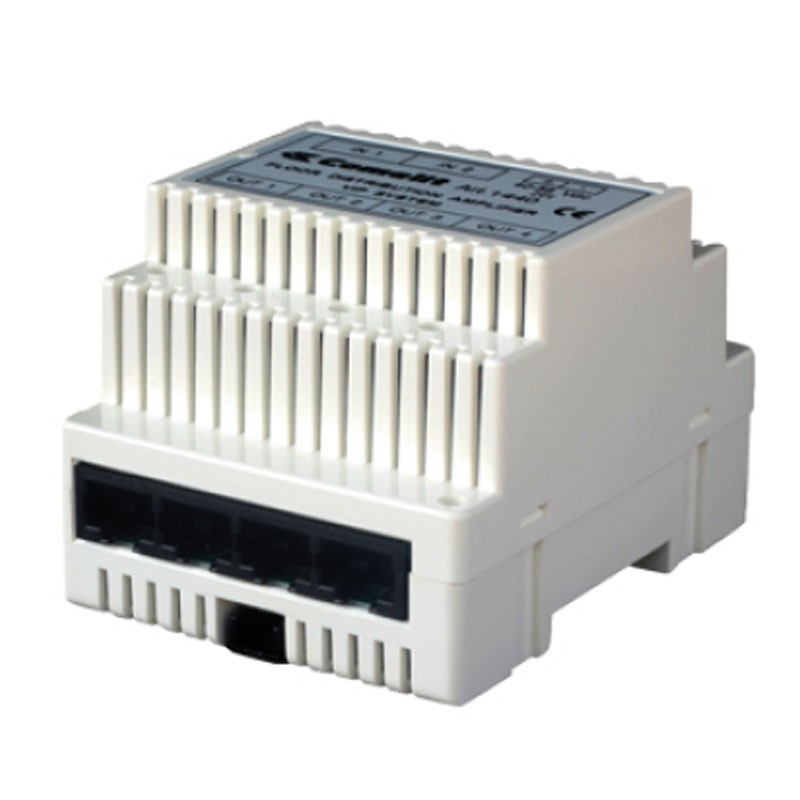

IP floor shunt (VIP) 1440: Floor shunt with one input, one output (10/100Mbit/s) and 4 leads (10 Mbit/s). Dimensions: 71x89x62mm (4 DIN modules).
