Comelit CIAO Single-Family Intercom Kit 4+N
The Comelit CIAO intercom kit is ideal for private residences, offices and businesses. Thanks to its flexible configuration, it can be used in both single-family homes and duplex settings, offering a clear and reliable communication system.
Components of the Comelit CIAO Single-Family Kit
Comelit CIAO Modular Pushbutton Panel
The Comelit CIAO modular push-button panel is a robust and modern solution for 5-wire intercom systems. Equipped with a synthetic polymer front panel, it offers high resistance to weather (IP54) and vandalism (IK08). Blue LED backlighting of the name tag ensures optimal visibility even in low-light conditions.
Technical Specifications Comelit Pushbutton Panel
General Data
| Feature |
Value |
| Type |
Monoblock |
| Height |
172 mm |
| Width |
100 mm |
| Depth |
28 mm |
| Weight |
400 grams |
| Product color |
Gray |
| Coating material type |
Polymers |
| Wall mounting |
Yes |
Audio Features
| Feature |
Value |
| Microphone |
4mm (Ø), Omnidirectional |
| Speaker |
50mm (Ø), 50 Ohm, 0.25W |
Electrical Characteristics
| Feature |
Value |
| Power supply type |
External |
| Supply voltage |
12VAC |
| Stand-by power consumption |
1,3W |
| Maximum power consumption |
12,5W |
Hardware Features
| Feature |
Value |
| Call type |
Buttons |
| Type of buttons |
Mechanical |
| Number of buttons |
2 |
| Backlight color |
Blue |
| Removable terminals |
Yes |
Adjustments
| Feature |
Value |
| Speaker volume |
Yes |
| Microphone volume |
Yes |
Environmental and Compliance Characteristics
| Feature |
Value |
| Degree of protection |
IP54 |
| Operating temperature range |
-25/+55 degrees |
| Door opener |
Yes |
Replacement Push Button for Comelit CIAO Pushbutton Panel
The Comelit rocker button is an original replacement for the CIAO push button panel. Designed for maximum reliability and durability, it is made of transparent and durable material, ideal for traditional intercom systems.
Technical Characteristics Comelit Pushbutton
| Feature |
Value |
| Compatibility |
HELLO button panel |
| Type of call |
Mechanical rocker buttons |
| Number of buttons |
2 |
| Color |
Transparent |
| Height |
58.7 mm |
| Width |
48.6 mm |
| Depth |
7.85 mm |
| Operating temperature range |
-25°C / +55°C |
| Traditional system |
Yes |
Comelit Intercom MINI 2 Buttons
MINI series intercom for traditional system with electronic call, door opener button and additional button for additional services. Call volume and privacy adjustment via 3-position selector. Privacy activation is indicated by a red indicator.
Technical Characteristics Intercom MINI
General Data
| Feature |
Value |
| Height |
190 mm |
| Width |
105 mm |
| Depth |
28 mm |
| Color |
White |
| Type coating materials |
Plastic |
| Wall mounting |
Yes |
| Table base mounting |
Yes |
Audio Features
| Feature |
Value |
| Microphone |
4mm (Ø), Omnidirectional |
| Speaker |
0.50mm, 0.5W |
Electrical Characteristics
| Feature |
Value |
| Supply voltage |
15/16VDC |
| Stand-by power consumption |
3W |
| Maximum power consumption |
6W |
Hardware Features
| Feature |
Value |
| Button type |
Mechanical |
| Service buttons |
Door opener |
| Terminals |
S 2 3 4 P1 P2 |
| Total buttons |
2 |
Environmental and Compliance Characteristics
| Feature |
Value |
| Degree of protection |
IP30 |
| Operating temperature |
-5/+55 degrees |
| Environmental class |
III |
| Door opener |
Yes |
| Silent Mode (Privacy) |
Yes |
| Ringer Volume Adjustment |
Yes |
| Electronic ringer |
Yes |

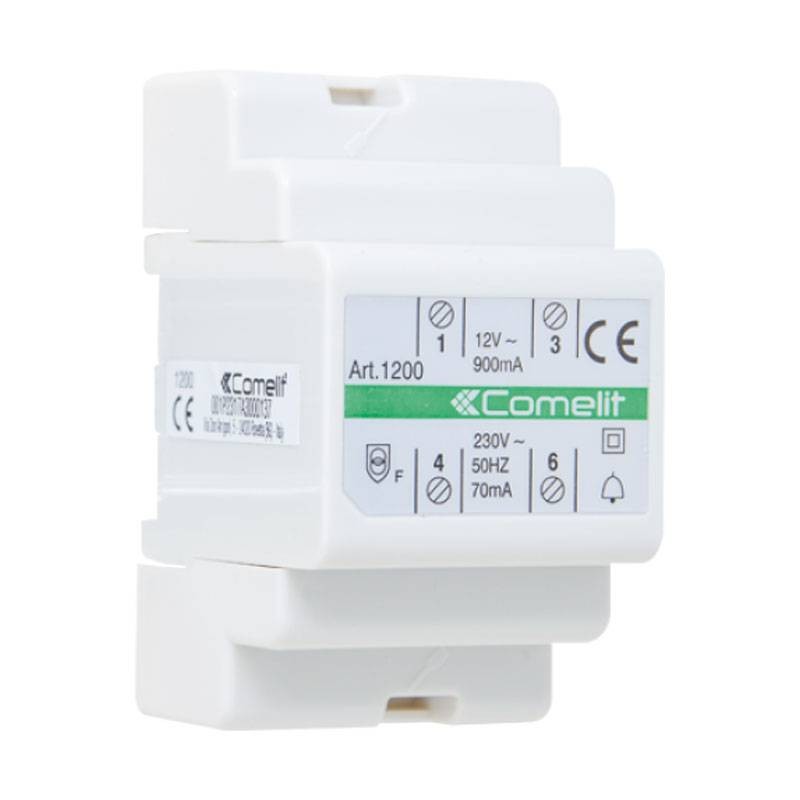

230VAC/12VAC/15VA transformer
The Comelit transformer is a reliable and safe device designed to convert voltage from 230V AC to 12V AC with a power rating of 15VA. Ideal for powering intercom and video intercom systems, it is compatible with various technologies, including Simplebus, VIP and traditional systems.
Comelit Transformer Technical Specifications
| Feature |
Description |
| Supply voltage |
230 VAC |
| Applicable to DIN rail |
Yes |
| Number of DIN modules |
3 |
| Max delivered current |
0,9 A |
General Data
| Feature |
Description |
| Height |
95 mm |
| Width |
53 mm |
| Depth |
65 mm |
| Coating material type |
Plastic |
| Operating temperature |
-5/+40 degrees |
Compatibility
| System |
Compatibility |
| Simplebus 2 audio/video system |
Yes |
| Audio/video system Building Kit |
Yes |
| Simplebus 2 audio/video system |
Yes |
| Simplebus 1 audio system |
Yes |
| Vip system |
Yes |
| Audio/video kit system |
Yes |
| Traditional |
Yes |
| Simplified system |
Yes |
