Siemens 4P 25A 10KA Circuit Breaker 4M D 5SL44258

Siemens
Siemens
SIE 5SL44258 4001869441818

Siemens 5SL4 circuit breaker with the following characteristics:



  • Number of poles: 4
  • Rated current: 25 amps
  • Rated short-circuit capacity: 10 kA
  • Tripping curve: Curve D (to protect circuits with strongly inductive loads or high capacitance)
  • Number of modules: 4



It is designed to protect circuits with strongly inductive loads or high capacitances, such as industrial motors and transformers. It occupies 4 modules in electrical panels.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Siemens 4P 25A 10KA Circuit Breaker 4M D 5SL44258
€73.91
€73.91

€73.91
Tax included
Calculate shipping cost
Items Available: 43
Further availability of the manufacturer
€73.91

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

The 4-pole D-curve circuit breaker is designed to protect circuits with strongly inductive loads or high capacitances, such as industrial motors and transformers. Due to its ability to trip when the current exceeds 10 to 20 times the rated current, it prevents unwanted trips during current peaks. It has a short-circuit rating of 10 kA, ensuring safety even during electrical faults.



The trip curve D of circuit breakers is designed to protect circuits with strongly inductive loads or high capacitances, such as transformers or heavy industrial machinery.



This curve trips when the current exceeds 10 to 20 times the rated current, making it suitable for handling extremely high inrush currents, typical in industrial devices that require large amounts of power at startup.



D-curve circuit breakers prevent unwanted tripping caused by current spikes during operation of such equipment.



Features:

  • Number of poles: 4
  • Class of trip characteristic D
  • Mechanical service life (switching cycles) typ. 10 000
  • Overvoltage category III
  • Pollution degree 2
  • Insulation voltage at maximum DC rating: 440V
  • Protection class: IP20, with conductors connected

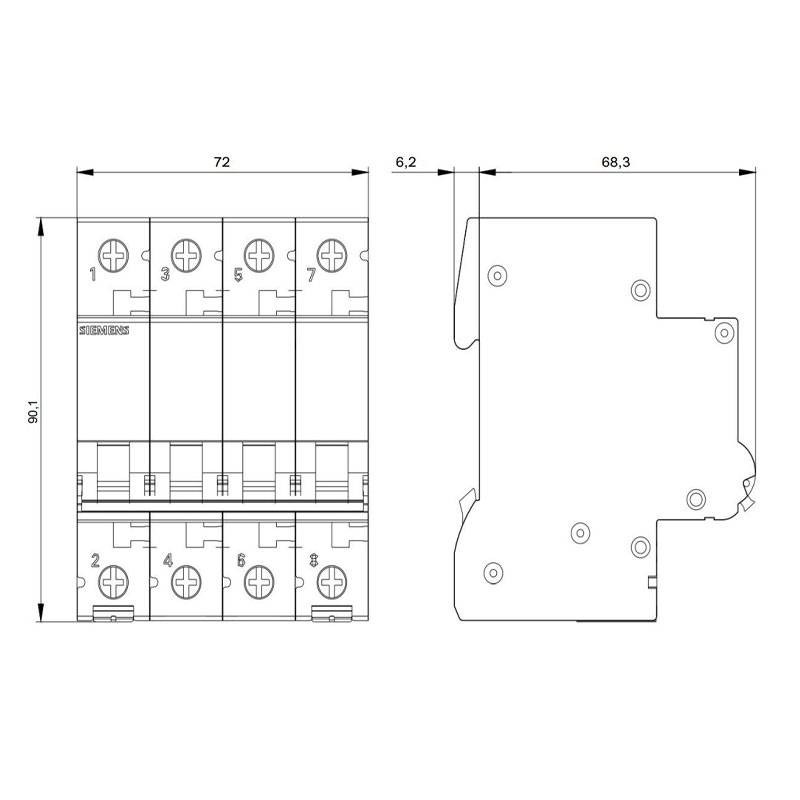

  • Height: 90mm
  • Width: 72 mm
  • Depth 76 mm
  • Number of width modular units 4
  • Ambient temperature during operation: -25/+55 degrees
  • Ambient temperature during storage: -40/+75 degrees

There are no reviews

Data sheet

Voltage:
400VAC
Modules:
4
Poles:
4P
Curve:
D
Breaking capacity:
10KA
Amps:
25A
Circuit Protections:
Circuit breakers
