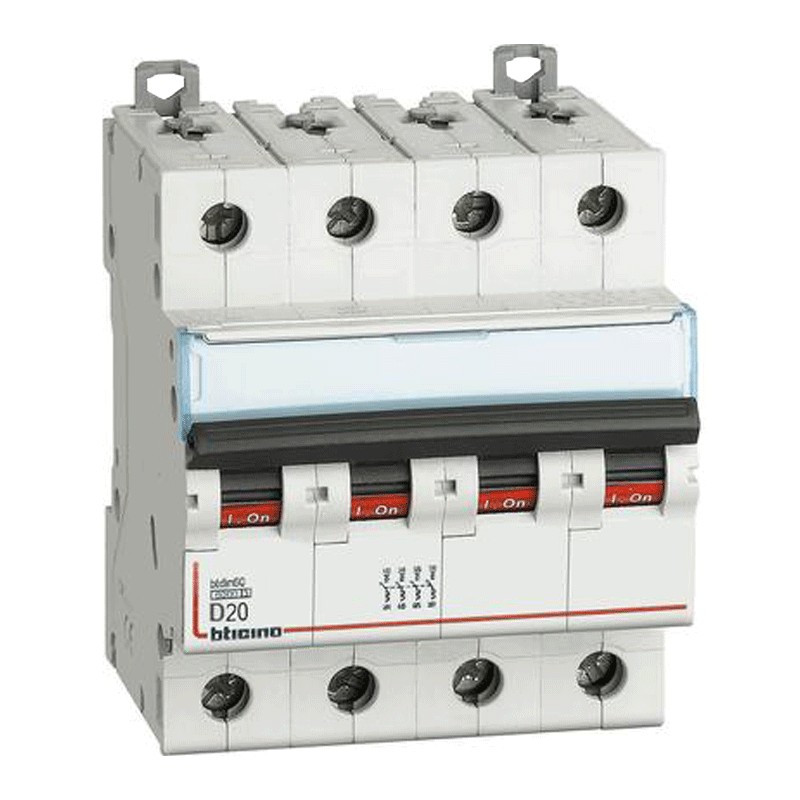

Bticino 20A Thermal-magnetic Circuit Breaker 4 Poles 6KA Curve D 4 Modules FN84D20
BTI FN84D20
8005543476994
Bticino thermal-magnetic circuit breaker:
- Current In 20A
- 4 Poles
- Breaking capacity Icn 6KA
- Tripping curve D
- 4 modules
€113.00
Items Available: 2
Frequently bought together
Curve D, trip threshold of 10 to 20 times In, for application of circuits with high inrush currents (motors, transformers, etc.).
A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.
Characteristics:
- Reference Standard IEC EN 60898-1
- Voltage 400Vac
- Degree of protection IP20
- Height 83mm
- Width 71.2mm
- Depth 76mm
- Maximum cable cross section 25/35mmq
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 4
- Poles: 4P
- Curve: D
- Breaking capacity: 6KA
- Amps: 20A
- Circuit Protections: Circuit breakers
