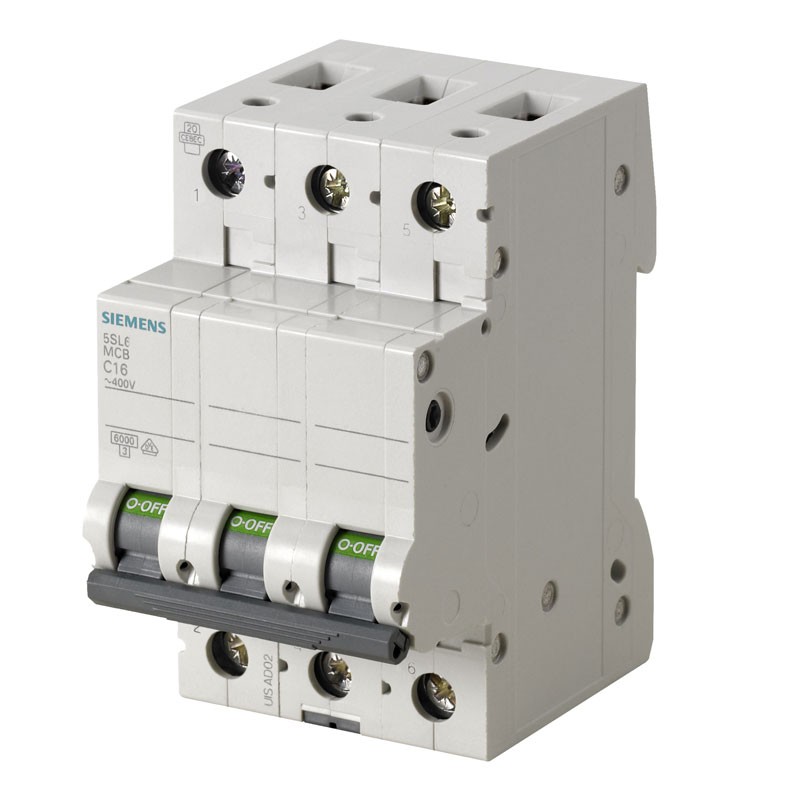

Siemens Magnetothermal Circuit Breaker 63A 3P 6KA Class C 3 Modules 5SL63637BB
SIE 5SL63637BB
4001869388823
Siemens Sentron Magnetothermal Circuit Breaker:
- Isolation voltage 440V
- Current 63A
- 3 Poles
- Breaking capacity 6KA
- Trip class: C
- 3 Modules
€50.42
Items Available: 21
: 3
Curve C can tolerate short-term overcurrents of up to five to ten times the rated current and is widely used in domestic systems.
A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.
Characteristics:
- Mechanical service life (switching cycles) / typ. 10 000
- Overvoltage category III
- Pollution degree 2
- Insulation voltage for multiphase operation / with AC / rated 440V
- AC voltage type
- Operating current / with AC / rated value 63A
- Supply voltage / with AC / rated value 400V
- Frequency of supply voltage 50Hz
- Degree of protection IP20, with conductors connected

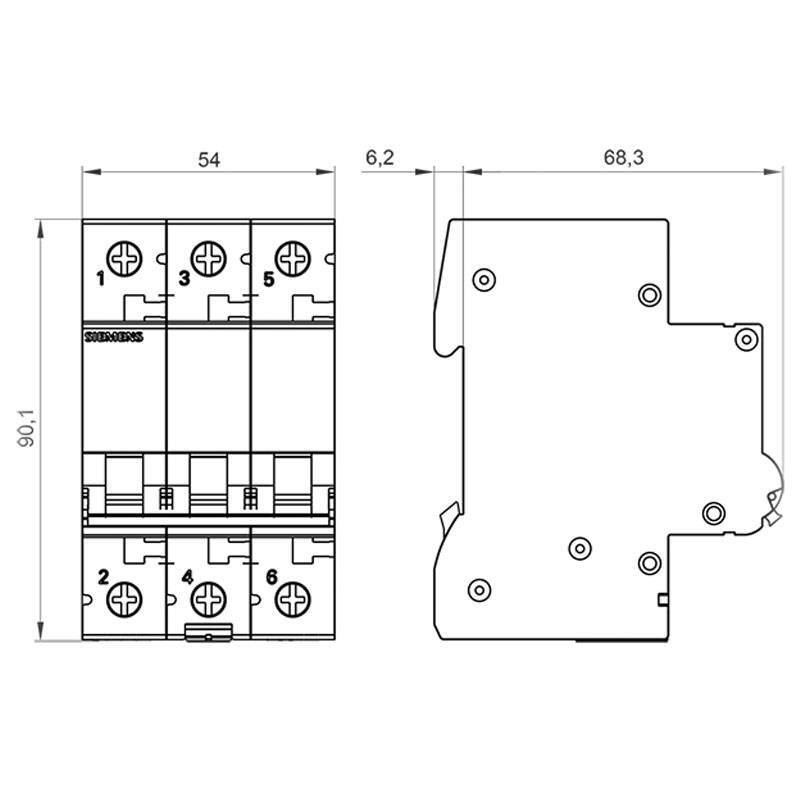

- Dimensions height 90 mm - width 54 mm - depth 76 mm
- Recessed depth 70 mm
- Number of width modular units 3
- Mounting position as desired
- Net weight 470 grams
- Influence of ambient temperature temporarily +55 °C, max. 95% relative humidity.
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 3
- Poles: 3P
- Curve: C
- Breaking capacity: 6KA
- Amps: 63A
- Circuit Protections: Circuit breakers
