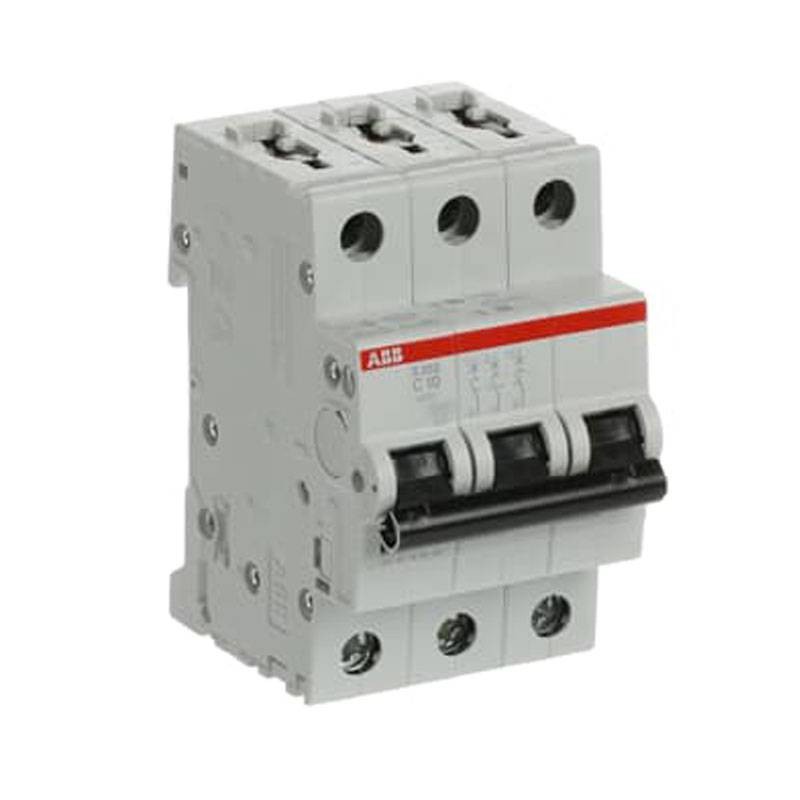

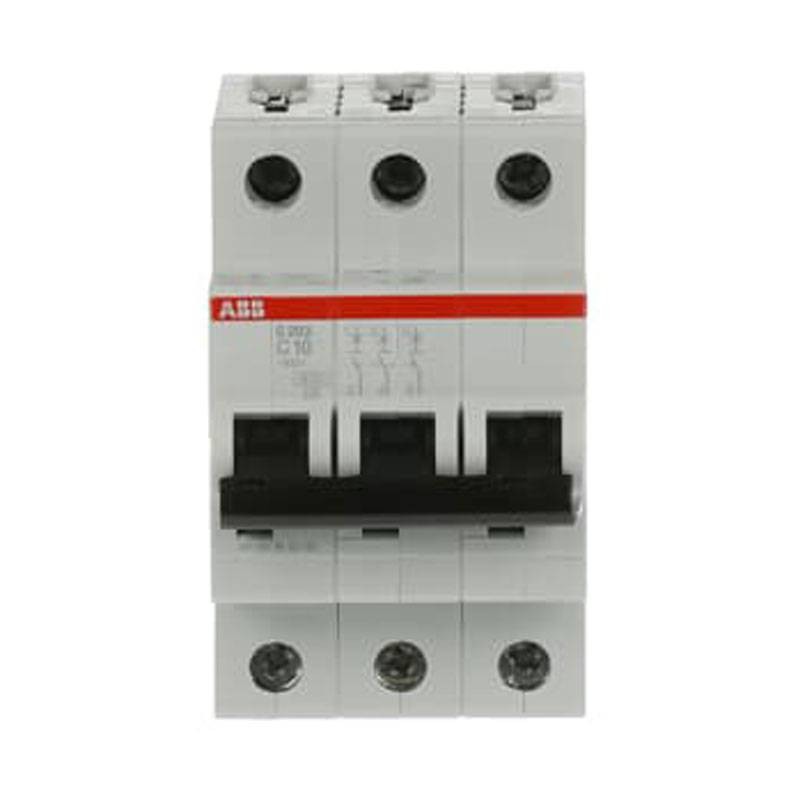

Abb circuit breaker 10A 3P 6kA curve C 3 Modules S467803

Abb
Abb
ABB S467803 4016779609111

Abb System pro M compact circuit breaker offers reliable protection against overloads and short circuits, ideal for residential, commercial and industrial applications, with the following features:

  • Rated current: 10 Amps

  • Number of poles: 3P

  • Breaking capacity: 6KA

  • Curve: C

  • Degree of protection: IP20/IP40

  • Number of Modules: 3

  • Mounting: DIN rail for easy installation

Do you have questions about this product or did you not find what you were looking for? Ask us!
Abb circuit breaker 10A 3P 6kA curve C 3 Modules S467803
€75.06
€75.06

€75.06
Tax included
Calculate shipping cost
Items Available: 17
Further availability of the manufacturer
€75.06

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Abb circuit breaker 10A 3P 6kA curve C 3 Modules

Designed to offer high reliability in protecting electrical circuits. Curve C ensures rapid tripping in the event of moderate overloads or short circuits, making it suitable for installations with moderate inductive loads, such as lighting, sockets and small electric motors.

The switch complies with international safety standards, providing protection in alternating (AC) and direct (DC) voltage systems.

Versatility of Application

Due to compliance with IEC-EN 60898-1 and IEC-EN 60947-2, the circuit breaker is suitable for use in:

  • Residential installations (protection of sockets and lighting circuits)

  • Commercial buildings (switchboards, offices and stores)

  • Industrial sector (protection of circuits with moderate loads)

In addition, it is compatible with DDA 200 series differential blocks, further improving protection against current leakage.

Intuitive Design and Installation

The switch features visual indication of contact position:

  • Red (ON) closed circuit

  • Green (OFF) open circuit

DIN-rail mounting facilitates installation in electrical panels, while the 2.8 Nm tightening torque ensures a secure connection.

The IP20/IP40 degree of protection ensures resistance against dust and accidental contact, making it suitable for environments with varying operating conditions.

Key Features

Feature Value
Rated current 10A
Number of poles 3P
Tripping curve C
Input voltage AC/DC
Operating frequency 50/60 Hz
Power loss 6,3 W
Energy limitation class 3
Overvoltage category III
Operating temperature range -25/+55 degrees
Mounting type DIN rail
Tightening torque 2.8 Nm
Degree of protection IP20/IP40


Dimensions

Feature Value
Width 52.5 mm
Height 88 mm
Depth 69 mm
Width in DIN modules 3

There are no reviews

Data sheet

Modules:
3
Poles:
3P
Curve:
C
Breaking capacity:
6KA
Amps:
10A
Circuit Protections:
Circuit breakers
