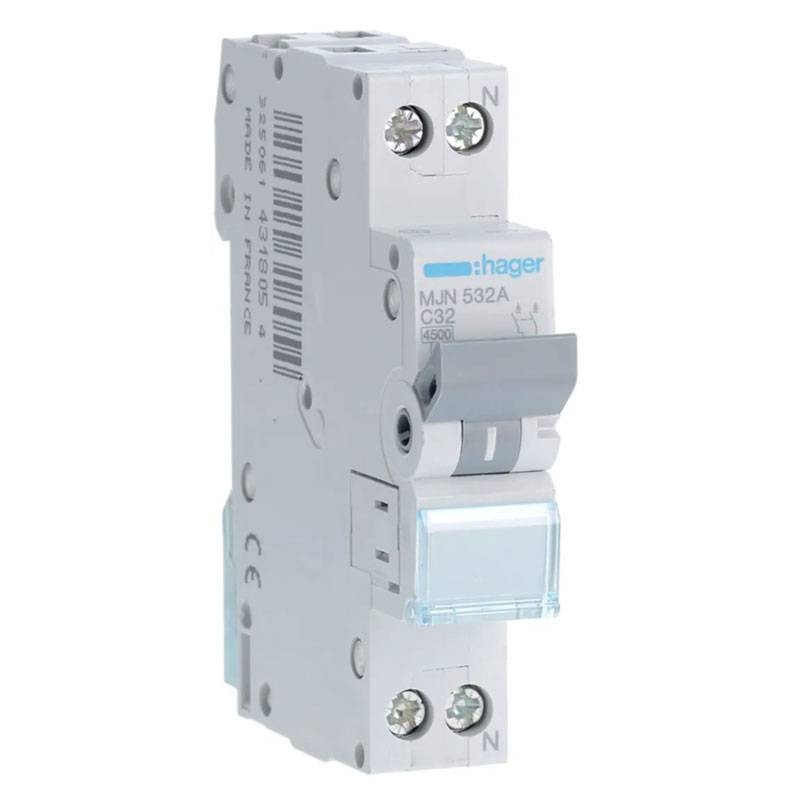

Hager 32A 1P+N 4.5KA Circuit Breaker C 1 Module MJN532A
HAG MJN532A
3250614318054
Hager Circuit Breaker:
- Rated current 32A
- Poles 1P+N
- Rated breaking capacity 4.5KA
- Curve C
- 1 Module
- Min./max. threshold value of thermal operation AC 1.13 - 1.45 A
- Degree of protection IP20
€8.63
Items Available: 16
: 10
Curve C, trip threshold 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. It is widely used in domestic systems, residential and functional buildings.
A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.
Characteristics:
- Operating temperature -25/+70 °C
- Altitude 2000 m
- Electrical life and number of cycles 1000
- Number of maneuvers 20000
- Output terminal cross-section with screws, for rigid conductors 1 - 25 mm²
- Output terminals with screws for flexible conductors 1 - 16 mm²
- Type of connector Screw terminal
- Dimensions Height 84.70 mm - Width 17.50 mm - Depth 70 mm
- Rated operating voltage AC 230 - 240 V
- Type of AC supply voltage
- Rated insulation voltage Ui 500 V
- Rated impulse withstand voltage Uimp 4000 V
- Maximum operating voltage 253 V
- Overvoltage category according to IEC60947-1 3
- Frequency 50/60 Hz
Data sheet
- Modules: 1
- Poles: 1P+N
- Curve: C
- Breaking capacity: 4.5KA
- Amps: 32A
- Circuit Protections: Circuit breakers
