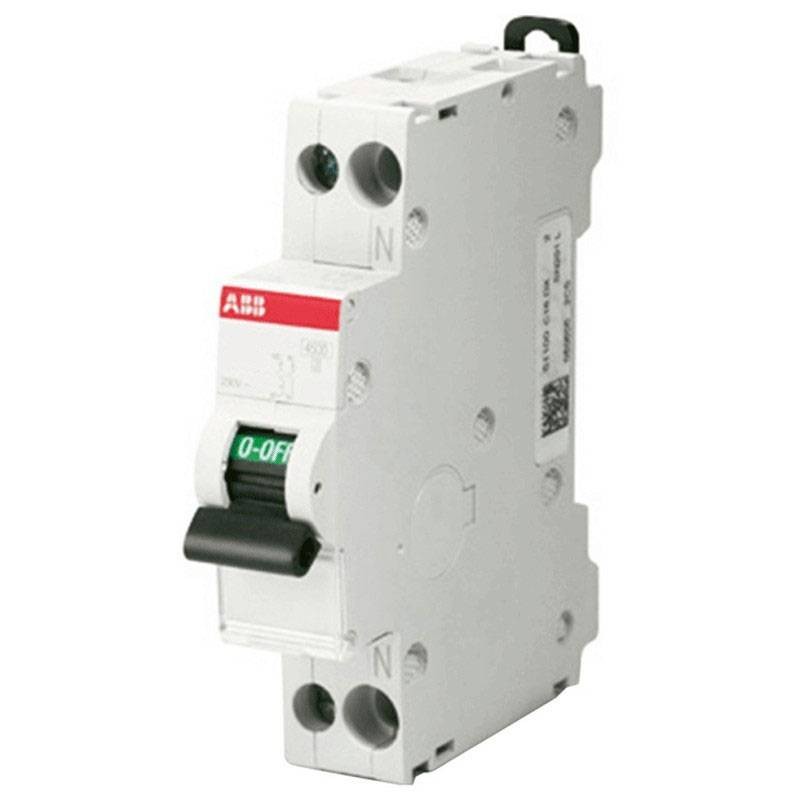

Abb Circuit breaker SN201 32A 1P+N 6KA C 1 Module SN201C32
ABB SN201C32
8012542356615
Abb SN201 circuit breaker:
- 32A rated current
- Poles: 1P+N
- Rated short-circuit capacity (230 V) 6 kA
- Tripping characteristic curve C
- 1 Module
- Rated voltage 230V
€41.94
Items Available: 11
: 2
SN201 circuit breakers realize protection against overloads and short circuits in a single module.
Curve C can tolerate short-duration overcurrents up to five to ten times the rated current and is widely used in domestic installations.
A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.
Characteristics:
- Reference standards: IEC/EN 60898-1
- Rated operating voltage: according to IEC 60898-1 230 V
- Rated insulation voltage (Ui): according to IEC/EN 60664-1 500 V
- Impulse withstand voltage (Uimp): 4 kV
- Dielectric proof voltage: 2 kV
- Rated primary impulse withstand voltage: 4 kV
- Rated short-circuit withstand rating: (230 V) 6 kA
- Rated extreme short-circuit capacity (Icu): (230 V) 10 kA
- Rated service short-circuit capacity (Ics): (230 V AC) 6 kA
- Rated frequency (f): 50/60 Hz
- Power loss: 6.7 W
- Contact position indication: Red ON / Green OFF
- Energy limitation class: 3
- Electrical resistance: 10000 cycle(s)
- Mechanical resistance: 20000 cycle(s)
- Number of protected poles: 1
- Number of poles: 1+N
- Overvoltage Category: III
- Position of neutral terminals: Right
- Tightening torque: 1.2 N-m
- Connection capacity: Flexible 1 10 mm² - Rigid 1 16 mm².
There are no reviews
Data sheet
- Voltage: 230VAC
- Modules: 1
- Poles: 1P+N
- Curve: C
- Breaking capacity: 6KA
- Amps: 32A
- Circuit Protections: Circuit breakers
