Beghelli LED Batten light 8W 3000K 573mm with switch 74042
BEG 74042
8002219813350
Beghelli Batten light LED RegLED Eco 8W, 3000K warm light, length 573 mm, with integrated switch. Ideal as an under-cabinet lamp for kitchens, offices, and work areas. Efficiency 95 lm/W.
-
Power: 8 Watts
-
Length: 573 mm
-
Colour temperature: 3000 K (warm light)
-
Efficiency: 95 lm/W
-
CRI > 80
-
Insulation class II
-
Complete with integrated switch
-
Power supply 230 V AC
-
Colour stability SDCM3
-
Ideal as under-cabinet
-
Slim design: 30 × 22 mm
€13.73
Items Available: 101
Batten light LED Beghelli RegLED Eco under-cabinet for uniform and comfortable lighting
The Batten light LED Beghelli 8W is designed to offer practical, uniform, and low-consumption lighting, ideal for under-cabinet installations in kitchens, home workshops, offices, or work areas. The warm 3000K light creates a welcoming and relaxing atmosphere while ensuring proper visibility for daily activities.
The slim and compact structure allows it to be easily integrated into any environment without being intrusive, improving the ergonomics of spaces and enhancing the quality of local lighting.
High luminous efficiency and natural color rendering
With an efficiency of 95 lm/W, the reglette offers bright lighting with reduced consumption. The CRI > 80 ensures adequate color fidelity for kitchens, domestic and professional environments, guaranteeing realistic colors and comfortable light. The color stability classified as SDCM3 ensures consistent color uniformity throughout the lifespan of the device, avoiding perceptible variations over time.

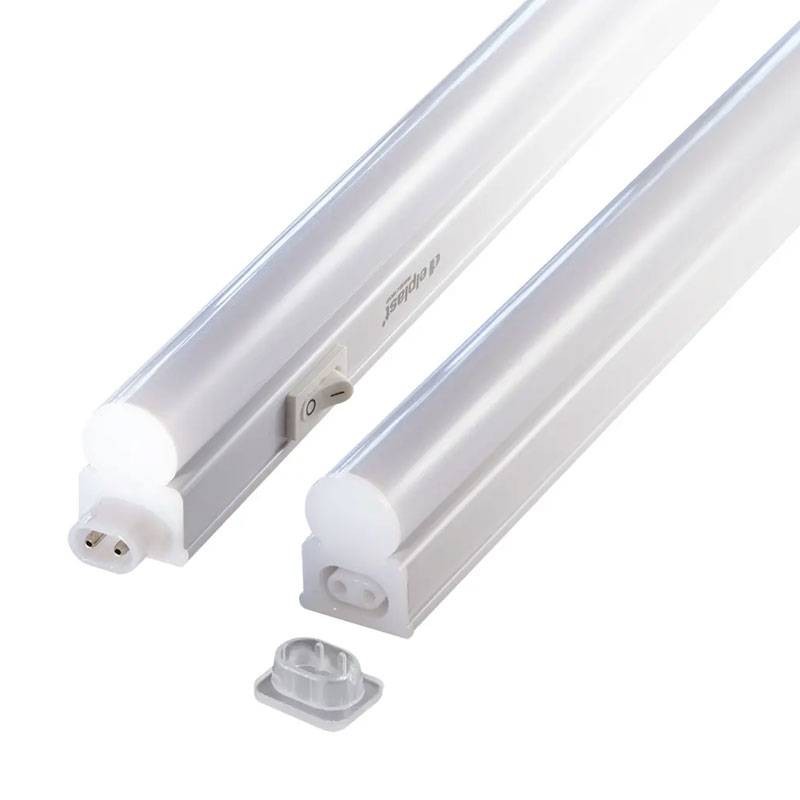

Integrated switch and ease of use
The presence of the ON/OFF switch on the body of the reglette allows direct control of the light, without having to intervene on the system controls. It is a particularly useful solution:
-
as kitchen light
-
for cabinets and shelves
-
for workbenches
-
for desks and workstations
The operation is immediate, with no warm-up times or flickering
Direct power supply and electrical safety
The Batten light is powered directly at 230 Vac and uses an internal ballast for constant current LED, which guarantees:
-
greater luminous stability
-
extended lifespan
-
protection from overvoltages and network fluctuations
The insulation class II offers an additional level of safety, allowing installation without the need for grounding
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Part no. | 74042 |
| Power consumption | 8 W |
| Type of power supply voltage | AC |
| Power supply voltage | 230 V AC |
| Power supply voltage range | 207 V ÷ 253 V |
| Ambient temperature | -20 °C ÷ +40 °C |
| Insulation class | II |
| CCT – Light tone | 3000 K |
| Color stability | SDCM3 |
| CRI – Color rendering | > 80 |
| Ballast | For constant current LED |
| Efficiency | 95 lm/W |
| Frequency | 50–60 Hz |
| Incandescent wire resistance | 850 °C – 30 s |
| Device flux | 760 lm |
| Luminous fluxes (useful life) | L70B10: 71,000 h L70B50: 100,000 h L80B10: 45,000 h L80B20: 50,000 h L80B50: 62,000 h L90B10: 25,000 h L90B50: 29,500 h |
| Marks | CE |
| INSTALLATION AND APPLICATIONS | |
| Environment | Indoor |
| Application | Shelves and racks, Shops |

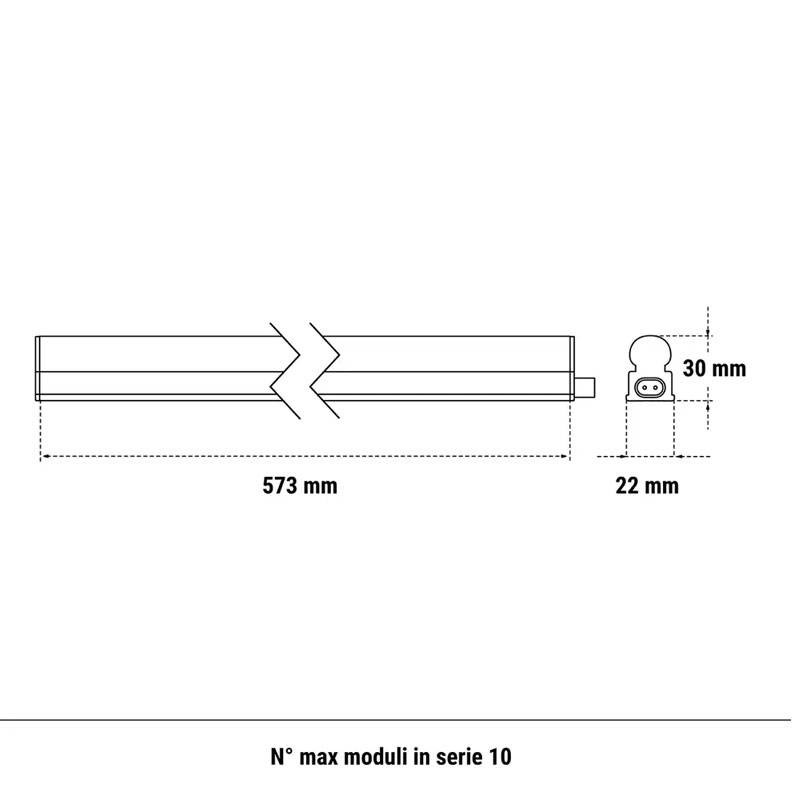

| MECHANICAL SPECIFICATIONS | |
| Height | 30 mm |
| Length | 573 mm |
| Width | 22 mm |
| Weight | 0.16 kg |
| Body color | White |
| IP protection grade | IP40 |
| IK protection grade | IK05 |
| CERTIFICATES AND STANDARDS | |
| Standards and certifications | UK SI 2021 No. 1095, EN 62471:2008, EN IEC 60598-1:2021, EN 60598-2-1:1989, EN IEC 63000:2018, EN 62493:2010, EN 61000-3-3:2013, REG. 2019/2020(EU), EN IEC 55015:2019 + A11:2020, EN IEC 61000-3-2:2019 |
There are no reviews
Data sheet
- Type: LED Batten lights
- Staining: Warm
- Degree of protection: IP40
- Length: 0,6 meters
- Colour temperatures: 3000 Kelvin
