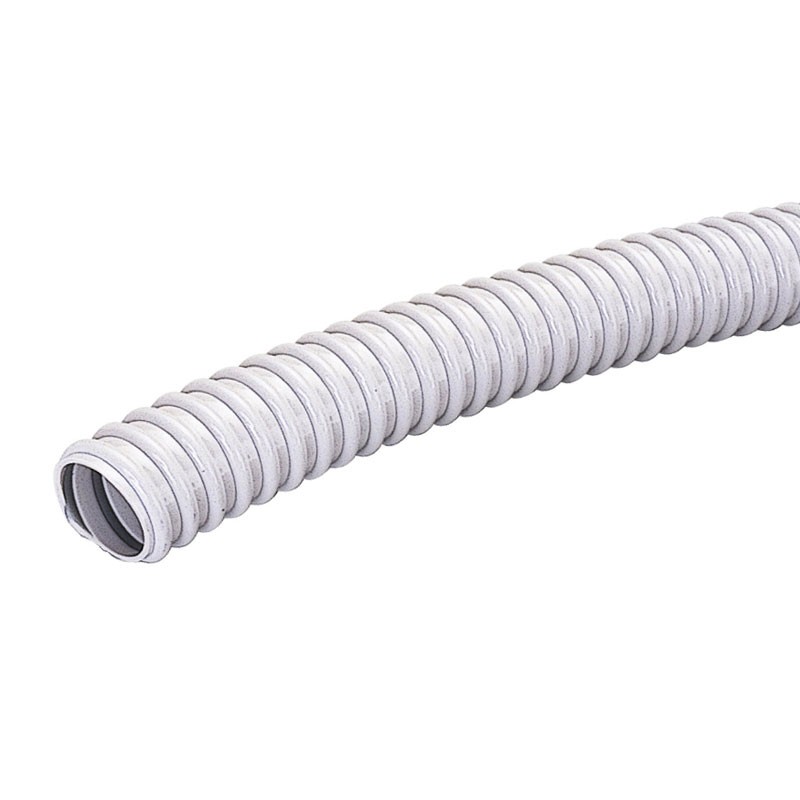

Tubifor grey spiral flexible conduit diameter 32mm TFGS032GS030
TUB TFGS032GS030
8024386117116
Tubifor spiral sheathing FLEXO series With reinforced spiral, smooth inner surface, with the following characteristics:
- Inner diameter: 32mm
- Outer diameter: 38mm
- Material: PVC
- Standards: EN 61386.1, EN 61386.23
- Compression resistance: Class 2 light (320 N over 5 cm at +23°C)
- Impact Resistance: Class 3 medium (2 joules at -5°C)
- Minimum Temperature: Class 1 (+5°C)
- Maximum Temperature: Class 1 (+60°C)
- Resistance to flame propagation: Self-extinguishing
- IP Degree of Protection: IP64 with ATRD fittings
- Electrical Insulation Resistance: greater than 100 mohm at 500V for 1 minute
- Dielectric Strength: greater than 2000V 50 Hz for 15 minutes
The selling price is intended per meter.

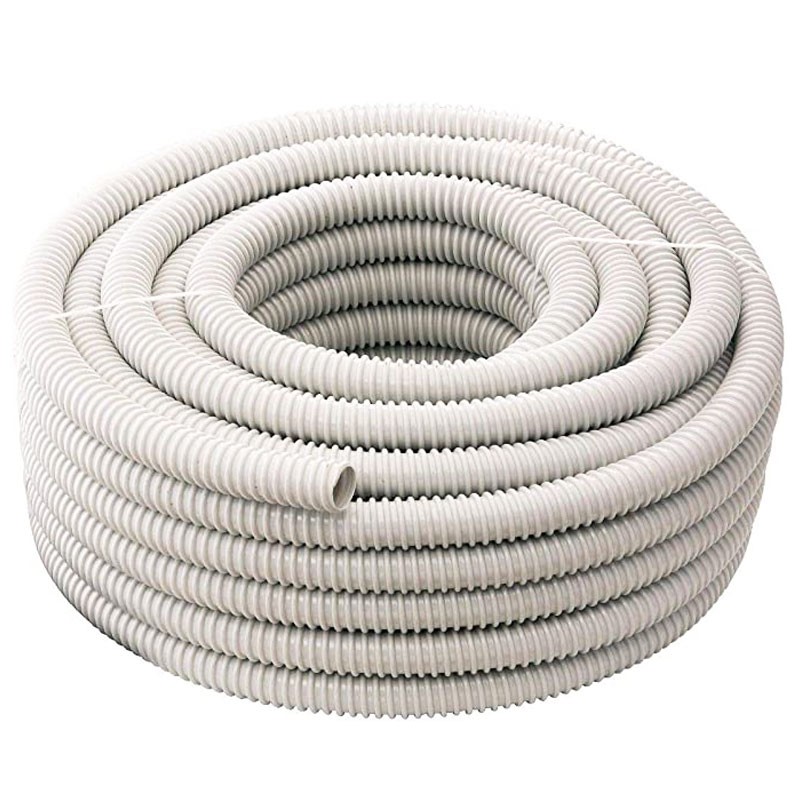

Minimum quantity that can be sold: hank of 30 meters.
Tubifor grey spiral flexible conduit diameter 32mm TFGS032GS030
€2.22
€2.22
Tax included
Tax included
Pay in installments with Klarna
Items Available: 10320
Spiralized vinyl sheathing is made of plasticized PVC and shock-resistant rigid PVC and is characterized by having a reinforced spiral and smooth inner surface.
It is classified as type 2311 according to EN 61386-1, EN 61386-23. It is resistant to flame propagation: self-extinguishing in less than 30" and has a crush strength of 320N.
Mode of use:
- Protection of conductors in fixed or mobile installations in civil and industrial applications aboard operating machinery, due to high flexibility and resistance to mineral oils
- In view on walls and ceilings
- Inside suspended ceilings
There are no reviews
Data sheet
- Diameter:
- 32mm
- Type:
- Spiral tubes
