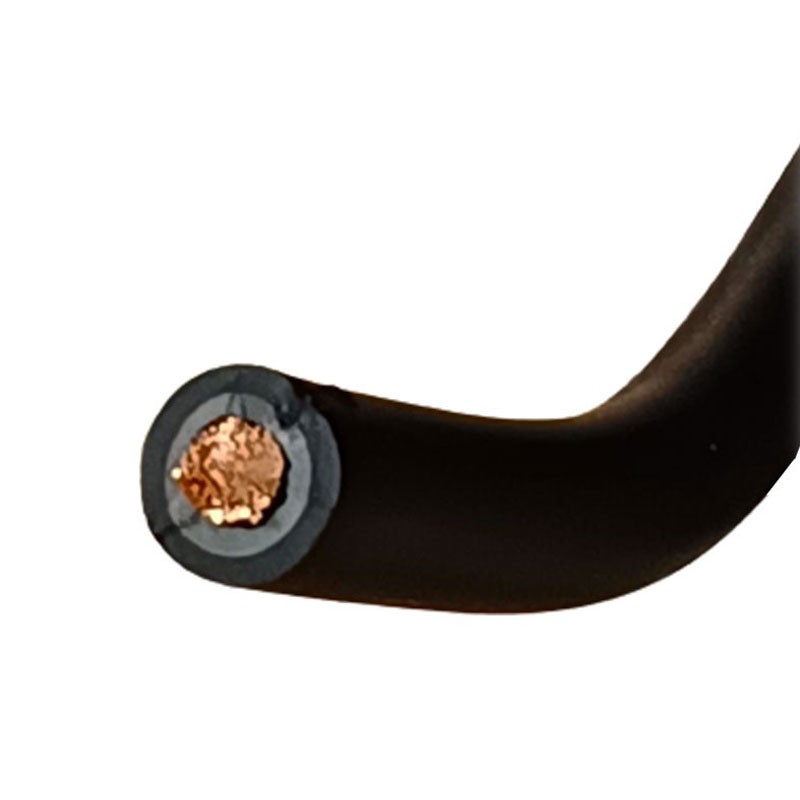

Polychloroprene sheathed cable H07RN-F 1x120 sq. mm 450/750 V black

Cavi
9X9 H07RNF1X120

H07RN-F polychloroprene sheathed cable, flexible, weatherproof and UV-resistant, designed to ensure reliability and safety in harsh environments, offering high flexibility, mechanical strength and protection from external agents, with the following characteristics:

  • Rated cross-section: 120 sq. mm

  • Conductor diameter: 13.8 mm

  • Insulation thickness: 1.8 mm

  • Sheath thickness: 3 mm

  • Cable outer diameter: 28.6mm

  • Max. electrical resistance at 20°C: 0.161 ohm/km

  • Current carrying capacity in free air: 260A

  • Voltage drop: 0.388 V/A-km

  • Color: Black

The selling price is intended per meter.

The producers of our cables are:

  • Baldassari cavi
  • Icel
  • La Triveneta
  • Prysmian
The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.
Do you have questions about this product or did you not find what you were looking for? Ask us!
Polychloroprene sheathed cable H07RN-F 1x120 sq. mm 450/750 V black
€18.40
€18.40

€18.40
Tax included
Calculate shipping cost
Items Available: 1750
Further availability of the manufacturer
€18.40

Buy it within and receive it from Monday, 22 December
Two-year warranty
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

H07RN-F cable: maximum flexibility and safety

H07RN-F sheathed polychloroprene cable is designed to meet the needs of installation in extreme conditions. The flexible formation of the class 5 red copper conductor ensures easy handling and ease of installation, while the EI4 rubber insulation provides high electrical safety and thermal insulation even under temperature and humidity variations.

Durable polychloroprene sheathed cable for mobile and fixed use

Abrasion- and chemical-resistant polychloroprene sheathing

Rugged, weather-resistant polychloroprene sheathing (AD6 classification) provides an effective barrier against abrasion, crushing, tearing, and chemical attack such as mineral oils and greases. It is particularly suitable for industrial and agricultural environments, construction sites and facilities subjected to mechanical stress and adverse weathering.

Ideal for mobile and fixed deployment in harsh environments

Ideal for mobile and fixed deployment in dry, damp or wet environments, both indoors and outdoors. Can be used to power industrial and agricultural machinery, power tools, lifting equipment, temporary construction sites and in protected installations such as pipelines and closed systems with voltages up to 1000V AC or 750V DC to ground.

Ease and safety of laying

This cable offers extreme ease of laying due to its flexibility. The minimum recommended bending radius is 6 times the diameter for mobile laying and 4 times for fixed laying. It also withstands temperatures from -40°C (without mechanical stress) to +60°C operating temperature, with a maximum short circuit temperature of 200°C.

Main applications of H07RN-F 1x120 sq mm cable:

  • Industrial electrical machines and tools

  • Agricultural electrical installations

  • Temporary installations at construction sites

  • Industrial environments subject to high stress

  • Mobile and fixed installations, even in the presence of water or moisture

Technical Characteristics Cable H07RN-F

FeatureValue
Rated section 120 sq. mm.
Conductor material Red copper, flexible (class 5)
Insulation EI4 rubber, thickness 1.8 mm
Outer sheath Polychloroprene (neoprene), thickness 3 mm
Conductor diameter 13.8 mm
Cable outer diameter 28.6 mm
Rated voltage Uo/U 450/750V ac (protected laying up to 0.6/1kV)
Operating temperature range -40°C to +60°C (minimum laying -25°C)
Max short-circuit temperature 200°C
Recommended minimum bending radius Mobile laying: 6 times diameter
Fixed laying: 4 times diameter
Maximum recommended tensile stress Mobile lay: 15 N/mmq
Fixed lay: 50 N/mmq
Maximum electrical resistance at 20°C 0.161 Ω/km
Rated current (air 30°C) Mobile laying: 260A
Fixed laying protected: 366A
Voltage drop 0.388 V/A-km
Sheath color Black

There are no reviews

Data sheet

Colour:
Black
Diameter:
28,6mm
Cross-Section:
120mmq
With yellow/green:
No
Number of cables:
1
