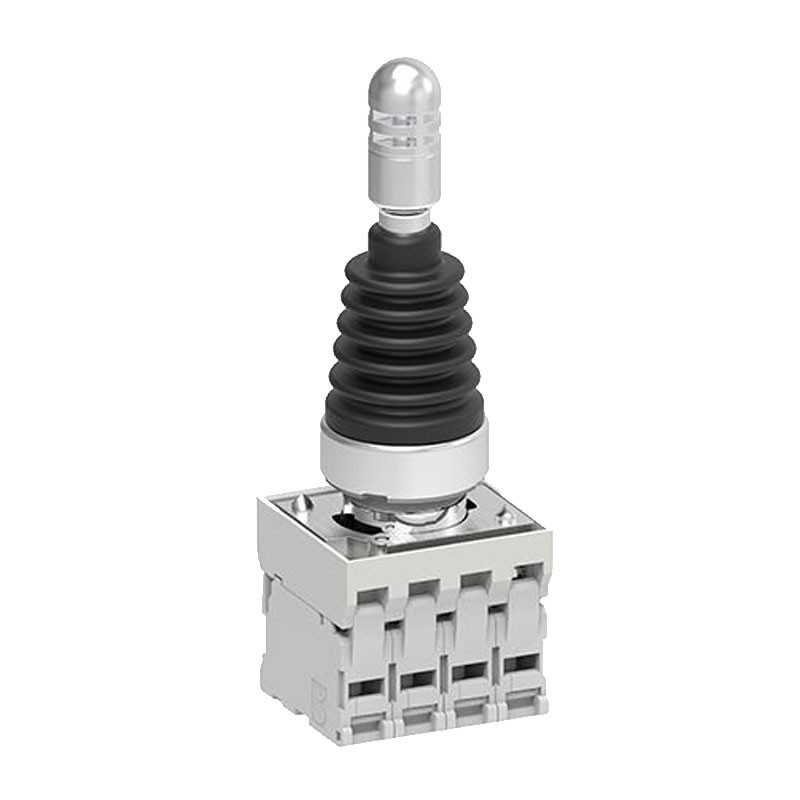

Lovato Platinum 4-ways lever manipulator without lock LPSJ400
LOV LPSJ400
8013975297643
Lovato Platinum Joystick Lever Manipulator:
- 4 ways without mechanical lock
- Metal diameter 22 mm
- Auxiliary contacts 4NA
- Complete with contact
- Instable
- Fixing screw with washer.
€53.60
Items Available: 6
Features:
- Material Zamak for metal parts, polyamide and polycarbonate for plastic parts. NBR rubber bellows
- Degree of protection (IEC) IP66, IP67 and IP69K
- IEC/EN 690V rated insulation voltage
- Conventional free air thermal current Ith IEC 10A
- Designation according to UL/CSA and IEC/EN 60947-5-1 A300 Q300
- Operating current AC15 12/24/48/120V 6A - 240V 3A
- Operating current DC13 12/24/48/125 0.55A 250V 0.27V
- Contact resistance m? ?20
- Mechanical life cycles 1000000
- Terminal tightening torque max Nm 1
- Screw connections Fixing screw with washer
- Fixing base With contacts included
- Degree of protection (UL) Type 1, 2, 3R, 4, 4X, 12, 12K
- Operating temperature min °C -25 - max °C +60
- Storage temperature min °C -40 - max °C +70
- Classification ETIM 8.0 EC000632 - Control switch, joystick.
There are no reviews
Data sheet
- Type: Joystick
- Degree of protection: IP67
