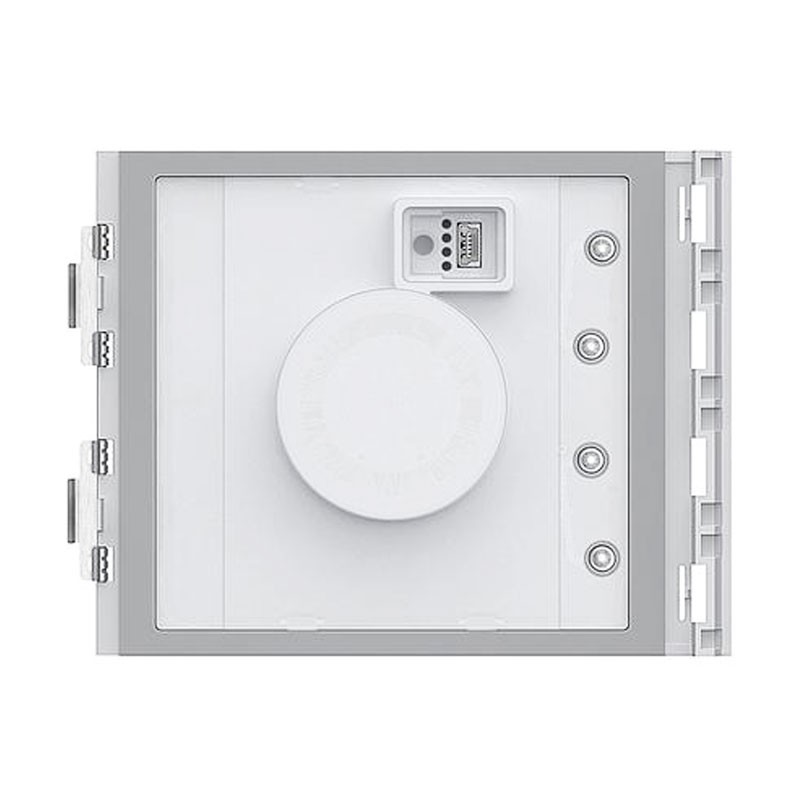

Bticino RFID badge reader module for lock opening 353200
BTI 353200
8005543457580
Bticino RFID badge reader module for lock opening through electronic key (badge) approach.
€208.14
Items Available: 3
: 2
Frequently bought together
Features:
- Manages up to 20000 electronic keys
- It is equipped with relays with contacts (C - NO - NC) and terminals (CP - P1 - P2) for connecting a local door opener button
- The electronic key for opening the lock is programmable via the module itself, or via PC by downloading the programming file to the module
- It has a button for programming reset and LEDs for visual indication of access status
- LEDs night backlighting
- To be completed with finishing front panel
- Connection to other modules via multi-cable provided
- The device can also be used stand alone with autonomous power supply and operation
- Configuration through physical configurators or through PC and TiSferaDesign software.
Related items:
- 353201 Sfera New Allmetal badge reader front panel (IK 08)
- 353202 Sfera New Allwhite badge reader front panel (IK 08)
- 353203 Sfera New Allstreet (IK 08) front panel badge reader
- 353205 Sfera Robur badge reader front (IK 09)
- 348200 Black electronic key
- 348201 Red electronic key
- 348202 Green electronic key
- 348203 Blue electronic key
- 348204 Orange electronic key
- 348205 Gray color electronic key
- 348206 Yellow electronic key
- 348208 Beige electronic key
Technical data:
- Power supply from SCS BUS: 18 27 Vdc
- Absorption in stand by (with backlighting LEDs off): 75 mA
- Absorption in stand by (with backlighting LEDs on): 85 mA
- Maximum absorption in operation: 105 mA
- Operating temperature: (-25) (+70) °C
- Degree of protection (assembled push-button panel) IP 54
- Modules 1
- Dimensions: Height 91mm - Width 115mm
- Connection SCS-BUS 2 WIRES
- System type 2 wires system
- IT Series Sphere
There are no reviews
Data sheet
- Type: Card Readers
