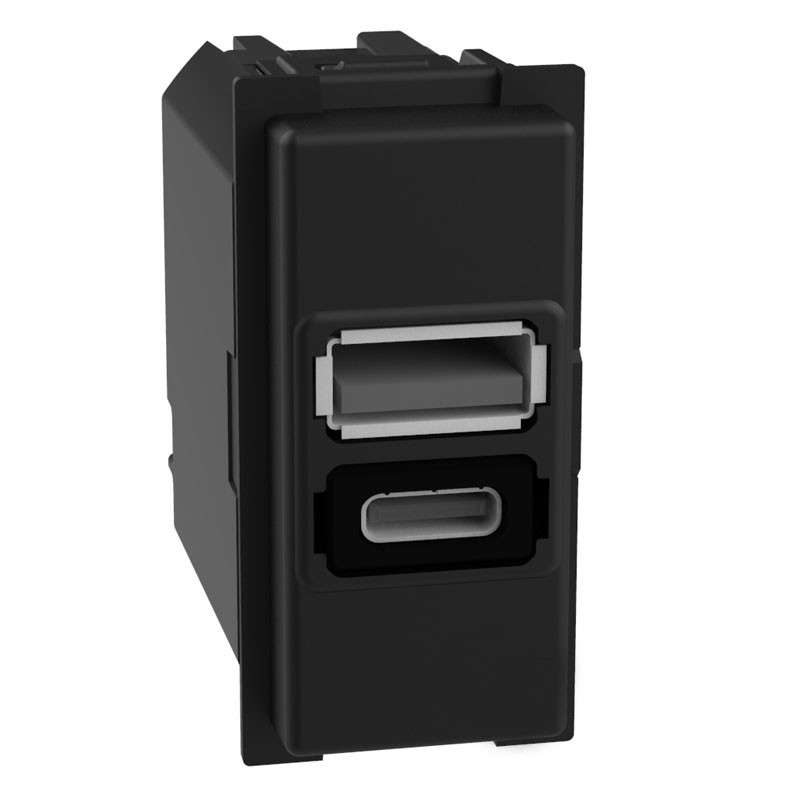

Bticino Living Now USB Socket Type A and C 1M K4191AC
BTI K4191AC
8005543622452
The Bticino Living Now USB Socket with Type A and Type C ports is a practical and compact solution for charging electronic devices, compatible with a wide range of products. With its advanced functionality, it allows charging a single device up to 15 watts or two devices at the same time.
-
USB ports: One Type A port and one Type C port for charging portable devices
-
Charging power: Up to 15 W for a single device or 7.5 W for each device when they are charged simultaneously
-
Output voltage: 5 Vdc for fast and safe charging
-
Compatibility: Ideal for charging phones, smartphones, MP3s, MP4s, speakers, powerbanks and more
-
Direct power supply: Operates on 100-240V, 50/60 Hz voltage
-
Compact size: 1 module, easy to install on Bticino Living Now sockets and holders
-
Compatible covers: KW13C - KM13C - KG13C
€22.21
Items Available: 491
: 104
Frequently bought together
Bticino Living Now USB Socket Type A and C 1M K4191AC
The Bticino Living Now USB Socket is compatible with a wide range of portable devices. It can be used to charge phones, tablets, speakers, game consoles, powerbanks and many other electronic devices. The Type A and Type C ports allow you to charge one device at a time or both simultaneously, as needed. With its compact design and the ability to mount it in a single module, the charger fits easily into any environment, whether home or professional.
Easy and immediate installation
This USB socket easily integrates into the Bticino Living Now series, allowing you to add a charging feature to your electrical installation without the need for separate adapters. With its direct power supply of 100-240V voltage, it can be easily and safely installed in any environment. The compact design and unique module make it ideal for small spaces such as offices, living rooms, bedrooms, and rooms where electronic devices are frequently used.
Efficient and safe charging
The USB Type A port is ideal for devices that require standard charging, while the USB Type C port supports fast recharges for compatible devices, such as newer smartphones and other advanced electronic devices. With up to 15 W charging power, the charger ensures a stable power flow, minimizing charging time without compromising safety.
Electrical and Mechanical Features
| Feature | Detail |
|---|---|
| Impact tests | IK 04 |
| Penetration by solids/liquids | IP 40 |
| Rated input voltage | 100-240 V~ |
| Nominal input frequency | 50/60 Hz |
| Maximum input current | 0,5A |
| Maximum output current | 3.0 A |
| Maximum output power | 15W |
| Rated output voltage | 5.0 V |
| Average power efficiency | 85% |
| Maximum standby power dissipation | < 0.1W |
| Off-charge consumption class and average efficiency level | Level VI |
| Protection class | II - Low voltage |
Climatic Characteristics
| Feature | Detail |
|---|---|
| Storage temperature | -20°C to +70°C |
| Operating temperature | 5°C to +40°C |
Characteristics of the Connection
| Feature | Detail |
|---|---|
| Clamp type | screw type |
| Clamp capacity | 1 x 2.5 mm² |
| Stripping length | 6 mm |
| Switch | MAX. 16 A |
Safety Features
| Feature | Detail |
|---|---|
| Self-extinguishing | 850°C/30 s for insulating parts that hold live parts in place |
| 650°C/30 s for other parts of insulating materials |
